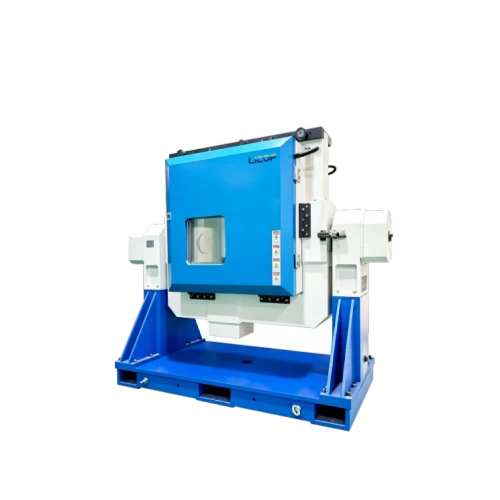

2FDT400WK Dual-Axis Thermal-Chamber Turntable
Stable performance
Reliable operation
Easy operation
Description
Key Features
- Stable performance
- Reliable operation
- Easy operation
Applications
- For FOG and IMU research, testing, production debugging, and maintenance calibration
- Rate and position functional testing
- Testing of other inertial components and devices
Product Introduction
Company 2FDT400WK dual-axis thermal-chamber turntable is a specialized precision instrument developed for FOG and IMU research, testing, production debugging, and maintenance calibration. Primarily used for rate and position functional testing, it features stable performance, reliable operation, easy operation, and low acquisition cost. The equipment can also be used for testing other inertial components and devices.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
2FDT400WK Dual-Axis Thermal-Chamber Turntable Performance Specifications
|
Parameter |
Specifications |
|
|
Rated Load (Kg) |
30 |
|
|
Table Size (mm) |
Ф400 |
|
|
Table Flatness (mm) |
0.02 |
|
|
Table Runout (mm) |
0.02 |
|
|
Dual-Axis Rotation Accuracy |
±3＂ |
|
|
Dual-Axis Position Accuracy |
Outer axis: ±3″, Inner axis: ±2″ |
|
|
Rate Accuracy and Stability |
ω≤1°/s |
2×10-3 (1° averaging) |
|
1°/s≤ω<10°/s |
2×10-4 (10° averaging) |
|
|
ω≥10°/s |
2×10-5 (360° averaging) |
|
|
Rate Range |
Inner axis: ±0.001°/s – ±800°/s |
|
|
Outer axis: ±0.001°/s – ±200°/s |
||
|
Acceleration |
Inner axis: > 400°/s² |
|
|
Outer axis: > 50°/s² |
||
|
Temperature Range (°C) |
-55 ~ +100 |
|
|
Internal Volume (L) |
Approx. 91 |
|
|
Internal Effective Dimensions (mm W × D × H) |
600×600×450 |
|
|
Chamber External Dimensions (mm W × D × H) |
Approx. 900 × 700 × 900 |
|
|
Unit (incl. Control Cabinet) Dimensions (mm W × D × H) |
Approx. 1800 × 1100 × 1900 |
|
