ODVA outdoor fiber optic connectors are waterproof and dustproof, suitable for use in harsh industrial environments, and comply with IP67 standards; the connector is designed with a sealed panel feed-through device, which is easy to fit into a sealed container.
ODVA outdoor fiber optic connectors are waterproof and dustproof, suitable for use in harsh industrial environments, and comply with IP67 standards; the connector is designed with a sealed panel feed-through device, which is easy to fit into a sealed container; the components are all optically tested to ensure high quality; single mode and multi-mode components are available, which can be mated with any type of common optical fiber; the combination of push-pull splices and bayonet mechanical latches facilitates easy installation and disassembly. The combination of push-pull splices and bayonet mechanical latches facilitates installation and disassembly. The current internal embedded LC, SC, MPO, etc., can be customized according to customer's needs.
Features
● A combination of push-pull inserts and bayonet mechanical latches for easy installation and removal operations
● Designed with a sealed panel feedthrough for easy loading into sealed containers;
● Currently internally embeddable with LC, SC, MPO, etc. and can be customized to meet customer needs
● Waterproof and dustproof, suitable for use in harsh industrial environments and meets IP67 standards
● Offers singlemode and multimode components that can be matched with any type of common fiber
Applications
● Smartcom substation, pull far communication base station
● Mobile outdoor base station equipment
● Mobile studios, TV relay trucks
● High-speed railroad, highway signal control
● Coal mines, oil wells, natural gas, etc.
● Geological exploration communication
● Emergency rescue fiber optic communication

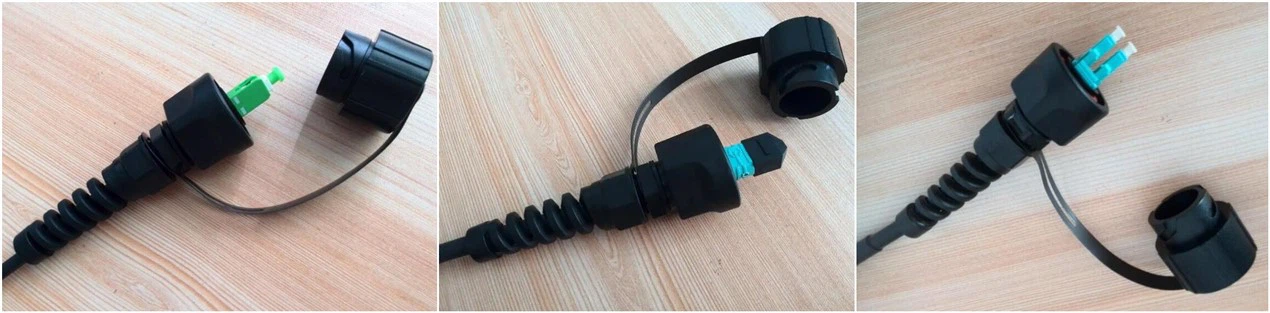

Pictures

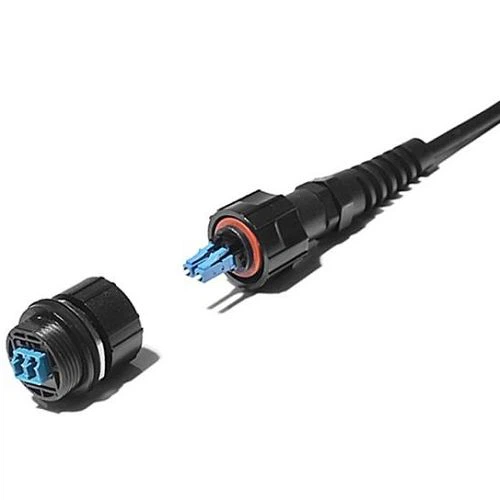

2-core ODVA-LC Type
Single core ODVA-LC Type
24-core ODVA-MPO Type

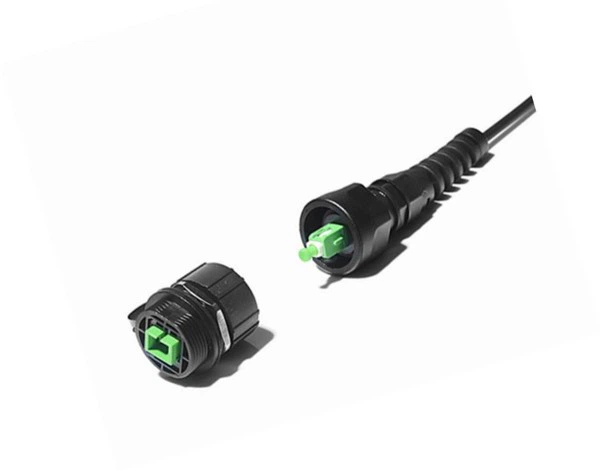

ODVA waterproof socket plug
Connector Parameter
Insertion loss
SC, LC
≤0.5dB
MPO
≤0.75dB
Return loss
Single mode
≥50dB
Mechanical properties
Plug
≤500N(Main cable)
Socket
≤30N(Branch cable)
Operating temperature
-40℃～85℃
Protection level
IP67
Cable Parameter
Cable diameter
5.0mm
Sheath material
LSZH , TPU, PVC
Length
2-2000m
Fiber type
9/125, 50/125, 62.5/125
Fiber optic cladding
900um Tight Fiber
Tensile strength
Short-term: 600N Permanent: 200N
Operating temperature
-40℃～85℃

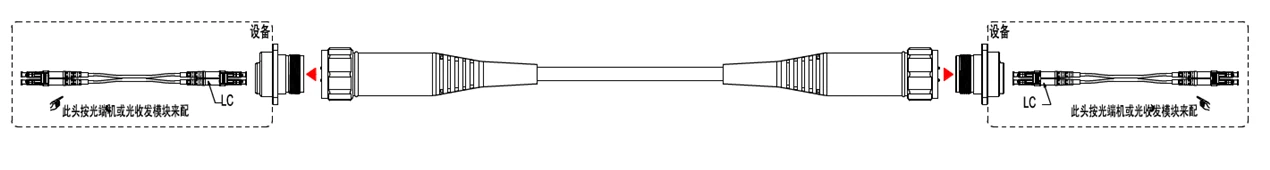

Examples of common connection schemes
Model naming
ODVA Outdoor Connector vs Other Connector Types
Feature
ODVA Outdoor Waterproof Connector
Standard SC/LC Connector
MPO Connector (non-ODVA)
Waterproof (IP67+)
Yes
No
No (unless housed in waterproof shell)
Outdoor Use
Excellent
Poor
Limited (needs housing)
Dustproof
Yes
No
No
UV Resistant
Yes
No
No
Durability
High
Low
Medium
Fiber Type Support
Single-mode & Multi-mode
Single-mode & Multi-mode
Typically Multi-fiber
Connector Types Inside
LC, SC, MPO (depending on version)
LC, SC
MPO only
Ease of Installation
Medium (field assembly sometimes)
Easy
Medium
Common Applications
FTTA, 5G, Military, CCTV, Oil & Gas
Indoor patch panels, data centers
Data centers, short distance trunk
When to Choose ODVA Outdoor Waterproof Connectors
Outdoor base station deployment
Fiber to the Antenna (FTTA) systems
Temporary outdoor installations (e.g., military or broadcast)
Industrial sensing and control
Remote surveillance
Technical Advantages
IP67-rated full-seal protection against dust, water, and UV radiation for long-term outdoor operation
Corrosion-resistant materials ideal for marine, coastal, or chemical plant environments
Push-pull + bayonet hybrid locking system improves vibration resistance and reduces failure rate in mobile installations
Support for armored fiber cable increases mechanical durability under tension and compression
Compatible with standard FTTA system architectures for 4G/5G and mobile tower integration
Why Choose Us
1. Built for Extreme Environments
Designed to meet IP67 waterproof and dustproof standards, our ODVA connectors are engineered to perform reliably in rain, dust, vibration, UV exposure, and extreme temperatures (–40°C to +85°C).
2. Versatile Compatibility
Supports a range of internal connector types including LC, SC, and MPO - compatible with both single-mode and multimode fibers, and adaptable to a wide variety of fiber networks and system architectures.
3. Fast Field Deployment
The combination of push-pull splicing and bayonet mechanical locking enables quick and secure assembly, ideal for emergency repairs, mobile base stations, and temporary field installations.
4. Proven Mechanical Durability
Tested for over 500N plug strength and high tensile performance on the main cable (up to 600N short-term), ensuring long-term stability even under physical stress.
5. Full Customization Support
We offer flexible options in core count, cable sheath material (LSZH, TPU, PVC), fiber length (2–2000m), and connector interface - all tailored to your project needs.
6. Trusted Across Industries
Our ODVA connectors are widely used in 5G FTTA deployments, smart grid substations, mobile media systems, mining sites, and oil & gas fields - wherever performance under pressure is mission-critical.
