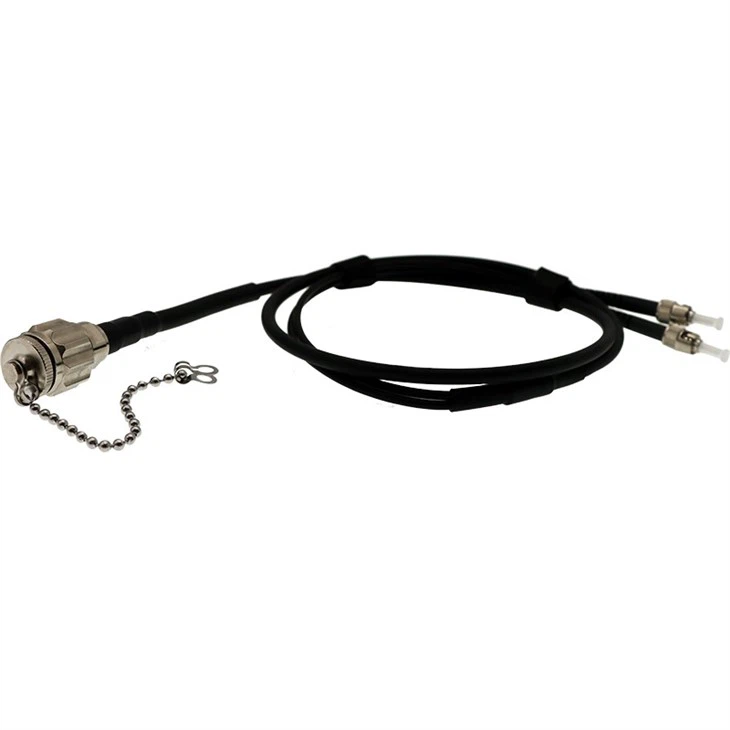

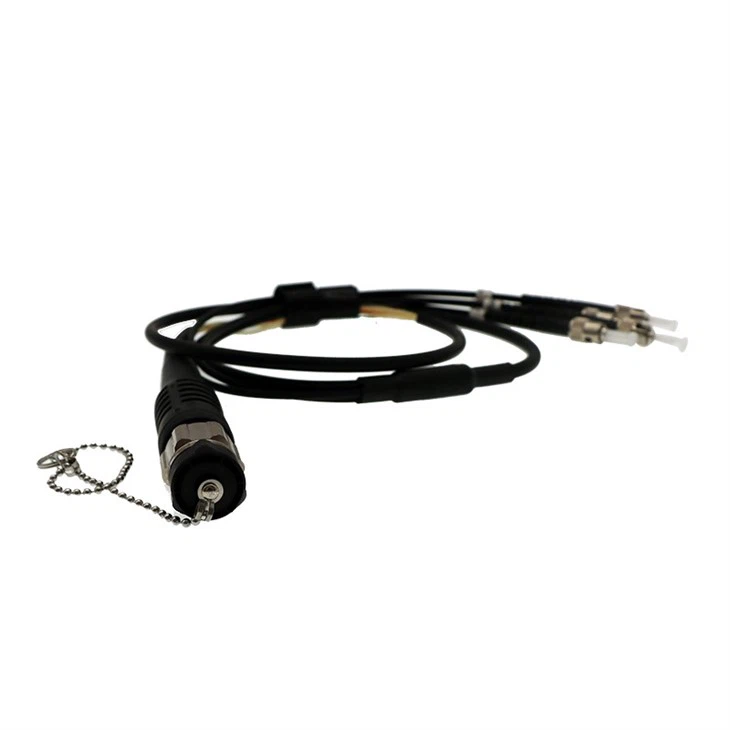

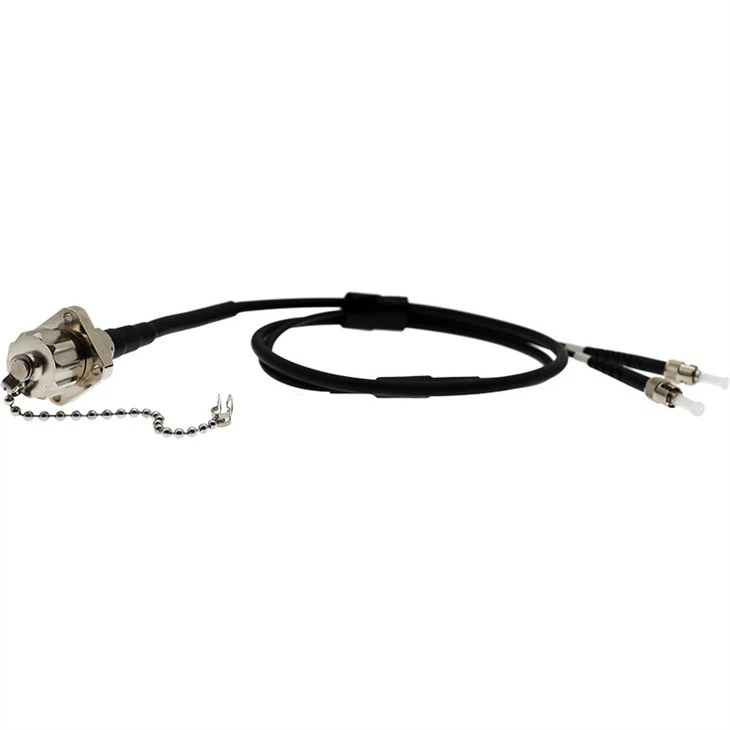

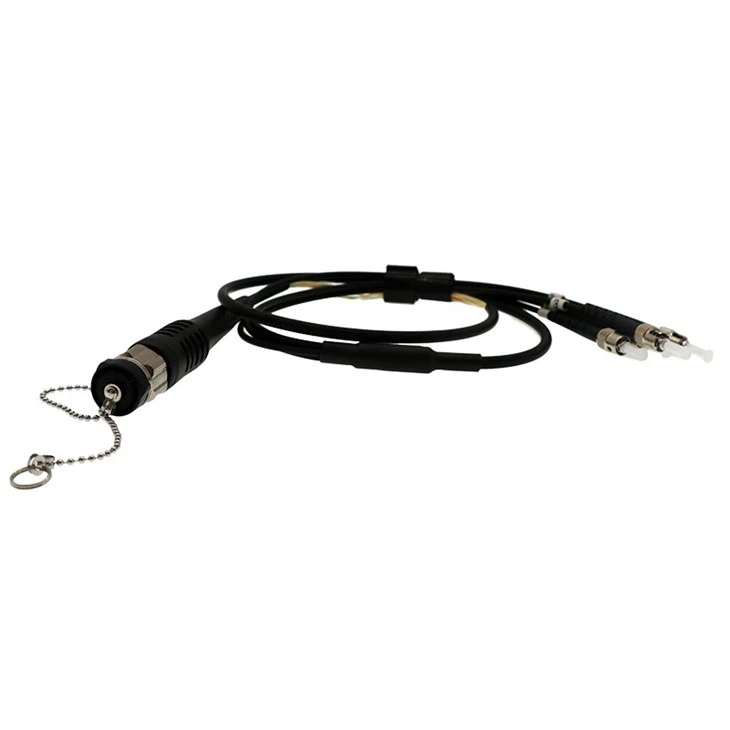

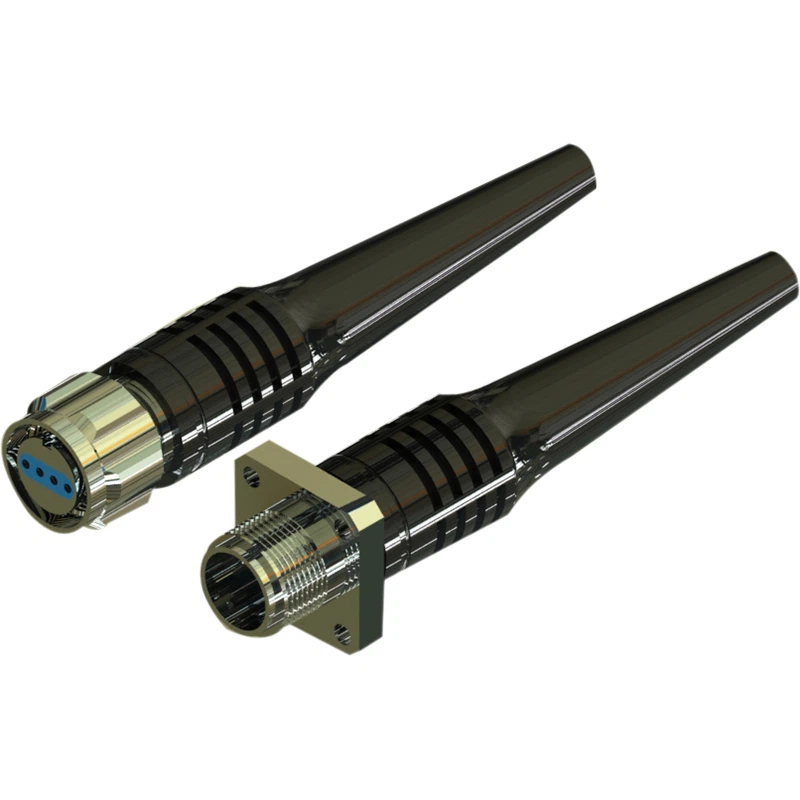

ODC Series Fiber Optic Connector



ODC outdoor fiber optic connectors have a rugged structure, reliable connection, waterproof and dustproof, etc., and are widely used for optical transmission connection in the harsh outdoor environment such as FTTA (fiber to the tower) of long-distance wireless base stations and mines, sensing and electric power. Suitable for outdoor environment, can withstand severe environmental conditions and harsh climate conditions.







• Thread locking mechanism for long-term reliable connections
• Guiding mechanism, which can be blindly inserted with one hand for simple and quick connection and installation
• Sealing design: water-proof, dust-proof, corrosion-proof, etc
• Compact shape, easy to operate, sturdy and durable
• Through-wall sealing design
• Reduces fusion connection and can be interconnected by direct butt plugging.





• Fiber optic communication use in harsh outdoor environments
• Oilfield and mining communication connections
• Long-distance wireless base stations
• Video surveillance systems
• Intelligent substation station communication;
• Railroad signal control use

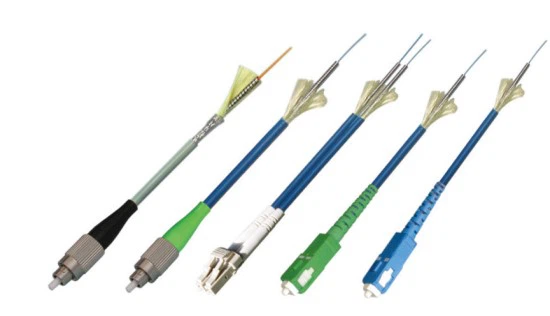

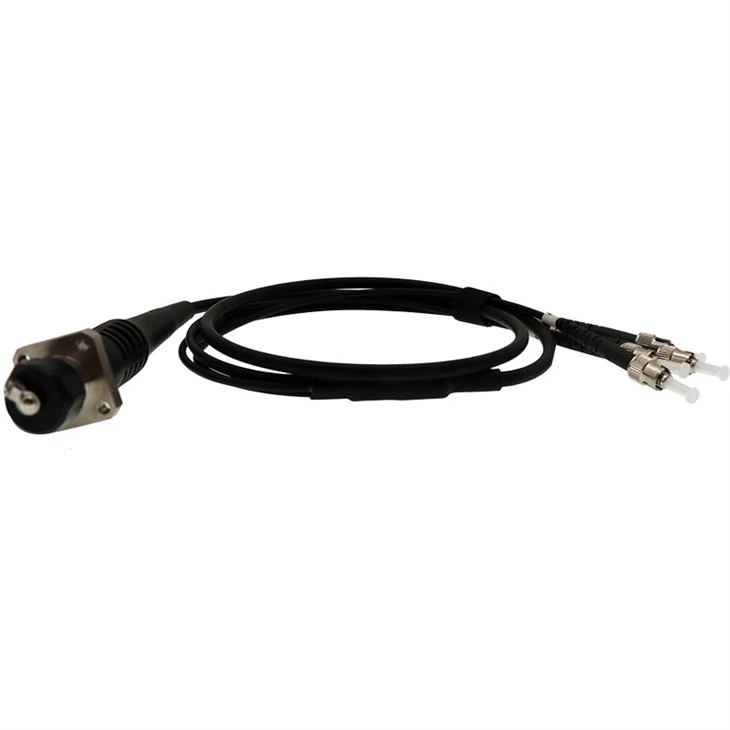

Common branch connector connectors

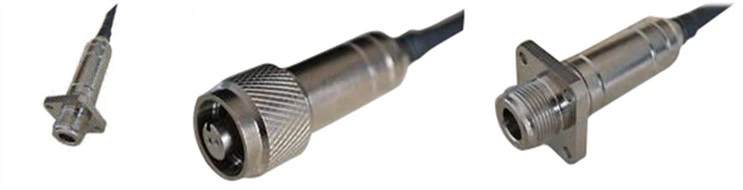

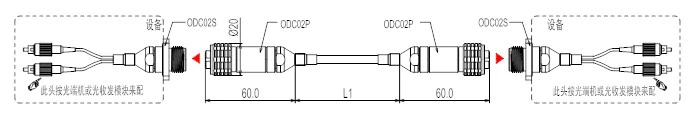

Examples of common connection schemes





Categories	Indicator requirements
Insertion loss	Single-mode ≦0.60dB
	Multimode ≦0.50dB
Return loss	Single-mode ≧50dB
Reciprocity	≦0.2dB
Operating temperature	-45℃ ~ 85℃
Mechanical properties	Plug pull≧500N
	Socket pull≧30N
Mechanical life	1000 times
Protection level	IP68









Feature	ODC Connector	ODVA Connector
Waterproofing	IP67/IP68	IP67
Fiber Connector Inside	Usually LC duplex	LC, SC, or MPO
Material	Often full metal or metal-polymer	Usually polymer or reinforced plastic
Locking Mechanism	Threaded/screw or push-pull	Bayonet or push-pull
Outdoor Performance	Excellent (military-grade available)	Excellent (industrial/commercial-grade)
UV/Corrosion Resistance	Yes	Yes
Mechanical Durability	Very High	High
Typical Applications	FTTA, military, oilfield, emergency systems	Telecom, security, FTTH, data backhaul
Cost	Higher	Medium





Compared To	Key Differences
Standard LC/SC	ODC has rugged shell, waterproof, UV and vibration resistant
OptiTap	OptiTap is tailored for FTTH drop cable, ODC is broader use in telecom/military
MPO/MTP (non-rugged)	MPO has high fiber count but not outdoor rugged; ODC is low-count but robust
ODVA	ODVA is more common in commercial FTTA; ODC often used in more demanding roles
Hardened SC/APC	Similar waterproofing, but ODC is more compact and can use LC connectors inside





• You need extreme durability for military, mining, or emergency fiber deployments
• The application requires high resistance to vibration, impact, and weather
• You want a fully metal or hybrid housing
• Field re-connection or frequent mating is expected
• You require IP68-rated, corrosion-resistant performance in remote locations







1. In-House R&D and Manufacturing
We own our factory and manage everything from design to production-ensuring consistent quality, quick delivery, and cost-effective customization.

2. Ruggedized for the Toughest Environments
With metal or hybrid housings and full IP68 protection, our ODC connectors are trusted in defense, energy, transportation, and emergency communication sectors.

3. Trusted by Major Industry Clients
Our products are deployed by institutions such as the Naval University of Engineering, China Shipbuilding Industry Corporation, and FiberHome Technology.

4. Technical Leadership
Our R&D engineers come from top telecom and optical sensing companies and maintain ongoing partnerships with universities such as Huazhong University of Science and Technology and the Chinese Academy of Sciences.

5. Custom-Built for Critical Applications
Whether it's armored cables, high-vibration environments, or custom fiber configurations, we provide ODC solutions tailored to your needs.
