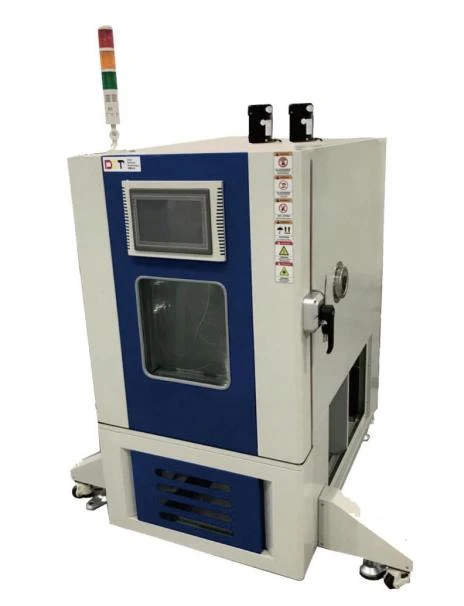

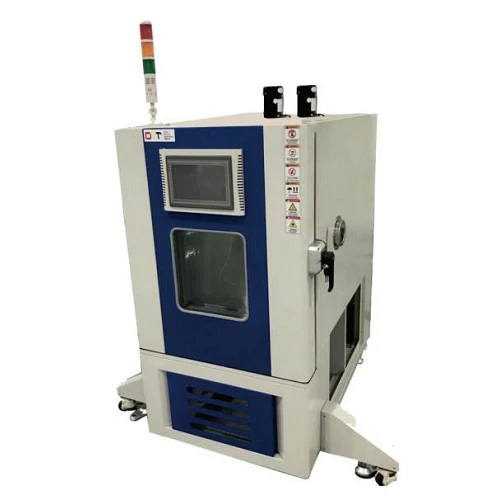

HLTTC Single-Axis High-Low Temperature Test Chamber
Compact and flexible
Excellent performance
Intelligent control
Reliable and quiet
Description
Key Features
- Compact and flexible
- Excellent performance
- Intelligent control
- Reliable and quiet
Applications
- Aerospace
- Defense and military
- Electronics and electrical
- Instruments and meters
- Research institutes
- Marine
Product Introduction
Company HLTTC single-axis high-low temperature test chamber is used for high and low temperature testing of inertial systems and components. Suitable for environmental simulation testing of moving specimens in aerospace, aviation, and electronics industries to verify reliability in actual applications.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
HLTTC Single-Axis High-Low Temperature Test Chamber Specifications
|
Parameter |
Specifications |
||||||||
|
Model |
SAT252 |
SAT392 |
SAT648 |
||||||
|
-40A(W) -55A (W) |
-40A(W) -55A (W) |
-40A(W) -55A (W) |
|||||||
|
Internal Volume (L) |
252 |
392 |
648 |
||||||
|
Inner Chamber Dimensions (mm) |
W |
600 |
700 |
900 |
|||||
|
H |
700 |
800 |
800 |
||||||
|
D |
600 |
Split Unit Dimensions |
700 |
Split Unit Dimensions |
900 |
Split Unit Dimensions |
|||
|
Outer Chamber Dimensions (mm) |
W |
800 |
900 |
900 |
1000 |
1100 |
1000 |
||
|
H |
1400 |
1000 |
1800 |
1100 |
1800 |
1100 |
|||
|
D |
1260 |
1100 |
1600 |
1400 |
1900 |
1400 |
|||
|
Temperature Range (°C) |
-70~150℃ |
||||||||
|
Temperature Fluctuation (°C) |
±0.5℃ |
||||||||
|
Temperature Uniformity (°C) |
≤2.0℃ |
||||||||
|
Temperature Deviation (°C) |
±2.0℃ |
||||||||
|
Ramp Rate |
+85 to -55°C, ≥3°C/min (40 kg aluminum load, full-cycle average) |
+85 to -55°C, ≥5°C/min (60 kg aluminum load, full-cycle average) |
|||||||
|
Linearly Adjustable |
Linear 0.5–1°C adjustable |
Linear 0.5–2°C adjustable |
|||||||
|
Cooling Time |
+85~-55℃ |
||||||||
|
≤28 min (no-load) |
≤18 min (no-load) |
||||||||
|
Temperature/Humidity Control Method |
BTHC balanced temperature/humidity control |
||||||||
|
Operating Ambient Temperature |
+5~+35℃ |
||||||||
|
Water Supply |
Water Supply Method |
Pump lift |
|||||||
|
Circulation Water Flow (t/h) |
2 |
3 |
4 |
||||||
|
Power Supply |
AC 380 V ±10%, 50 ±0.5 Hz, 3-phase 4-wire + protective ground |
||||||||
|
Max. Current (A) |
1.3 |
21 |
38 |
||||||
|
Power (kW) |
6.5 |
12 |
18 |
||||||
|
Weight (kg) |
300 |
600 |
900 |
||||||
|
Standard Configuration |
1 heated glass observation window, 2 test ports ( |
||||||||
|
Safety Standards |
Leakage circuit breaker, fan overheat protection, compressor overpressure/overheat protection, phase sequence protection, thermal fuse, dry-burn overheat protection, etc. |
||||||||
50 mm) left & right, 2 sample shelf sets, 1 illumination lamp, 4 casters, 1 specimen power control terminal
Customization Information
- Customizable to customer requirements
