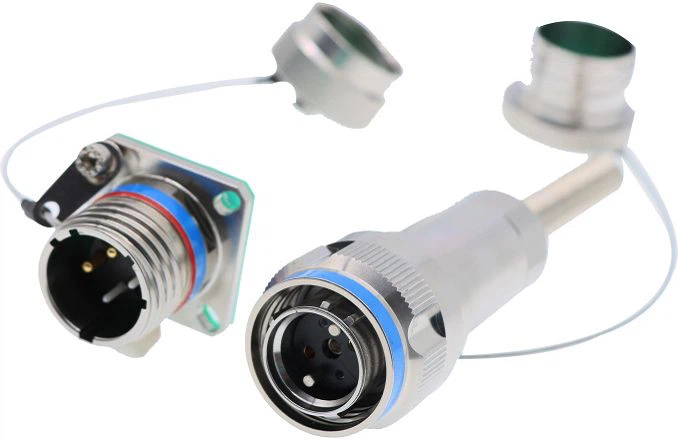

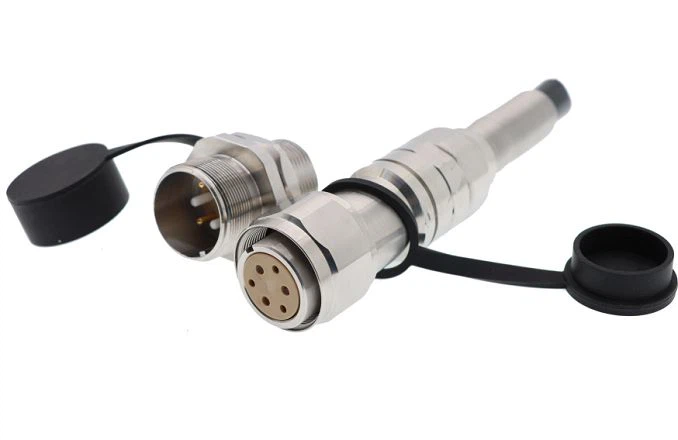

J599 Optical and Electrical Hybrid Connector



J599 2 optical 2 electrical connector is an integrated optoelectronic connector that can transmit multiple optical signals and electrical signals at the same time. The connector is made of stainless steel and is suitable for long-term operation in harsh environments such as acid, alkali, corrosion and marine climate. The plug and socket adopt five Key positioning, blind insertion and mis-insertion prevention functions, three-head thread quick connection, with anti-loosening mechanism, multi-core one-time connection and blind insertion; low connection loss, high reliability; waterproof, dustproof, resistant Harsh environment, corrosion resistance and other characteristics, currently can provide 2 optical and 2 electrical, 2 optical and 4 electrical, etc., 2 optical and 2 electrical is the shell number 13, 2 optical and 4 electrical is the shell number 15, and can be customized according to customer requirements.





• Comply with GJB599A (MIL-DTL-38999) III series interface
• The connector adopts five-key positioning, with blind insertion, mis-insertion prevention and anti-vibration functions
• Using three-head thread quick connection and equipped with anti-loosening mechanism
• Using ceramic ferrules and ceramic sleeves to achieve precise optical fiber docking
• Can realize optical and electrical connection





• Smart communication substation, remote communication base station
• Military optical communication network
• Communication vehicle transmission, long-distance space transmission, communication corps portable transmission tool
• Remote video and telephone conference signal transmission for actual combat exercises
• Coal mines, oil wells, natural gas, etc.
• Geological exploration communication
• Radio and television broadcast
• Emergency access to optical fiber communications;





Insertion Loss	SM	≤1.0dB
	MM	≤0.6dB
Return Loss	SM	≥50dB
Insulation Resistance		500VDC ≥5000MΩ(normal environment)
Contact Resistance		≤10mΩ
Mechanical Behavior	Plug	≤500N(Main cable)
	Socket	≤30N(Branch cable)
Operating Temperature		-40℃～85℃
Insertion Loss return loss Insulation resistance Contact resistance Mechanical behavior Operating temperature Protection level		IP67





Optical cable diameter	8.5mm
Sheath material	TPU
Tensile unit	KEVLAR
electric wire	1.5 square wire
Fiber type	9/125,50/125,62.5/125
tensile strength	Short time:600N Long time:1200N
Operating temperature	-40℃～85℃

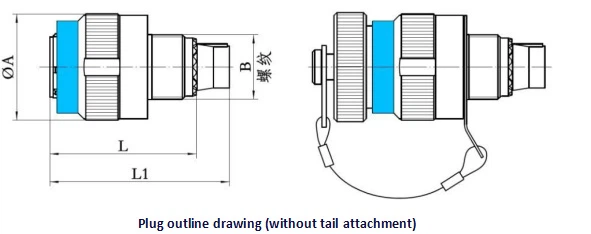

Plug

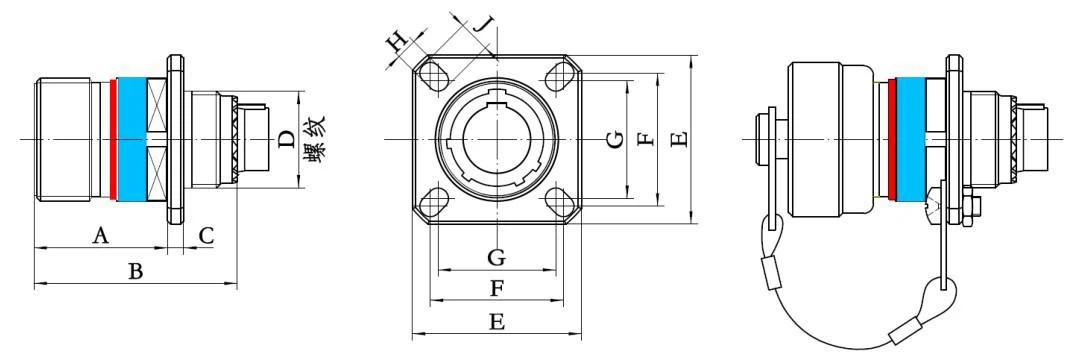

Shell NO.	Shell Code	A Max	B Max	C Max	D Thread	E	F	G	H	J	K Mini	M Mini
13	B	20.90	36.50	2.50	M15x1-6g	26.20	20.62	18.26	3.25	4.93	15.88	20.22
15	C	20.90	36.50	2.50	M18x1-6g	28.60	23.01	20.62	3.25	4.93	19.05	23.42
