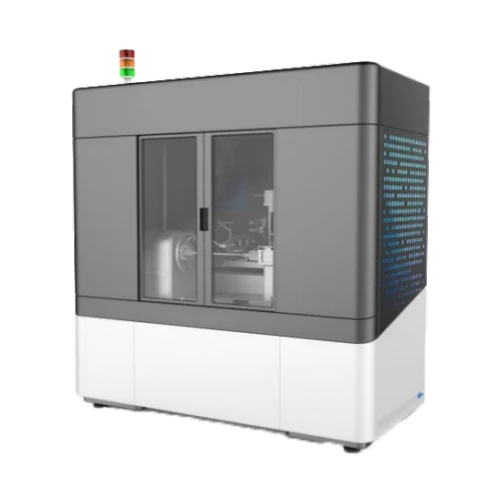

RH16 Fiber Coil Winding Machine
Supports quadrupole, octupole, hexadecapole fiber coil winding
Winding fiber length: ≥ 10000 m
Tension over-charge protection
Description
Key Features
- Supports quadrupole, octupole, hexadecapole fiber coil winding
- Winding fiber length: ≥ 10000 m
- Tension over-charge protection
- Precision fiber placement
- Human-Machine Interface (HMI)
- CCD camera system
- Automatic gluing
Applications
- Winding fiber coils
Product Introduction
Company's RH16 multi-pole fiber coil winding machine is the core equipment for manufacturing FOG fiber coils, and Company possesses the proprietary core technology for its R&D and manufacturing. It winds fiber coils using various symmetric or flat-winding processes, offering simple operation, high-precision automatic fiber layering, and automatic glue dispensing. The machine combines a PLC with high-precision servo motors for precise positioning and control. A CCD camera enables online microscopic observation of the winding, detecting irregularities promptly for timely correction.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
RH16 Fiber Coil Winding Machine Specifications
|
Parameter |
Specifications |
|
Fiber Diameter Range (mm) |
Φ0.1～Φ0.5 |
|
Winding Speed (r/min) |
0-50 |
|
Maximum Tooling Diameter (mm) |
250 |
|
Tension Control Range (g) |
5-50 |
|
Tension Precision (g) |
±0.5(20r/min) |
|
Traverse Stroke (Coil Width) (mm) |
200 |
|
Counting Accuracy (turns) |
0.1 |
|
Displayable Parameters |
Turns, Tension, Length, Layer Count, Spindle Direction, Traverse Direction, Coordinate, Speed, real-time display of wound length for current layer |
|
Programmable Parameters |
Fiber Diameter, Spindle Direction, Traverse Direction, Speed, Tension, Spool Diameter, Spool Width, etc. |
|
Equipment Dimensions (mm) |
L 2200 × W 1100 × H 2000 |

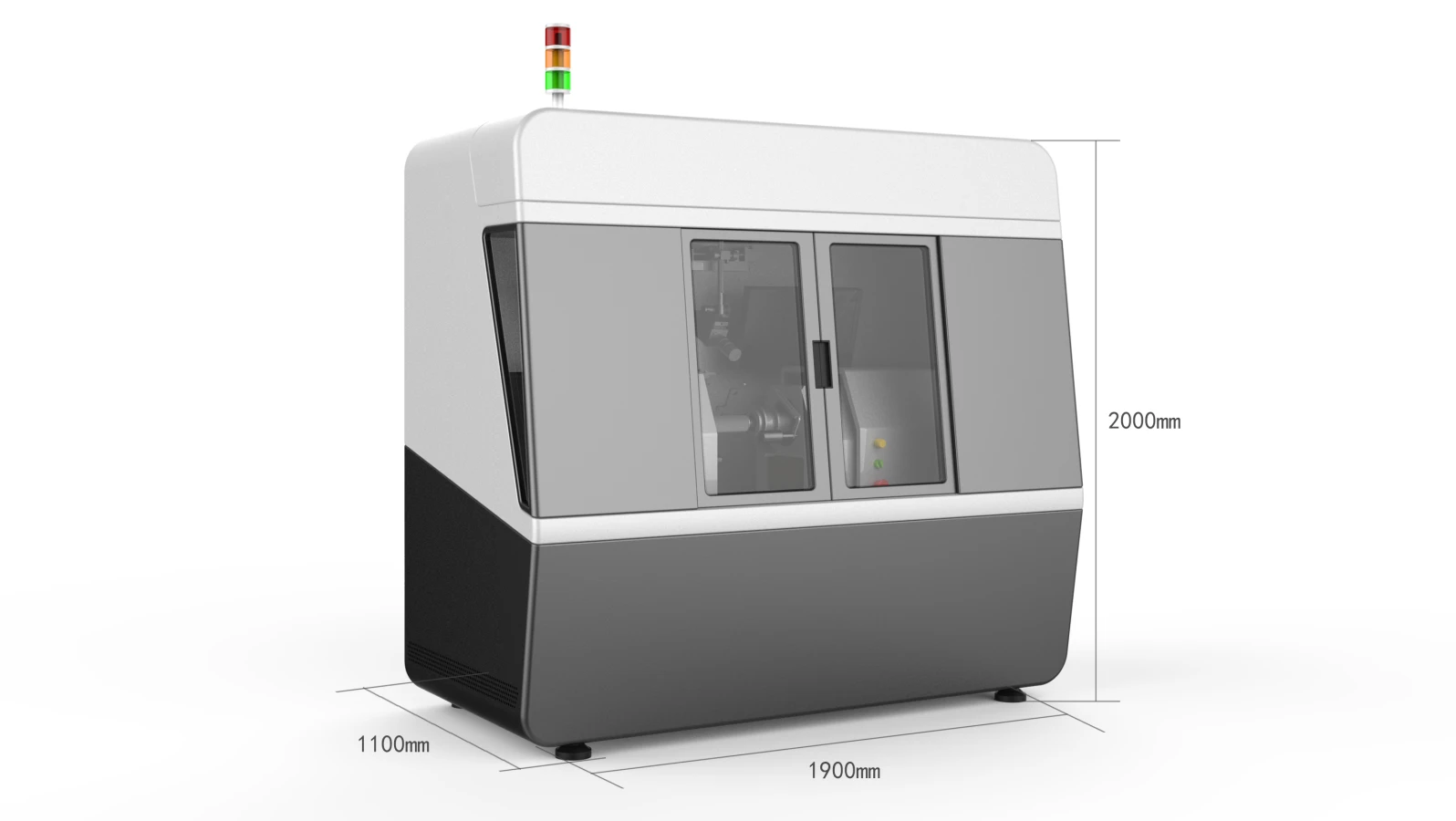

Outline Drawing
