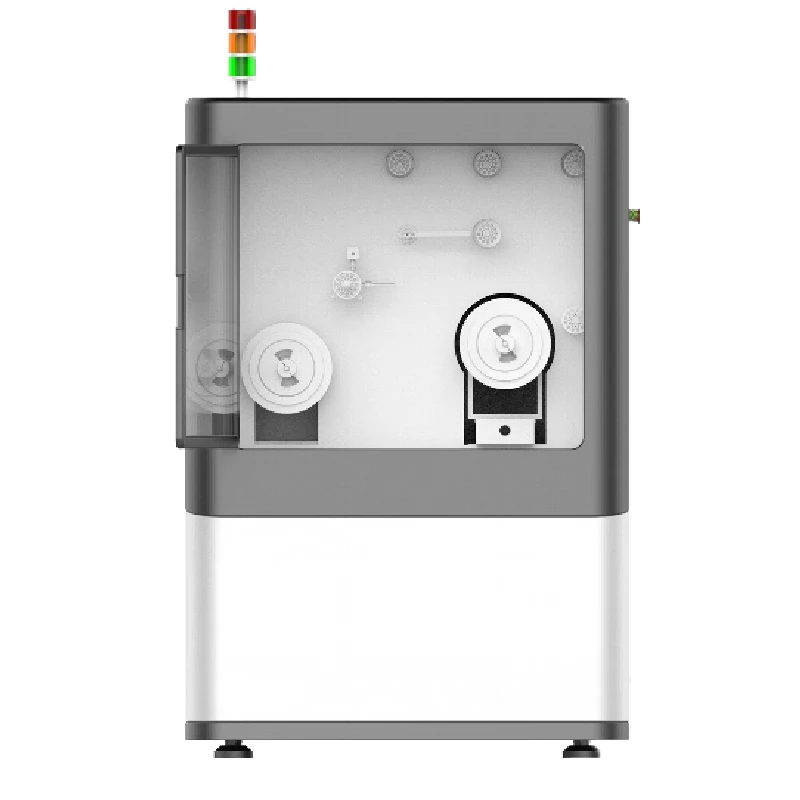

FX02 Fiber Separating And Rewinding Machine
Length Error: 0.3%
Tension Range: 8g-50g
Tension Accuracy: ±1g
Description
Key Features
- Rewinds 25 km standard fiber spools
- Length Error: 0.3%
- Tension Range: 8g-50g
- Tension Accuracy: ±1g
- Tension Over-Limit Protection
- Human-Machine Interface (HMI)
Applications
- Fiber Rewinding or Separating
- Fiber Coil
- Delay Coil
Product Introduction
Company's FX02 fiber rewinding machine is dedicated to fixed-length winding and fiber re-spooling. Entering the target length via the HMI lets it complete fixed-length winding and auto-stop unattended, enabling production automation and higher efficiency. The machine comprises an active pay-off system, a tension control system, and a precision traverse system. A servo motor drives a ball screw to move the take-up spool axially for even layering. The tension system acquires real-time tension, compares it with the setpoint, and via PID control adjusts the pay-off motor speed to keep the dancer wheel balanced-ensuring stable tension throughout.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
FX02 Fiber Separating and Rewinding Machine Specifications
|
Parameter |
Specifications |
|
Applicable Fiber Diameter Range (mm) |
φ0.1~0.26 |
|
Max. Operating Speed (R/min) |
600 |
|
Tension Control Range (g, speed < 200 R/min) |
8-15 |
|
Spindle Diameter (mm) |
15 |
|
Max. Fiber Spool Diameter (mm) |
250 |
|
Length Calculation Error (‰) |
3 |
|
Equipment Dimensions (mm) |
L 1200 × W 1100 × H 1800 |
|
Equipment Voltage (V) |
220 |
|
Equipment Power (kW) |
2.0 |

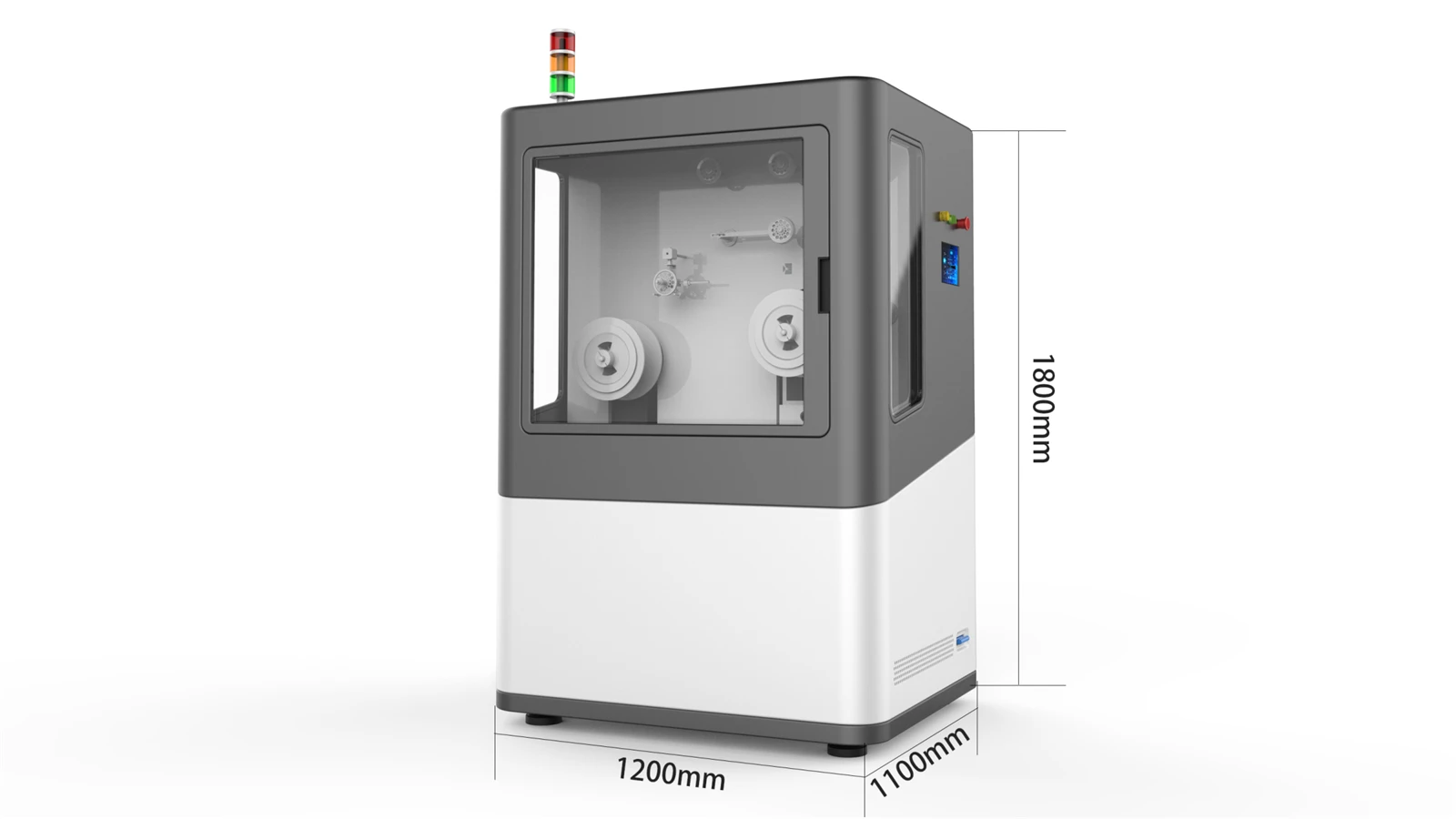

Outline Drawing
