Medical Spectrum Detection Component
Due to the softness, small size, light weight and high sensitivity of the optical fiber, the optical fiber has a wide range of medical applications. Due to the uniqueness of fused silica, the laser can be effectively transmitted.
Description
Product Description

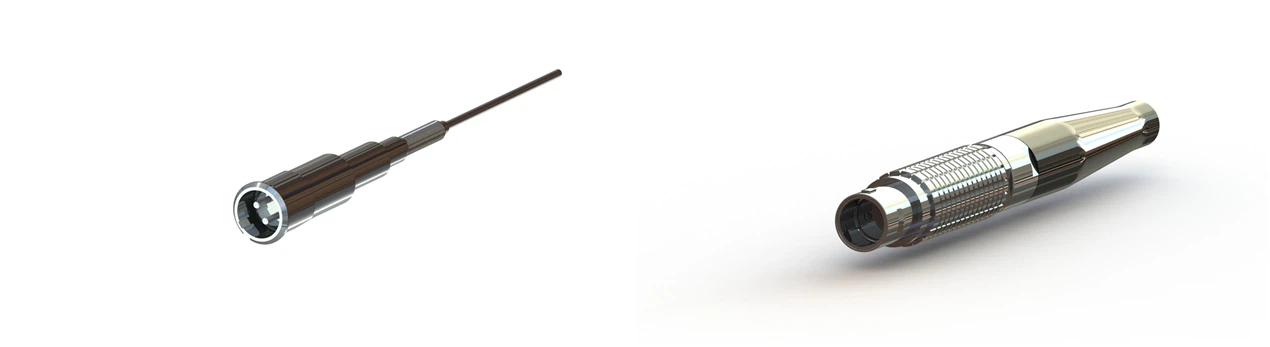

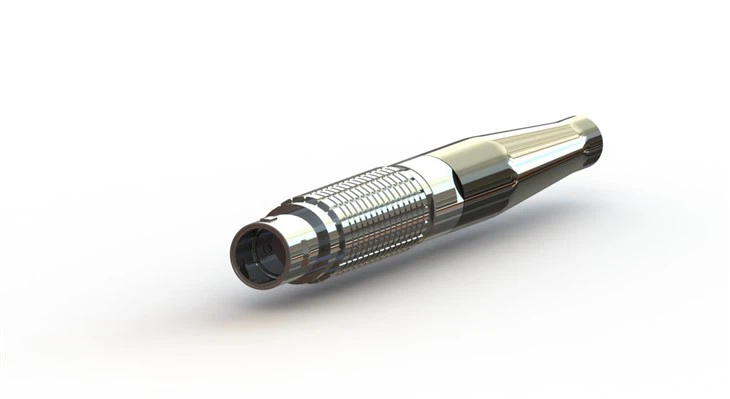

Optical fibers are extensively utilized in medical applications owing to their flexibility, compact dimensions, lightweight properties, and high sensitivity. The exceptional characteristics of fused silica enable efficient laser transmission. Among laser-based medical fiber-optic assemblies, reflective spectral detection probes are a prevalent solution. These probes typically comprise two optical fibers optimized for the visible spectrum-one dedicated to illumination and the other to collecting reflected spectral signals. As a critical consumable in medical diagnostics and testing, such components are widely integrated into medical detection systems and clinical examinations.
Features
- Medical-Grade Stainless Steel Housing: The probe features an all-metal medical-grade stainless steel structure, providing antibacterial properties.

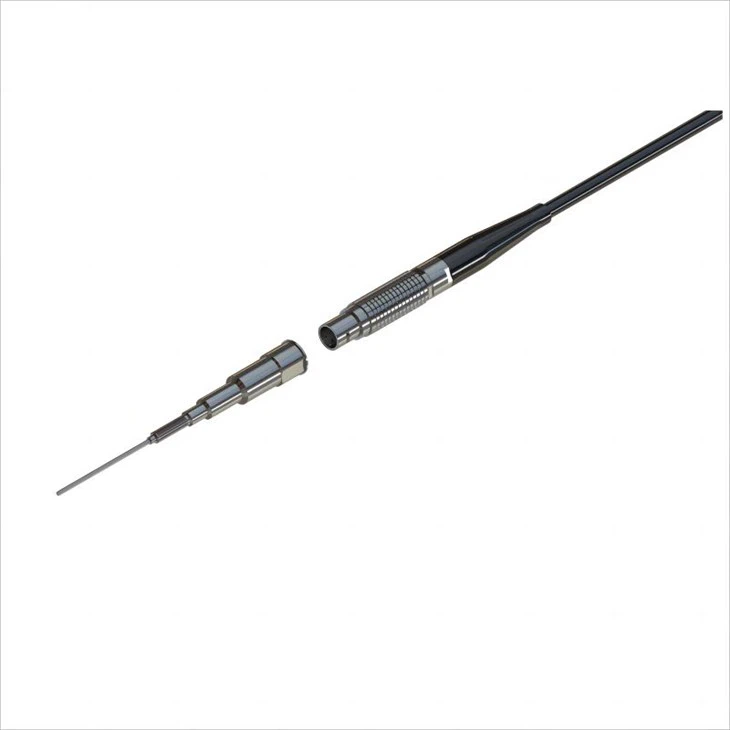

- Quick-Release Self-Locking Design: The detection head and optical fiber adopt a plug-and-play self-locking mechanism for easy probe replacement.
- Keyed Alignment Mechanism: Equipped with a positioning key for blind mating and anti-misinsertion functionality.
- Compact and Ergonomic Design: The probe has a minimal form factor with a maximum diameter of less than 13mm, ensuring ease of handling.
- Standard Connector Options: The bifurcated end supports ST, FC, or SMA905 standard connectors for fast and reliable equipment interfacing.
- Customizable Optical Fiber Parameters: The fiber can be tailored to specific wavelength bands and core diameters, including support for large-core fibers.
- Precision-Polished Fiber Endfaces: Ensures high spectral transmittance and low insertion loss.
- Durable and Cost-Effective: The equipment connection end is highly reliable for long-term use; only the probe tip requires replacement, significantly reducing consumable costs.
Applications
● Medical equipment
● Spectral detection detection
Parameters
|
Insertion loss |
0.6dB |
|
Fiber Type |
UV/IR, special fiber can be customized |
|
Fiber core diameter |
80um-1000um |
|
communication wavelength |
400nm-2000nm |
|
Insertion times |
＞1000 times |
|
Operating temperature |
-40℃~+85℃ |
|
Waterproof level |
IP67 |
why choose us
As an established manufacturer since 2019, we operate advanced production facilities dedicated to engineering precision interconnect solutions and optoelectronic components for demanding applications.
Our technical leadership stems from:
A veteran R&D team with expertise from China's top-tier optical technology corporations
Ongoing innovation partnerships with premier research institutions including Huazhong University of Science and Technology, Wuhan University, and Chinese Academy of Sciences.
Our OEM services feature:
• Complete design and production capabilities
• Strict compliance with military and industrial standards
• Flexible solutions tailored to your technical specifications
We welcome the opportunity to discuss how our engineering expertise can address your specific component requirements.
