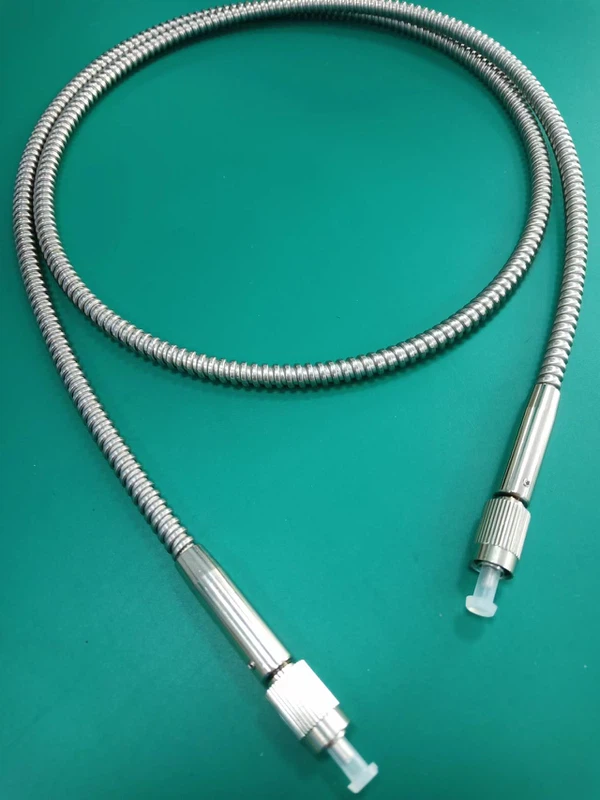

High Temperature Metal Connector
The high-temperature high-power metal fiber connector is designed with a high-precision metal connector that offers excellent heat dissipation performance. It utilizes a metal fiber optic ferrule that is precisely polished into a curved surface (UPC) or an angled surface (APC).
Description
Product Description
The High-Temperature High-Power Metal Fiber Connector is engineered with a precision-machined metal housing that provides superior heat dissipation capabilities. It features a metal ferrule, meticulously polished to a UPC (Ultra Physical Contact) or APC (Angled Physical Contact) surface, ensuring low insertion loss and stable signal quality.
To withstand demanding environments, the connector is manufactured using advanced techniques such as high-temperature resistant adhesives, adhesive-free fiber mounting, and air-gap structures, delivering exceptional thermal endurance and optical performance.
This connector is widely used in medical equipment, industrial automation, high-performance optical communication systems, and fiber laser applications, where both high power handling and environmental resilience are critical.
Features
- Constructed with a high-temperature-resistant stainless steel housing and metal jacket, capable of withstanding temperatures up to 280°C and supporting long-term operation below 200°C
- Compatible with a wide range of energy transmission fibers with core diameters from 80 μm to 1000 μm

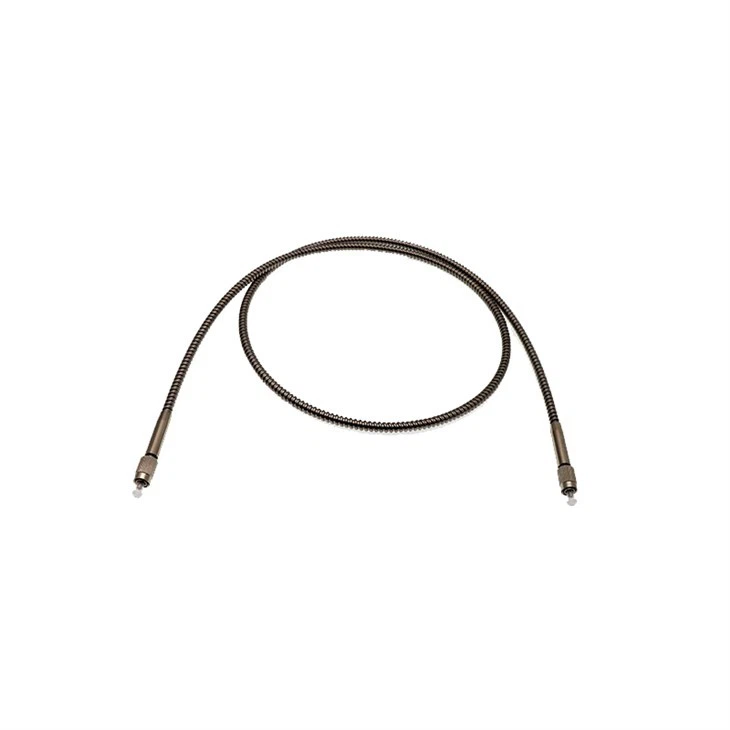

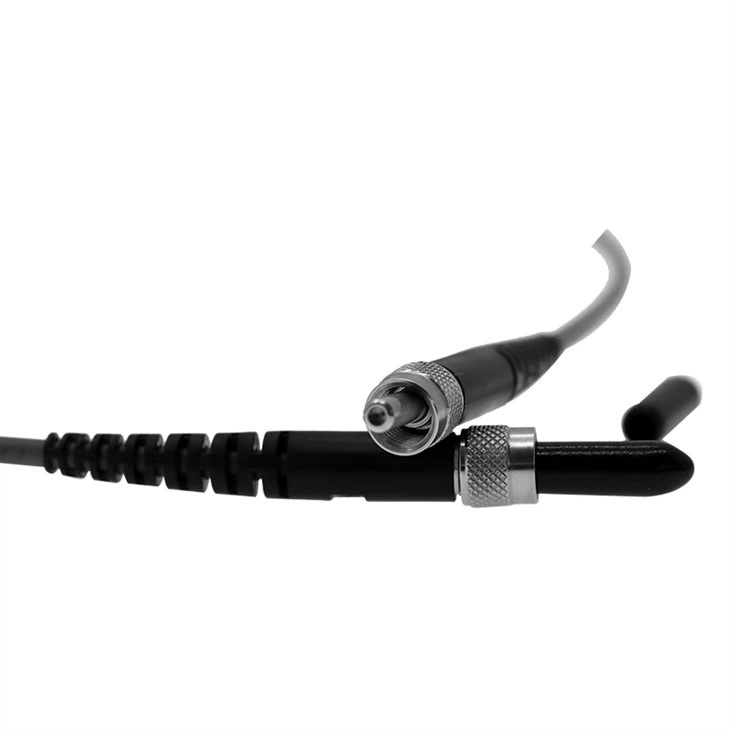

- Available in standard connector types such as FC, SMA905, D80, and customizable to meet specific customer requirements
- Incorporates a floating ferrule and adhesive-free assembly, making it ideal for high-power laser transmission
- Engineered with waterproof sealing, oil resistance, and a protection rating of up to IP68
Applications
- Power generation and transmission industry
- Smelting and metal forging environment
- Precision temperature sensing systems
- High-power laser delivery applications
- Measurement and testing instrumentation
Product Parameters
|
Categories |
Indicators |
|
Insertion Loss |
Single Mode ≦0.30dB |
|
Mutuality |
≦0.1dB |
|
Operating Temperature |
-40℃ ~200℃ |
|
Fiber Connector Type |
FC,D80,SMA905 are optional |
|
Ferrule Type |
PC,APC,PC are optional |
|
Jacket |

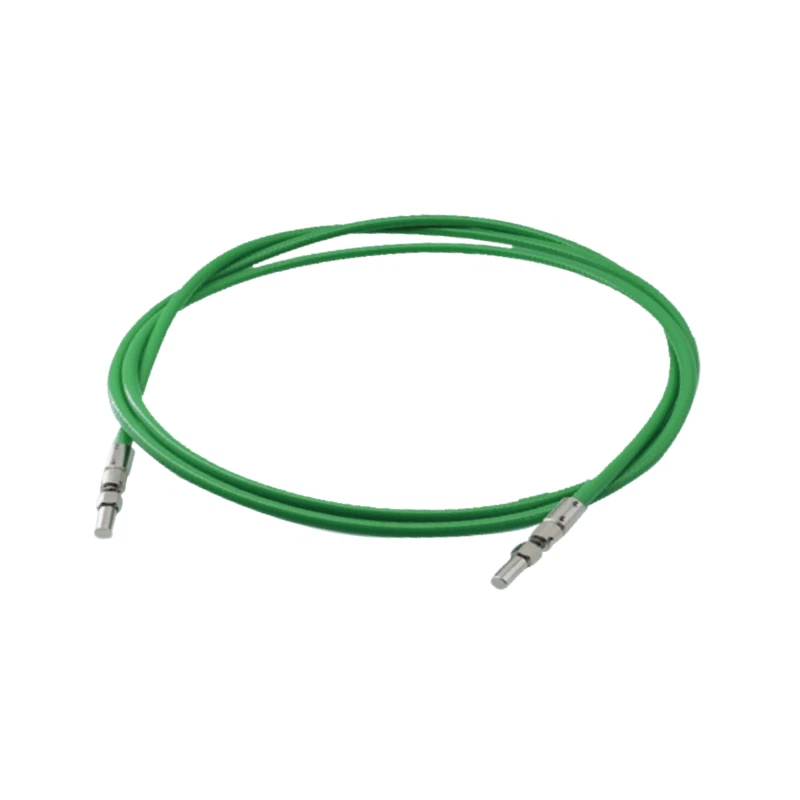

PVC,mini-armored loose tube. |
|
Degree of Protection |
IP68 |

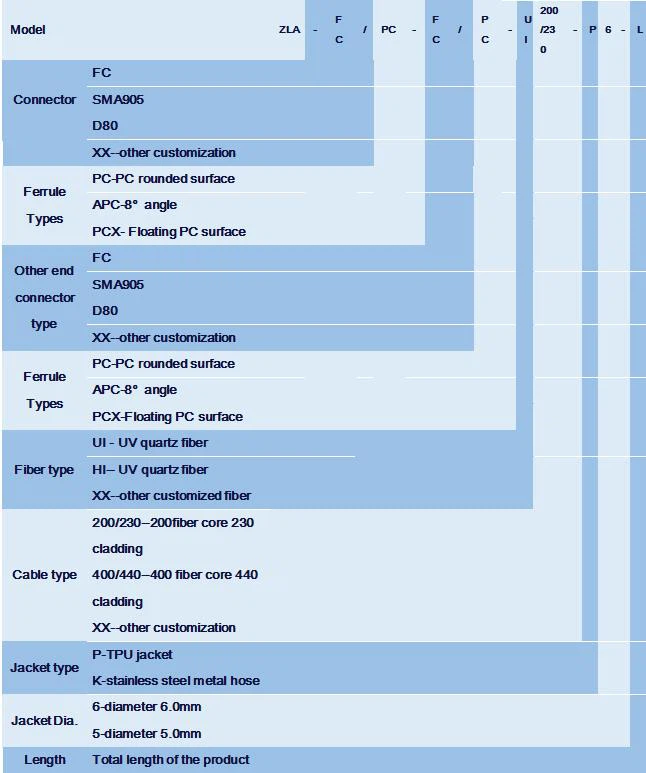

Model Naming
why choose us
1.Expertise in High - Power Optics
We specialize in high - power fiber connectivity solutions. With years of R & D and manufacturing experience, our team deeply understands the demands of extreme environments (high temp, high power), ensuring our connectors outperform in reliability.
2. Customization Flexibility
Beyond standard FC, SMA905, D80 types, we offer tailored connector designs to match your unique project needs-from fiber core diameters to housing materials.
3. Rigorous Quality Assurance
Every High - Power Metal Fiber Connector undergoes strict testing: insertion loss, thermal endurance, and IP68 sealing verification. We deliver products that meet industrial - grade durability and performance.
4. End - to - End Support
From pre - sales consultation (matching connectors to your application) to after - sales service (technical troubleshooting), our team provides seamless support, ensuring your systems run smoothly.
If you are interested in this high temperature metal connector, please contact us via our website message or email. We will provide detailed product information, customized solutions, and competitive pricing. We look forward to working with you to build stable and efficient connectivity bridges for your optical systems.
