Buried Waterproof Fiber Optic Connector

Outdoor buried waterproof optical fiber connectors can be made of stainless steel, and use two 0-ring seals and vulcanization processes to ensure watertight properties, meeting the needs of general outdoor buried optical fiber movable connector scenarios, and can be used as watertight connectors in land lakes; Conventional model connectors can meet 2-core and 4-core optical fiber transmission requirements, and the service life is designed to be more than 10 years. Customized development and design can also be carried out according to the usage requirements to meet the requirements of more transmission channels and photoelectric composite communications.

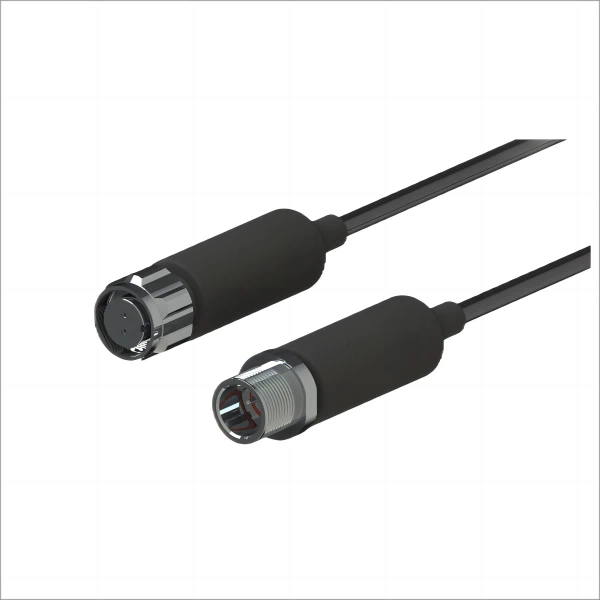

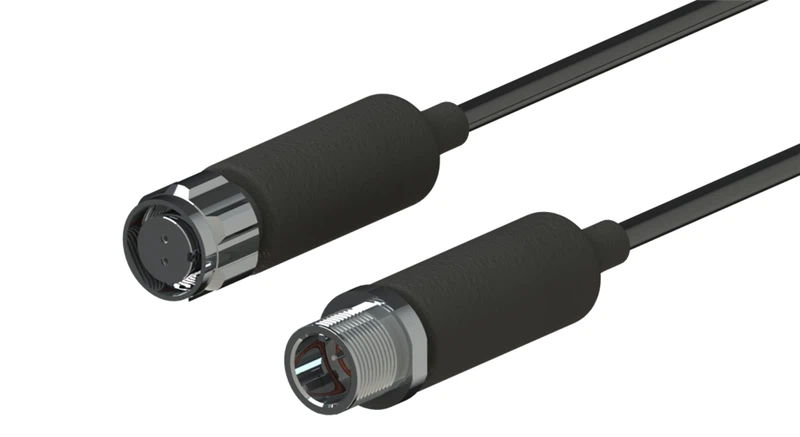

2-core buried optical fiber connector plug and socket

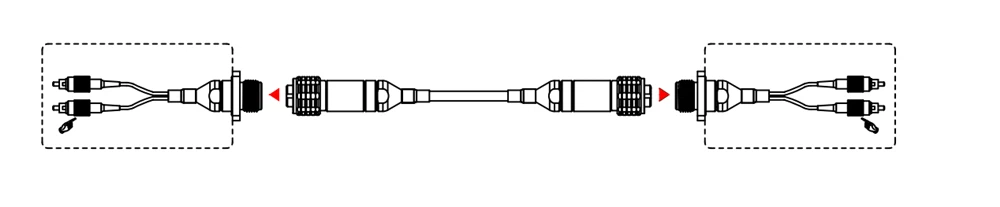

2-core buried optical fiber connector plug and socket docking renderings





• Fiber optic perimeter sensing and detection
• Mobile outdoor base station equipment
• Lake monitoring and underwater monitoring
• High-speed railway and highway signal control
• Coal mines, oil wells, natural gas, etc.
• Geological exploration communication





Insertion loss	Single mode	≤0.60dB _ _
	Multimode	≤0.50dB _ _
Return loss	Single mode	≥50dB
Mechanical behavior	Plug	≤500N (main cable)
	Socket	≤30N (branch optical cable)
Operating temperature		-40℃～85℃
Lateral watertight type		≥2MPa





Optical cable diameter	5.0mm or 7.0mm
Sheath material	LSZ, TPU, PVC
Length	2-2000m
Fiber type	9/125, 50/125, 62.5/125
Optical fiber coating	900um Tight fiber
Tensile strength	Short term: 600N Regular term: 200N
Operating temperature	-40℃～85℃

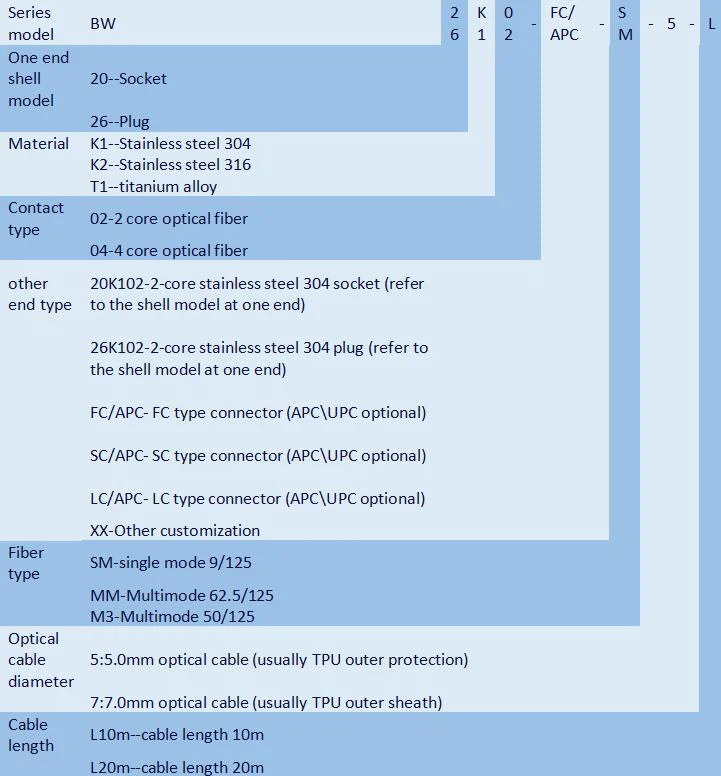

Component ordering information



Order model example

(1) BW26K102-26K102 - S M - 5 - L10 m

Indicates: Both ends are BW26K102 plugs, the optical cable is 5.0 single-mode optical cable, and the length of the optical cable is 10m

( 2 ) BW26K102 - FC/APC - SM - 5 - L10m

Indicates: One end is a BW26K102 plug, the other end is an FC/APC 2-core branch connector, the optical cable is a 5.0 single-mode optical cable, and the optical cable length is 10m
