J599-A8 Fiber Optic Connector
J599/A8 series fiber optic connectors use three threaded quick connection, while using five keys positioning, with blind and anti-misplaced and anti-vibration function, the connector is made of stainless steel 316L, high density of contact parts.
Description
Product Description
J599/A8 series fiber optic connectors use three threaded quick connection, while using five keys positioning, with blind and anti-misplaced and anti-vibration function, the connector is made of stainless steel 316L, high density of contact parts, anti-electromagnetic shielding function, fiber optic components can be removed, convenient field installation, connector loss is small, high reliability; with waterproof, dustproof, corrosion resistance and other characteristics.
Features
• Products comply with GJB599A (MIL-DTL-38999) Ⅲ series interface specifications, performance in line with ARINC801 specifications
• Products connect optical links with low loss, high reliability, waterproof, dustproof and corrosion resistance
• Outer shell using different materials can meet a variety of harsh environmental requirements as well as electromagnetic shielding requirements
• Products adopt 5 keys positioning, anti-blind and wrong insertion, and also have excellent anti-vibration performance
• Adopts three-head thread for quick connection and has anti-loosening structure
• With single core, 2 core, 4 core, 6 core, 8 core, 12 core and other specifications for selection
Applications
• Active or passive equipment terminals
• Marine, shipboard communication systems and equipment
• Aviation, aerospace, and other optical and electrical systems and equipment
• Other military, weapons systems and equipment areas
Product Parameters
|
Categories |
Indicator requirements |
|
Insertion loss |
≦0.60dB |
|
Reciprocity |
≦0.2dB |
|
Operating temperature |
-55℃~85℃ |
|
Vibration |
Frequency 10Hz~2000Hz,Power skin density 0.4G2/Hz,Root mean square value of acceleration 23.1; |
|
Impact |
Peak acceleration 2960m/s2,Duration 3ms,Rate of change of speed 5.61m/s; |
|
Mechanical life |
1000 times |
|
Tensile strength |
≧68N(ø2mm optic fiber cable),≧800N(Ф5.0mm or more multi-core fiber optic cable) |

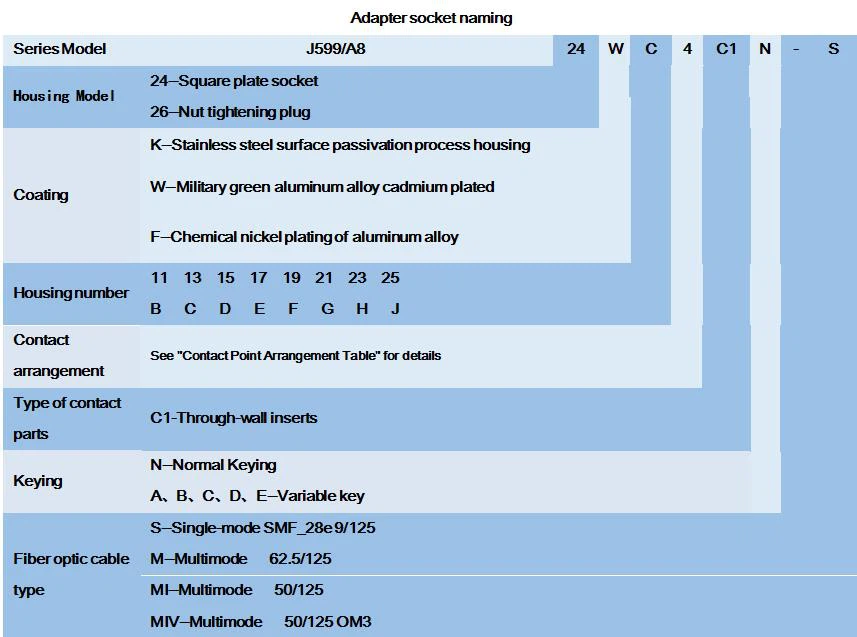

Model Naming

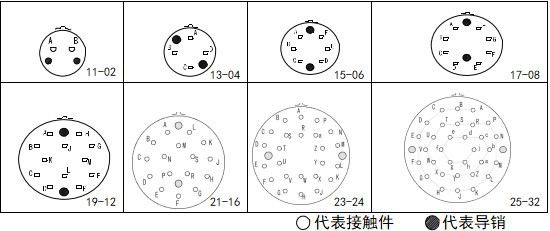

Table: Contact point arrangement
Examples of common connection schemes
Connection SolutionsⅠ
Connection SolutionsⅡ
Connection SolutionsⅢ
Dimension
Plug assembly
|
|
Housing number |
A(MAX) |
B Thread |
|
A (09) |
21.80 |
M12×1-6g |
|
|
B (11) |
25.00 |
M15×1-6g |
|
|
C (13) |
29.40 |
M18×1-6g |
|
|
D (15) |
32.40 |
M22×1-6g |
|
|
E (17) |
35.60 |
M25×1-6g |
|
|
F (19) |
38.50 |
M28×1-6g |
|
|
G (21) |
41.70 |
M31×1-6g |
|
|
H (23) |
44.90 |
M34×1-6g |
|
|
J(25) |
48.00 |
M37×1-6g |
Receptacle assembly
|
Housing number |
A (MAX) |
B (MAX) |
C (MAX) |
D Thread |
E |
F |
G |
H |
J |
d1(MIN) |
d2(MIN) |
|
A (09) |
20.90 |
10.60 |
2.50 |
M12×1-6g |
23.80 |
18.26 |
15.09 |
3.25 |
5.49 |
16.66 |
13.11 |
|
B (11) |
20.90 |
10.60 |
2.50 |
M15×1-6g |
26.20 |
20.62 |
18.26 |
3.25 |
4.93 |
20.22 |
15.88 |
|
C (13) |
20.90 |
10.60 |
2.50 |
M18×1-6g |
28.60 |
23.01 |
20.62 |
3.25 |
4.93 |
23.42 |
19.05 |
|
D (15) |
20.90 |
10.60 |
2.50 |
M22×1-6g |
31.00 |
24.61 |
23.01 |
3.25 |
4.93 |
26.59 |
23.01 |
|
E (17) |
20.90 |
10.60 |
2.50 |
M25×1-6g |
33.30 |
26.97 |
24.61 |
3.25 |
4.93 |
30.96 |
25.81 |
|
F (19) |
20.90 |
10.60 |
2.50 |
M28×1-6g |
36.50 |
29.36 |
26.97 |
3.25 |
4.93 |
32.94 |
28.98 |
|
G (21) |
20.10 |
11.40 |
3.20 |
M31×1-6g |
39.70 |
31.75 |
29.36 |
3.25 |
4.93 |
36.12 |
32.16 |
|
H (23) |
20.10 |
11.40 |
3.20 |
M34×1-6g |
42.90 |
34.93 |
31.75 |
3.91 |
6.15 |
39.29 |
34.93 |
|
J(25) |
20.10 |
11.40 |
3.20 |
M37×1-6g |
46.00 |
38.10 |
34.93 |
3.91 |
6.15 |
42.47 |
37.69 |
