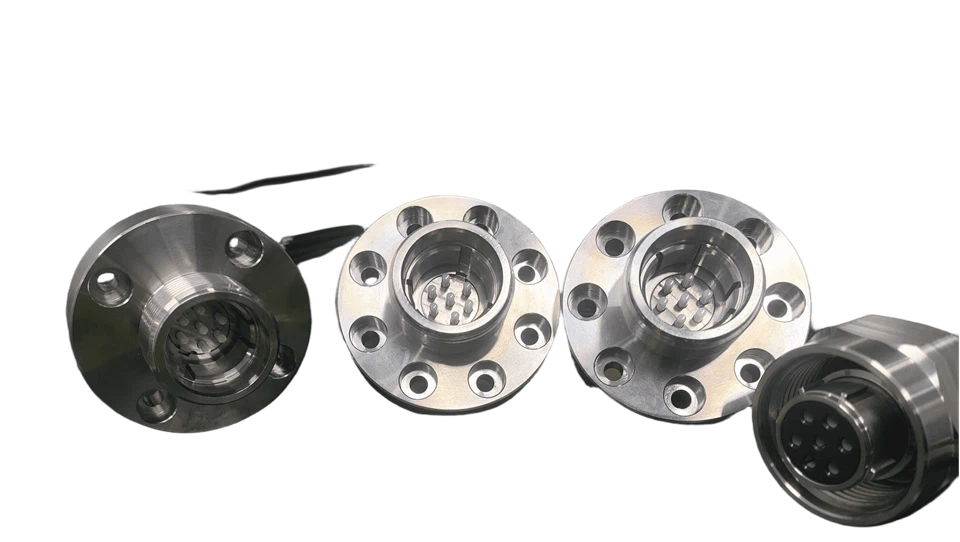

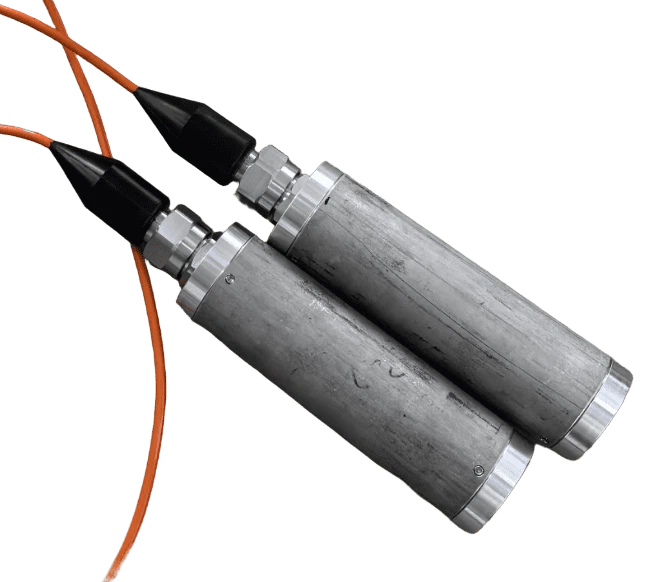

OE 46M/30M Metal series



Contact Pins: 2–32 cores

Contact Resistance: <10 mΩ

Insulation Resistance:

Normal condition: >2000 MΩ

Environmental test: >1000 MΩ

Dielectric Strength: ≤3000V/DC, 1min

Single-Core Current Rating: ≤40A

Insertion Loss:

1.2dB (standard) / 0.6dB low loss (1310nm)

1.0dB (standard) / 0.5dB low loss (1550nm)

Mechanical Durability: >1000 mating cycles

Factory Test Pressure:

Standard lateral pressure: 30MPa

Customizable up to 60MPa (lateral)

Optional socket with longitudinal waterproof function

Operating Temperature: -45℃ to +90℃





Connector Housing: Standard 316L stainless steel; customizable to titanium alloy TC4

Optical Contacts: Zirconia ceramic ferrule

Electrical Contacts: Gold-plated brass

Sealing End Cap: 316L stainless steel

Cable: Polyurethane or rubber-jacketed cable

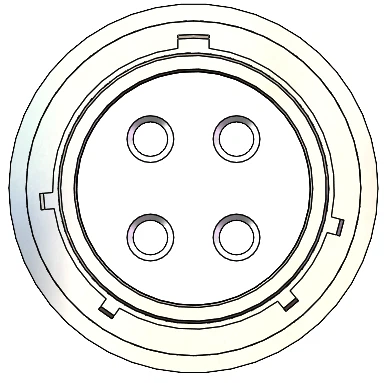

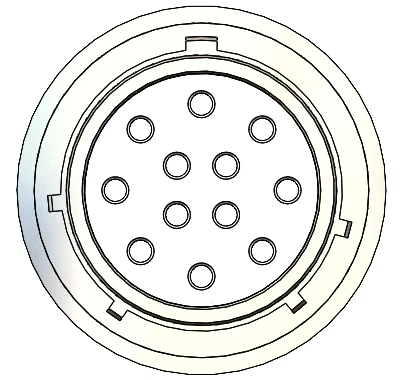

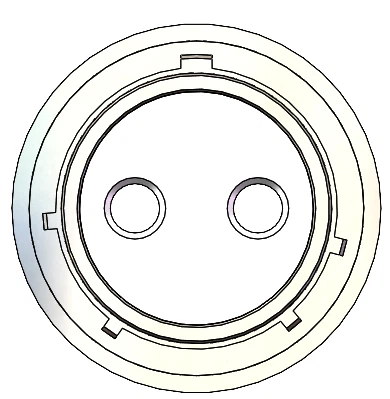

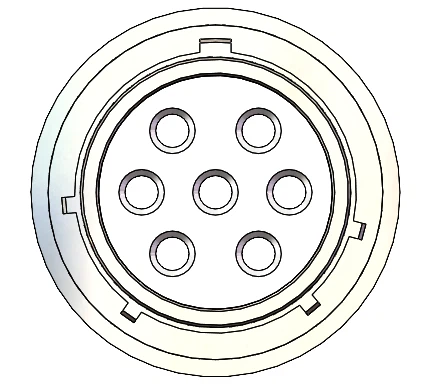

Configuration: 2 optical/electrical cores Single-core current rating: 65A Working voltage: 1000V DC/AC rms Dielectric strength: 2500V DC Insertion loss: ≤1.0dB @1550nm	Configuration: 4 optical/electrical cores Single-core current rating: 40A Working voltage: 500V DC/AC rms Dielectric strength: 2500V DC Insertion loss: ≤1.0dB @1550nm	Configuration: 7 optical/electrical cores Single-core current rating: 20A Working voltage: 500V DC/AC rms Dielectric strength: 1000V DC Insertion loss: ≤1.0dB @1550nm

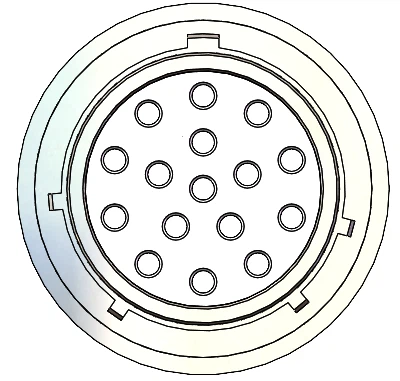

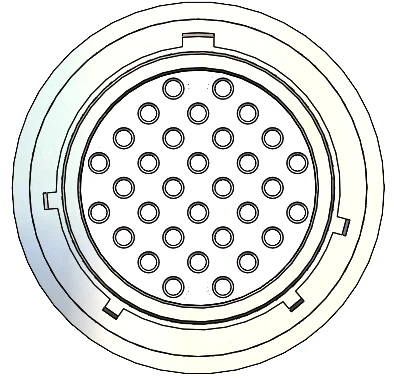

Configuration: 12 optical/electrical cores Single-core current rating: 13A Working voltage: 500V DC/AC rms Dielectric strength: 1000V DC Insertion loss: ≤1.0dB @1550nm	Configuration: 16 optical/electrical cores Single-core current rating: 13A Working voltage: 500V DC/AC rms Dielectric strength: 1000V DC Insertion loss: ≤1.0dB @1550nm	Configuration: 32 optical/electrical cores Single-core current rating: 5A Working voltage: 500V DC/AC rms Dielectric strength: 1000V DC

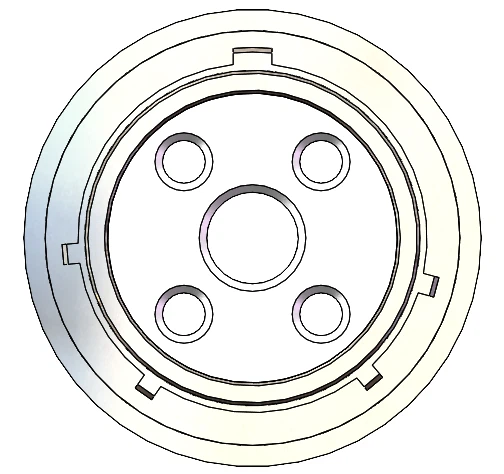

Configuration: 4 optical/electrical + 1 RF core Single-core current rating: 20A Working voltage: 500V DC/AC rms Dielectric strength: 1000V DC Insertion loss: ≤1.0dB @1550nm

Note: Customization available for different core counts (optical, electrical, or RF transmission requirements).

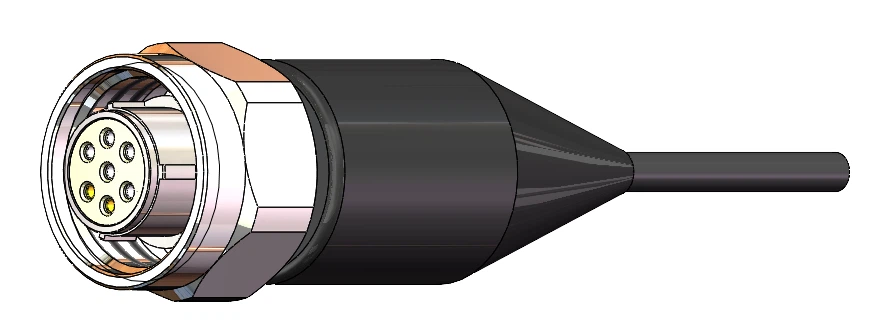

 Plug Design：

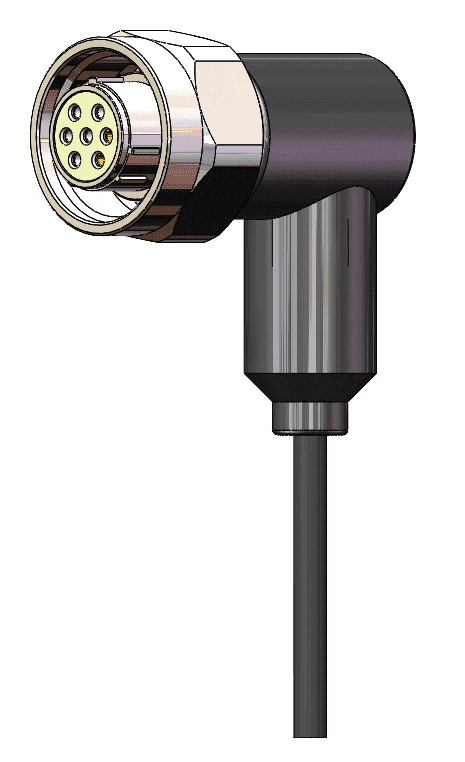

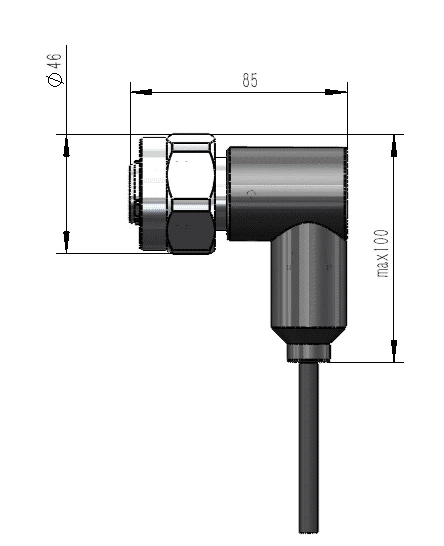

OE46M/30MTEXFY Vertical Tail Attachment Type





OE46MT/30MTEXFY Standard Round Tail Attachment Type

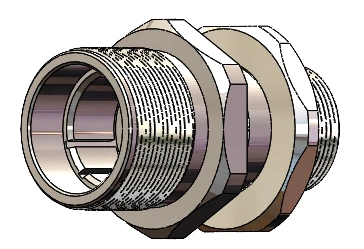

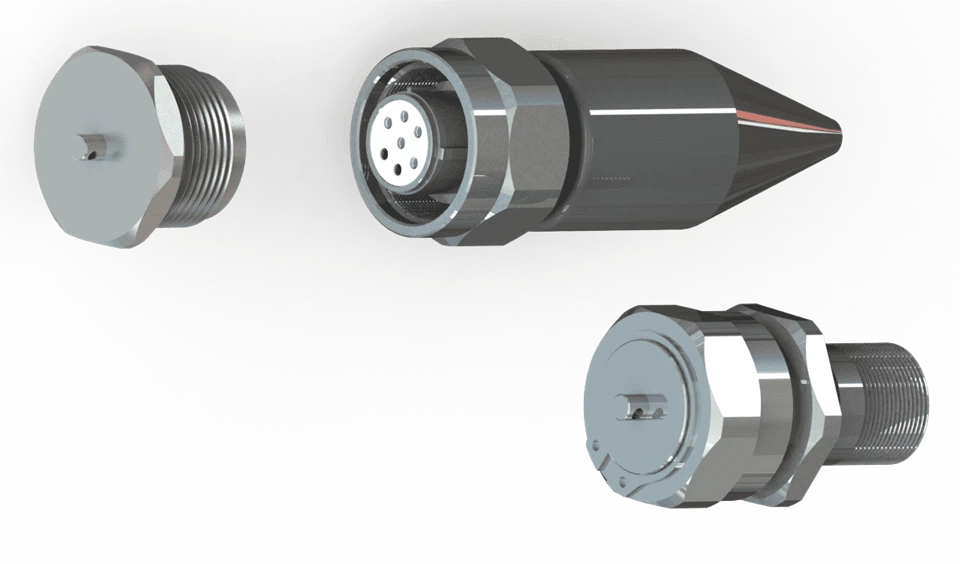

Socket Designs：



Sealing Cap Design：









✔ Unmatched Capacity – Supports up to 32 hybrid cores (optical/electrical/RF) in a single connector, reducing system complexity.
✔ Extreme Environment Ready – Withstands 60 MPa pressure and operates from -45°C to +90°C, ideal for deep-sea ROVs and oil/gas applications.
✔ Ultra-Low Loss – 0.5 dB insertion loss @1550 nm ensures signal integrity over long distances.
✔ Military-Grade Durability – >1000 mating cycles with gold-plated contacts and ceramic ferrules for long-term reliability.
✔ Fully Customizable – Tailor core counts, materials, pressure ratings, and sealing methods to your exact needs.





Q: How does the OE46M/30M compare to standard underwater connectors?
A: It outperforms with higher core density (32 vs. typical 12), lower insertion loss (0.5 dB), and extreme pressure resistance (60 MPa customizable).

Q: Can I integrate RF signals alongside optical/electrical cores?
A: Yes! The 4+1 RF hybrid configuration (e.g., 4 optical/electrical + 1 RF core) is available for mixed-signal applications.

Q: What's the lifespan under frequent mating?
A: Rated for >1000 cycles with <10 mΩ contact resistance drift, ensuring stable performance in dynamic deployments.

Q: Is titanium housing necessary for seawater use?
A: 316L stainless steel suffices for most cases, but titanium TC4 is recommended for hypersaline or high-biofouling environments.

Q: How is waterproofing validated?
A: Each unit undergoes 30 MPa pressure testing (60 MPa optional) and IP68 certification for leak-proof performance.
