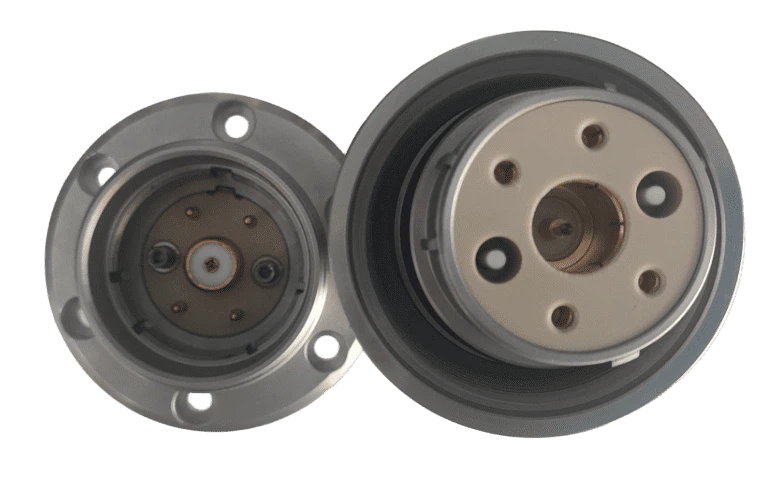

OE 60M/30M Metal series



• Standard 2.5mm fiber ferrule
• Plug ferrule end-face flush with mounting surface for easy cleaning/maintenance
• Fiber alignment sleeve located on socket side, detachable and replaceable
• Socket ferrule designed for easy maintenance





• Contact Pins: 7–11 cores
• Contact Resistance: <10 mΩ
• Insulation Resistance:
• Normal condition: >2000 MΩ
• Environmental test: >1000 MΩ
• Dielectric Strength: ≤2000V/DC, 1 min
• Single-Core Current Rating: ≤40A
• Insertion Loss:
• 1310 nm: 1.2 dB standard / 0.3 dB low loss
• 1550 nm: 1.0 dB standard / 0.25 dB low loss
• Mechanical Life:
• Connector: >500 cycles
• Sealing ring: 100 cycles
• Factory Test Pressure:
• Standard lateral pressure: 30 MPa
• Customizable up to 60 MPa lateral pressure
• Socket with longitudinal waterproof function
• Operating Temperature: -45℃ to 90℃





• Connector Housing: Standard stainless steel 316L (customizable to titanium alloy TC4)
• Optical Contacts: Zirconia ceramic ferrule
• Electrical Contacts: Gold-plated brass
• Sealing End Cap: Stainless steel 316L
• Cable: Polyurethane or rubber-sheathed cable

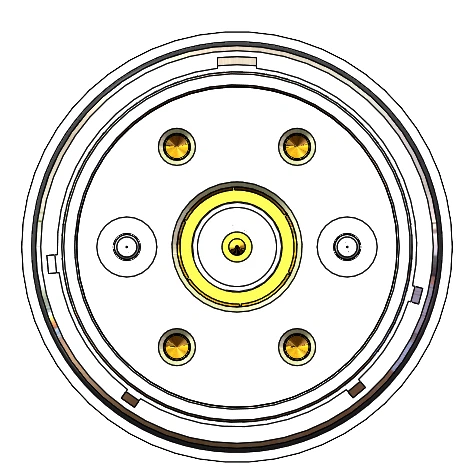

Configuration: 2 optical + 5 electrical + 1 RF core Current Rating per Core: 20A Operating Voltage: 500V DC/AC rms Dielectric Strength: 1000V DC Insertion Loss: ≤1.0dB @1550nm

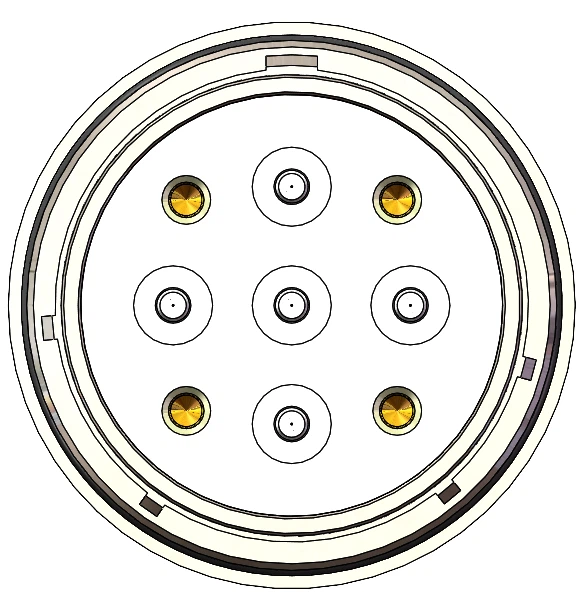

Configuration: 5 optical + 4 electrical cores Current Rating per Core: 20A Operating Voltage: 500V DC/AC rms Dielectric Strength: 1000V DC Insertion Loss: ≤1.0dB @1550nm

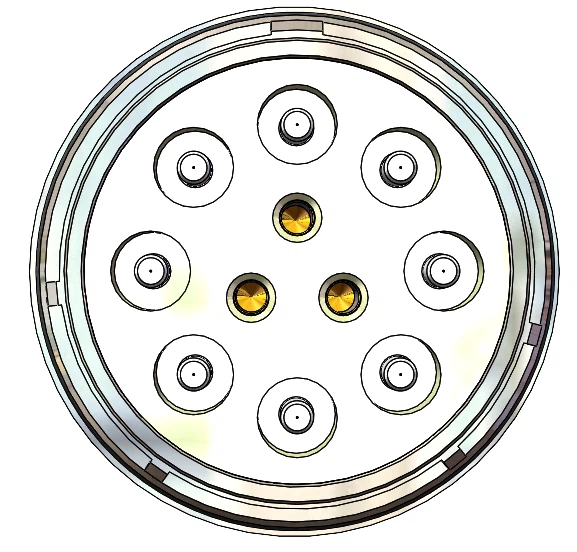

Configuration: 8 optical + 3 electrical cores Current Rating (per core): 20A Operating Voltage: 500V DC/AC RMS Dielectric Withstanding Voltage: 1000V DC Insertion Loss (1550nm): ≤1.0dB

Note: Customization available for different core counts (optical, electrical, or RF transmission requirements).

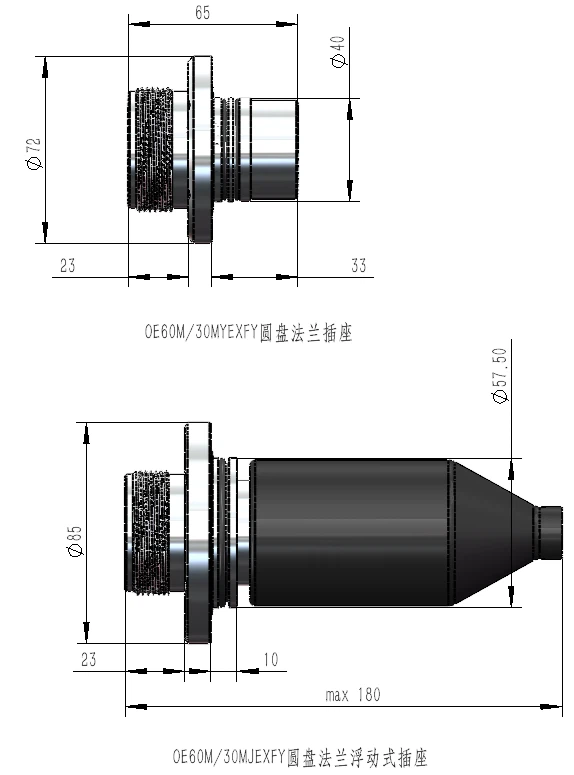

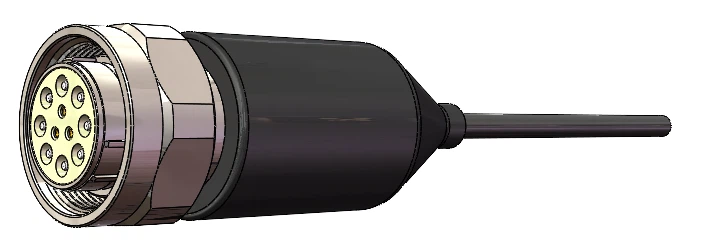

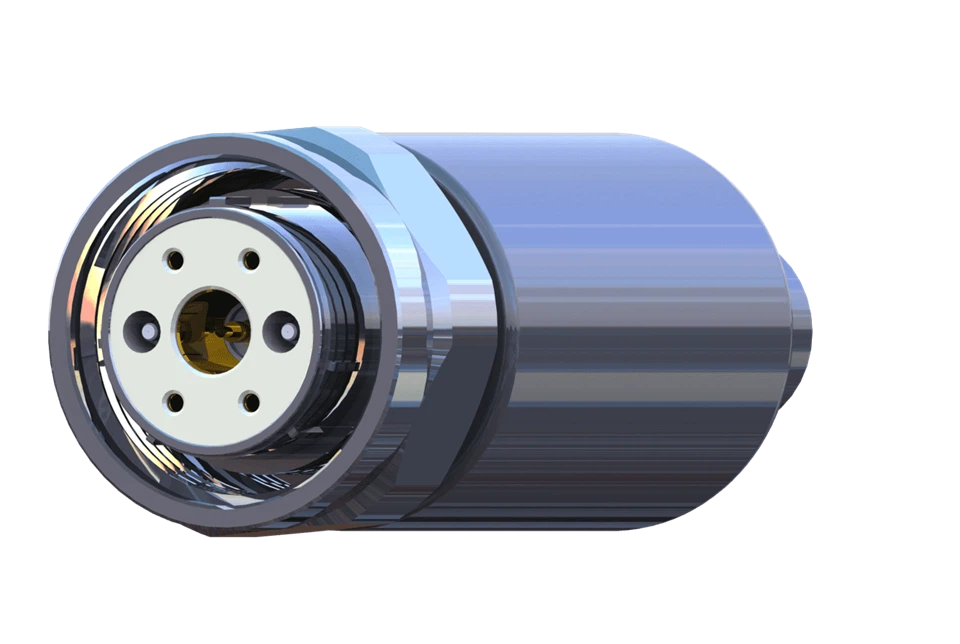

Plug Designs：

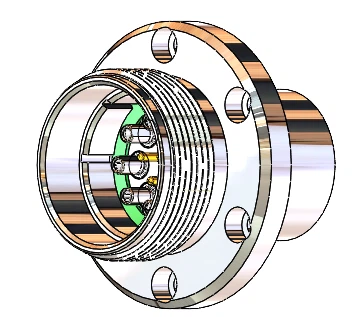

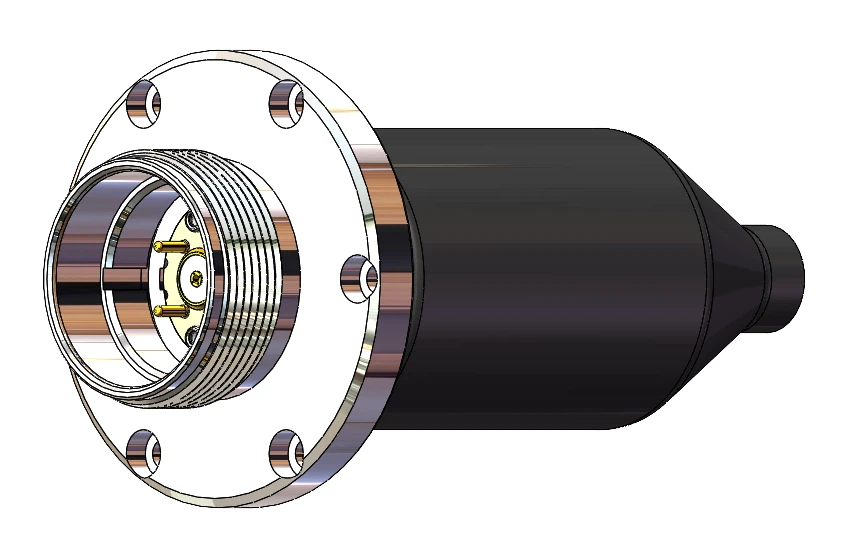

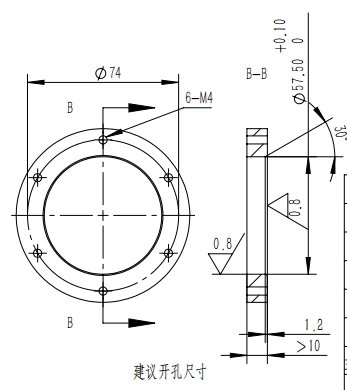

Socket Designs：

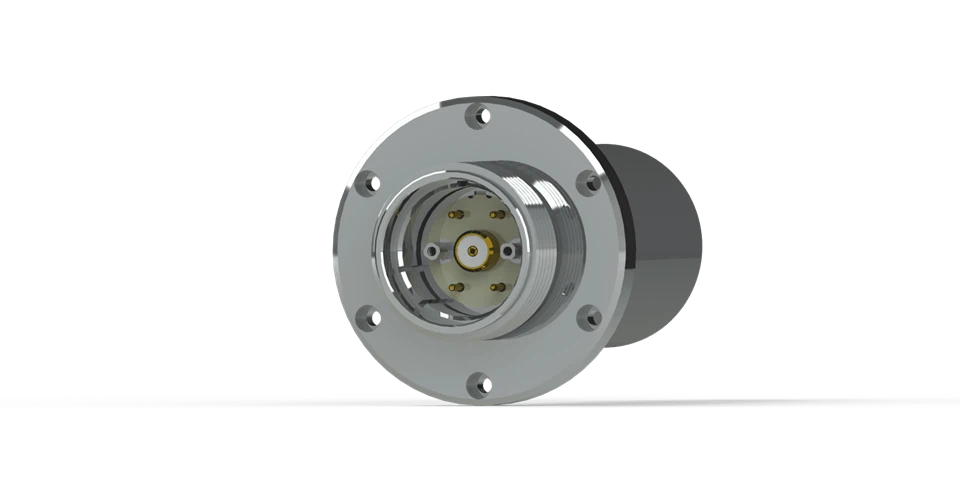

Sealing Cap Designs：











✔ Maintenance Optimized
Unique flush ferrule design and socket-side replaceable sleeves reduce downtime by 50% compared to traditional underwater connectors.

✔ Industry-Leading Signal Integrity
Ultra-low 0.25dB insertion loss @1550nm (low-loss option) ensures maximum data transmission efficiency.

✔ Hybrid Configuration Flexibility
Customize with up to 11 mixed cores (optical+electrical+RF) in a single compact connector.

✔ Deep-Sea Reliability
Titanium TC4 housing option and 60MPa pressure rating withstand the harshest subsea conditions.

✔ Proven Durability

500 mating cycles (seal replacement recommended every 100 cycles for optimal performance).





Q: How does the flush ferrule design improve maintenance?
A: The plug's fiber end-face aligns perfectly with its surface, allowing quick wipe-cleaning without disassembly. Combined with the socket's removable sleeve, this reduces typical cleaning time from 30 minutes to under 5 minutes.

Q: Can I use this for both power and data transmission?
A: Absolutely. The 2 optical + 5 electrical + 1 RF configuration shown is just one example – we can build any hybrid combination up to 11 cores.

Q: Why recommend seal replacement every 100 cycles?
A: While the connector itself lasts >500 cycles, replacing o-rings at 100-cycle intervals ensures consistent IP68 waterproofing in critical applications.

Q: Is titanium housing worth the upgrade?
A: Essential for:

Deepwater (>3000m) applications

High-salinity environments

Permanent installations where corrosion resistance is critical

Q: What makes your low-loss option superior?
A: Our 0.25dB @1550nm rating is 40% lower than industry-standard 0.4dB connectors, enabling longer unrepeatered spans.
