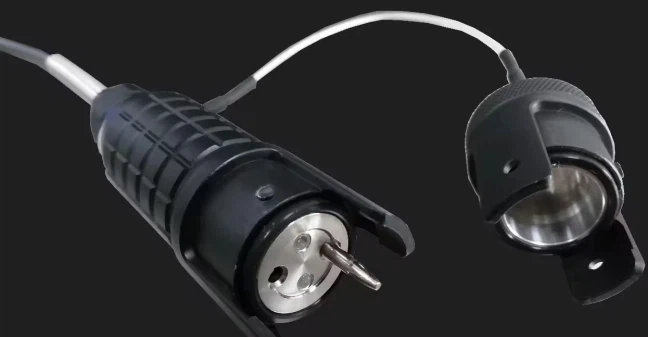

EB Series Expanded Fiber Optic Connector
EB series fiber optic connector is a fiber optic connector that meets the GJB1919 standard, including two kinds of movable connector and car wall connector. The shell is made of high-quality stainless steel material, with vibration resistance, pressure resistance, waterproof, salt spray resistance, more anti-pollution, dust and other excellent properties.
Description
Product Description
The EB Series fiber optic connector complies with the GJB1919 military standard and is available in two types: a plug-style connector and a bulkhead (panel-mount) version.
The connector housing is made from high-quality stainless steel, offering excellent resistance to vibration, pressure, water, salt spray, dust, and other harsh environmental factors. It is ideal for demanding applications that require superior environmental sealing and mechanical durability.
Features
|
Applications
|
Main technical index
| Insertion loss | ≤1.5dB (2-core) |
| Tensile | ≥1000N (main cable) |
| Mechanical life | ≥1000 times |
| Temperature shock | -45℃~+85℃ |
| Humidity | Complies with 1002 Type II in GJB1217-1991 |
| Vibration | Frequency (10 ~ 55) Hz, single amplitude 0.75mm |
| Protection level | IP67 |
| Salt spray | 5%NaCl, 96h; |
| Impact energy (N.m) | Acceleration 2490m/s2, duration 3ms |

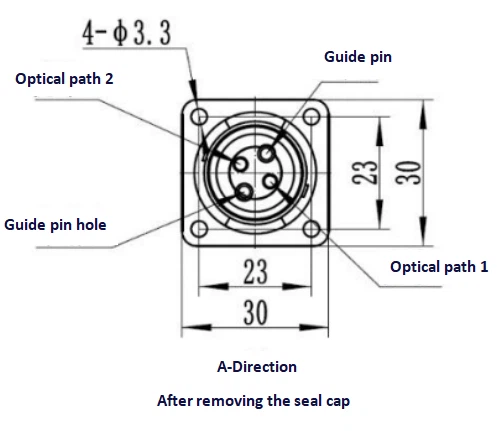

Socket opening size
why choose us
1.Quality Assurance
Our EB Series fiber optic connectors strictly comply with the GJB1919 military standard. Manufactured with high - quality stainless steel housings, they deliver outstanding resistance to vibration, pressure, water, salt spray, dust, etc., ensuring long - term reliability in harsh environments.
2. Innovative Design
Featuring a neutral bayonet locking mechanism for quick and secure mating, a through - wall sealing structure for dual - fiber connection, and a rod lens interface with excellent anti - contamination performance, our connectors offer superior functionality.
3. Diverse Application Expertise
With extensive experience in serving military fiber optic communication, tactical data networks, nuclear power environments, vehicle - mounted systems, and emergency deployments, we understand your specialized needs and provide tailored solutions.
If you are interested in our EB Series fiber optic connectors and want to know more details like product specifications, pricing, or customized solutions, please feel free to contact us. We are ready to provide professional support and help you find the most suitable connectivity solutions for your projects.
