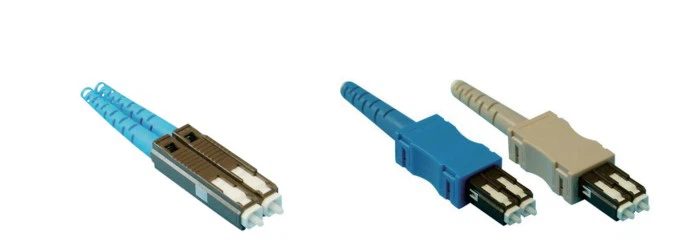

MU Fiber Optic Active Connector

The MU connector is based on the most commonly used SC connector. Its connector size is about half that of the SC connector and it adopts a push-pull design.

Send Inquiry

Download

Description

Product Description

The MU connector is based on the most commonly used SC connector. Its connector size is about half that of the SC connector and it adopts a push-pull design. The MU connector features a pre-assembled body and precision-molded housing that is spring-held in place via a floating ferrule on the outer diameter. MU connectors generally use 1.25mm diameter sleeves and self-retaining mechanisms. Their advantage is that they can achieve high-density installation. MU connectors are also widely used, including socket-type connectors for optical cable connection (MU-A series), backplane connectors with self-retaining mechanisms (MU-B series), and for connecting LD/PD modules and plugs Simplified sockets (MU-SR series), etc. As optical fiber networks advance towards DWDM technology with larger bandwidth and larger capacity, MU connectors have also developed rapidly.

Features

● High stability and reliability.
● Low insertion loss, high return loss.
● Excellent finish grinding standards.
● End face geometric parameters comply with GR-326Core.
● Ф0.9, Ф2.0, Ф3.0 single-core or double-core optical cables are optional.

Applications

● Telecom network
● Cable TV
● Gigabit Ethernet
● Active or passive equipment terminals
● Industrial, medical and military
● Electricity and petroleum industries

Product Parameter

Category	Indicator requirements
End face requirements	400X meets IEC 61300-3-35
Insertion loss	≤0.3dB
Return loss	≥45dB(SM, PC); ≥60dB(SM, APC)
Repeatability	≤0.2dB
Ferrule type	PC, UPC, APC floating optional
jacket	0.9Hytrel, 2.0/3.0mm PVC, armored empty pipe, etc. optional
Operating temperature	-40℃ ~ +85℃
