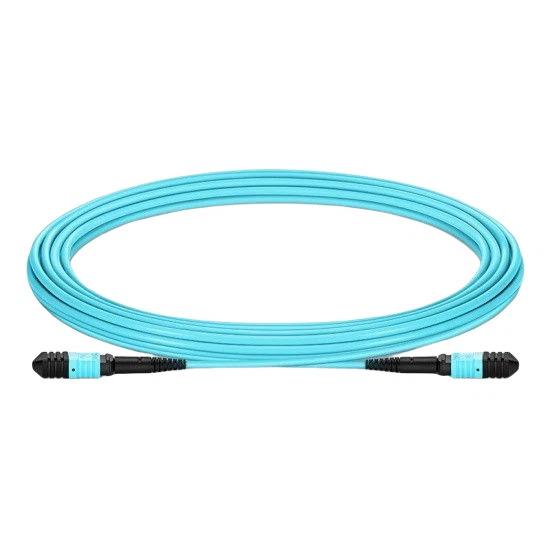

OM3 Fiber Patch Cord
Support 40G/100G network connection, high density, high precision, save wiring space, greatly improve the convenience of network maintenance, widely used in backbone network, optical fiber wiring, high-density data center environment.
Description
Product Description
Support 40G/100G network connection, high density, high precision, save wiring space, greatly improve the convenience of network maintenance, widely used in backbone network, optical fiber wiring, high-density data center environment.
Features
- The multi-mode OM3 MTP/MPO fiber jumper has the advantages of low plug loss, plug resistance, high temperature resistance and no deformation
- Insertion loss change rate ≤0.35dB, return loss ≥20dB
- Good interchangeability
- Excellent bending and tensile resistance
- Transmission high speed stability
- Conforms to TelcordiaGR-326-CORE standards
- Meet ROHS requirements
Applications
- A variety of high density applications
- Backbone network, optical fiber wiring, high-density data center environment
Optical Parameter
|
Connector |
MPO (Female) - MPO (Female) |
Grinding method |
UPC-UPC |
|
Fiber type |
OM3 50/125um |
wavelength |
850/1310nm |
|
Outer sheath material |
LSZH |
polarity |
Type B |
|
Insertion loss |
≤0.35dB |
Return loss |
≥20dB |
|
Minimum bending radius |
7.5mm |
Wire diameter |
3.0mm |
|
Attenuation value (850nm) |
≤2.3dB/km |
Attenuation value (1310nm) |
≤0.6dB/km |
|
Operating temperature |
-10°C~+70°C |
storage temperature |
-40°C~+85°C |
