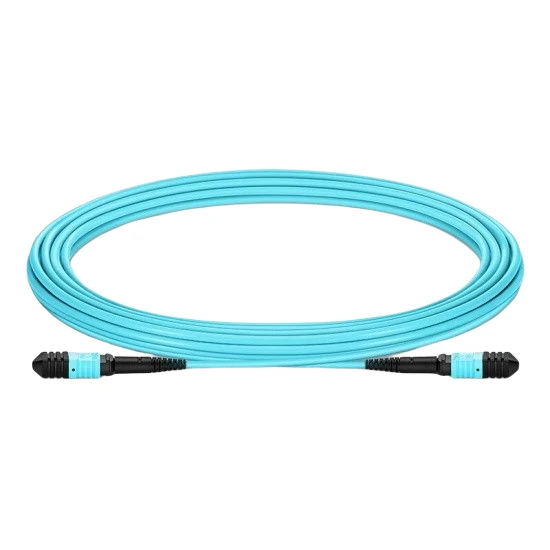

12-core MPO OM3 Fiber Connector
It supports 40G/100G network connection, has high density and high precision, saves wiring space, greatly improves the convenience of network maintenance, and is widely used in backbone networks, optical fiber wiring, and high-density data center environments.
Description
Product Description
It supports 40G/100G network connection, has high density and high precision, saves wiring space, greatly improves the convenience of network maintenance, and is widely used in backbone networks, optical fiber wiring, and high-density data center environments.
Features
Multi-mode OM3 MTP/MPO optical fiber patch cord has the advantages of low insertion loss, resistance to plugging and unplugging, and high temperature resistance without deformation.
Insertion loss change rate ≤ 0.35dB, return loss ≥ 20dB
Good interchangeability
Excellent bending resistance and tensile resistance
High-speed and stable transmission
Complies with TelcordiaGR-326-CORE standard
Comply with ROHS requirements
Applications
A variety of high-density applications.
Optical Parameter
|
Connector |
MPO (Female) - MPO (Female) |
Grinding method |
UPC-UPC |
|
Fiber type |
OM3 50/125um |
wavelength |
850/1310nm |
|
Outer sheath material |
LSZH |
polarity |
Type A |
|
Insertion loss |
≤0.35dB |
Return loss |
≥20dB |
|
Minimum bending radius |
7.5mm |
Wire diameter |
3.0mm |
|
Attenuation value (850nm) |
≤2.3dB/km |
Attenuation value (1310nm) |
≤0.6dB/km |
|
Operating temperature |
-10°C~+70°C |
storage temperature |
-40°C~+85°C |
