PM Dispersion Compensation Fiber Patch Cord



Polarization-maintaining (PM) dispersion compensating fiber jumpers are made of dispersion compensating fiber (DCF) and are suitable for applications that require precise control of system dispersion. Both ends of the polarization-maintaining (PM) dispersion-compensating fiber jumper are matched with a section of conventional device polarization-maintaining fiber to minimize loss when connected to other PM fiber jumpers. Both ends of the jumper adopt high-precision polarization-maintaining optical fiber connectors, which have low insertion loss and high return loss.

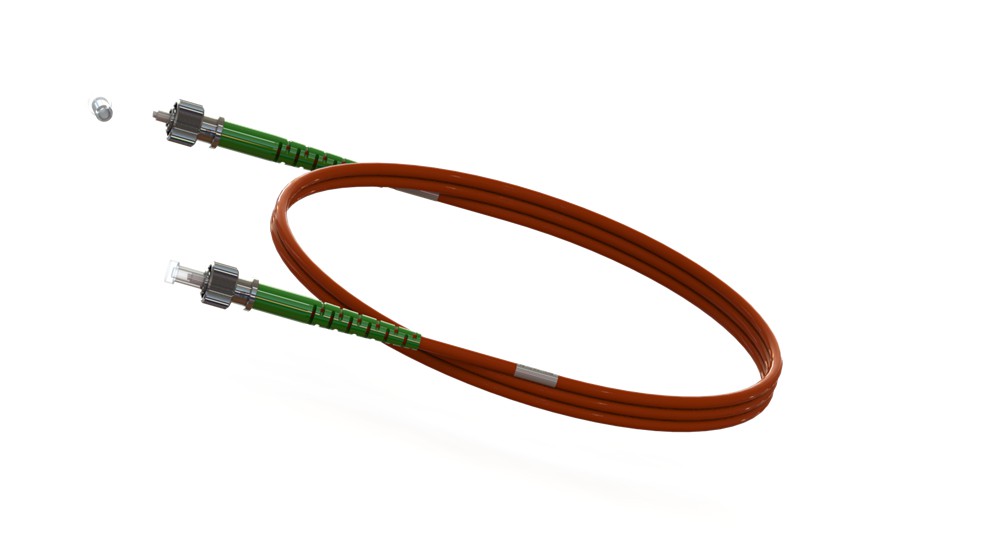

FC/APC Dispersion Compensated Fiber Patch Cable





• The compensation length can be customized .
• Supports fast axis, slow axis, axis alignment at any specified angle, and high extinction ratio.
• Lower loss and high return loss.
• Both ends are ordinary polarization-maintaining single-mode optical fibers, which can achieve low-loss access to the existing optical system.
• Both ends can be customized with commonly used polarization-maintaining connectors such as FC, SC, and LC.





• Dispersion adjustment
• PM DWDM system
• Optical fiber sensing and detection system
• Cable TV system

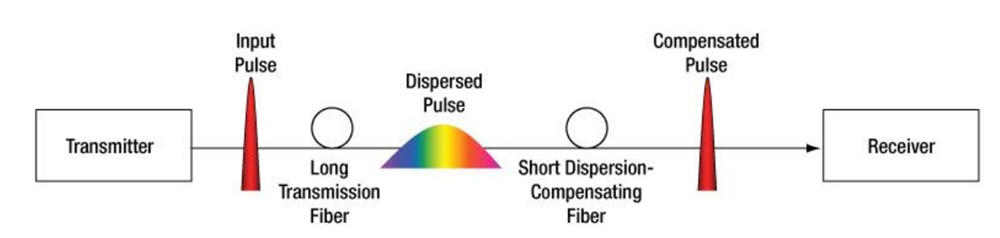

Schematic diagram of dispersion compensation in optical fiber transmission system

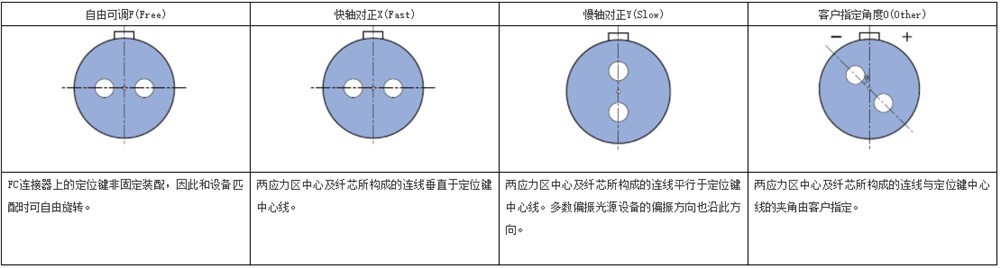

Provides a variety of shaft alignment methods, which can be customized according to customer needs.



How the stress axis works





PMDCF (Polarization Maintaining Dispersion Compensating Fiber)
Typical specifications @ 1550 nm
dispersion coefficient	-100 ± 10 ps/(nm·km)
dispersion slope	-0.34 ps/(nm2·km)
relative dispersion slope	0.0034 ± 0.0004 nm-1
group velocity dispersion	1.275 x 105 fs2/m
β3/β2a	-25 fs
Optical parameters
Working wavelength (slow axis)	1510-1620nm
Mode Field Diameter (MFD)	5 µm
Effective area	20 µm 2
Cutoff wavelength (slow axis)	1400nm
attenuation	0.40 dB/km (Typical) 0.45 dB/km (Max)
Beat length	5mm
Differential group delay	2ps/m
Splice loss	1 dB
Geometric parameters
Cladding diameter	125 µm ± 1.5 µm
Coating diameter	250 µm ± 10 µm





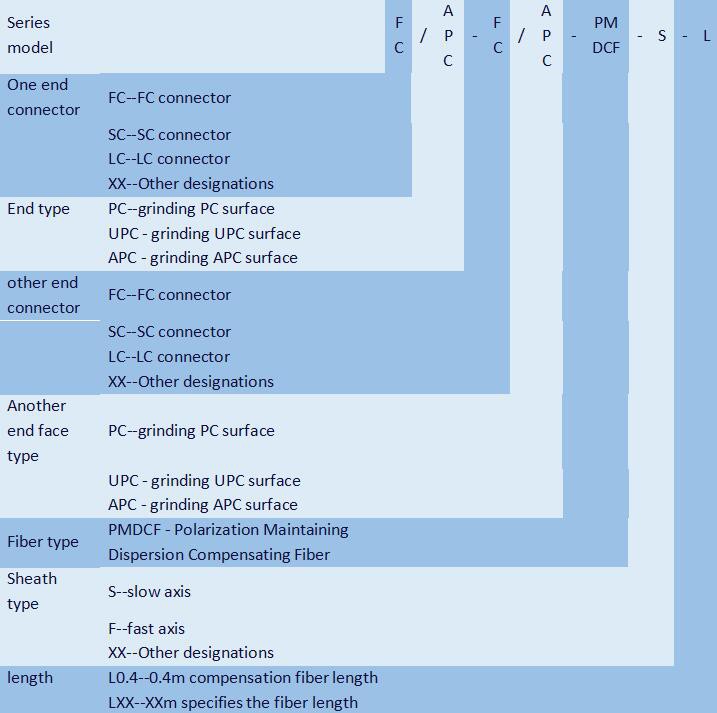

Category	Indicator requirements
End face requirements	400X meets IEC 61300-3-35
Insertion loss	≤2.5dB
Return loss	UPC＞50dB, APC＞60dB
Extinction Ratio	>18dB
Jacket	3.0mm PVC, armored empty pipe, etc. optional
Operating temperature	-40℃ ~ +85℃
Implementation standards	YD_T, IEC, Telcordia
