WM-MC micro circular series



• Hydrostatic pressure :70Mpa
• Nominal voltage:

    2, 3 & 4 core 600VDC

    5, 6, 8, 10, 12, 16&21 core 300VDC

• Nominal current :10A/5A
• Insulation resistance :>200MQ
• Contact resistance :<10mQ
• Wet pull times :>500 times

• Operating Temperature:

  Underwater: -4°C to +60°C

  In Air: -40°C to +60°C





Insulator: Neoprene

Socket Housing: 316L stainless steel (optional copper alloy)

Contacts: Gold-plated copper alloy

Positioning Pins: 316L stainless steel

O-Rings: Nitrile rubber

Cable: Neoprene or polyurethane-sheathed; conductor: 18 AWG / 16 AWG standard

Socket Tail Wires: PTFE-insulated, 18 AWG





Number of cores	Current-carrying
HCBH / IL-2	10A ( G2 5A )
HCBH / IL-3	10A ( G2 5A )
HCBH / IL-4	10A ( G2 5A )
HCBH / IL-5	5A
HCBH / IL-6	5A
HCBH / IL-8	5A
HCBH / IL-10	5A
HCBH / IL-12	5A
HCBH / IL-16	5A
HCBH / IL-21	5A

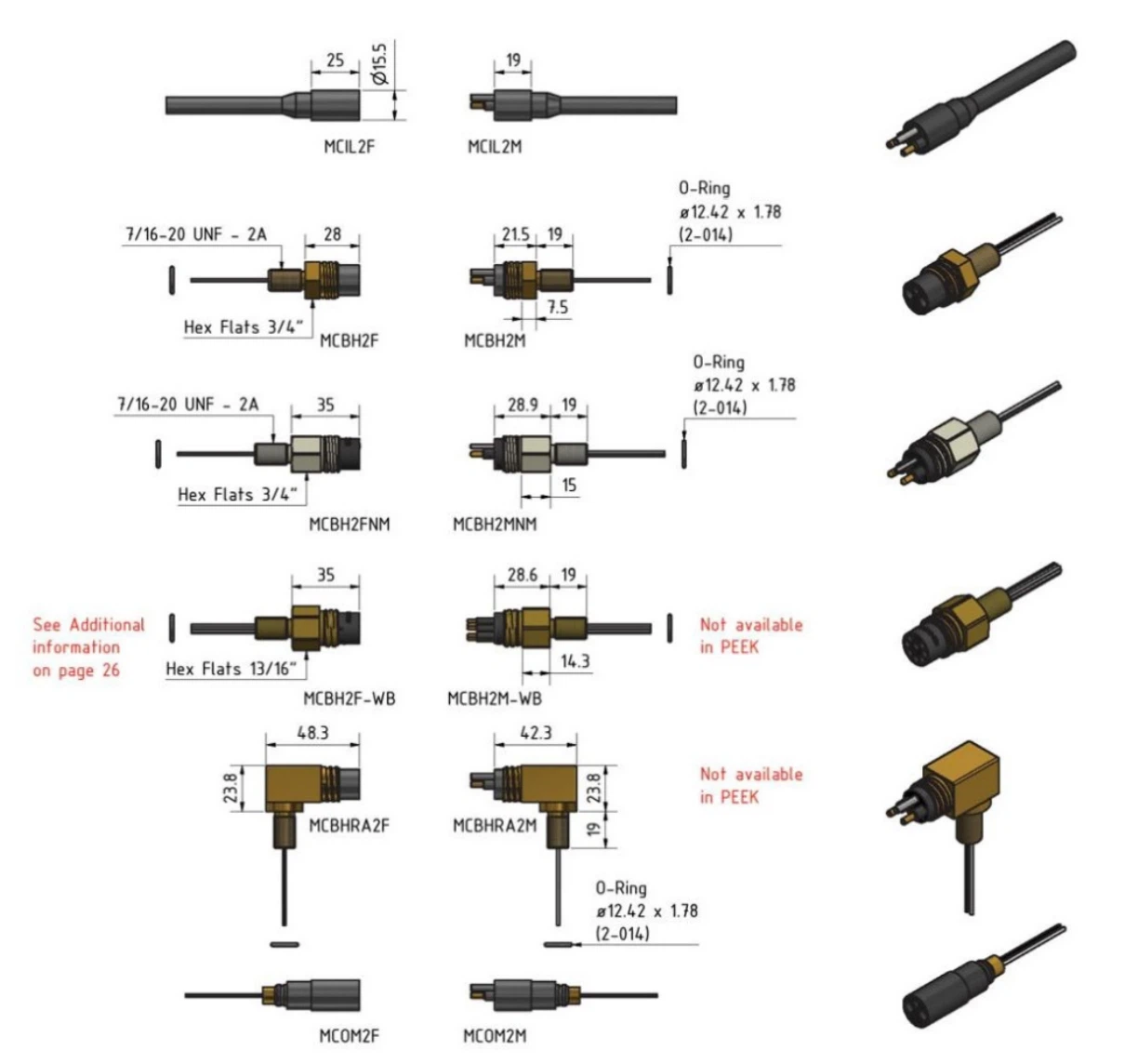

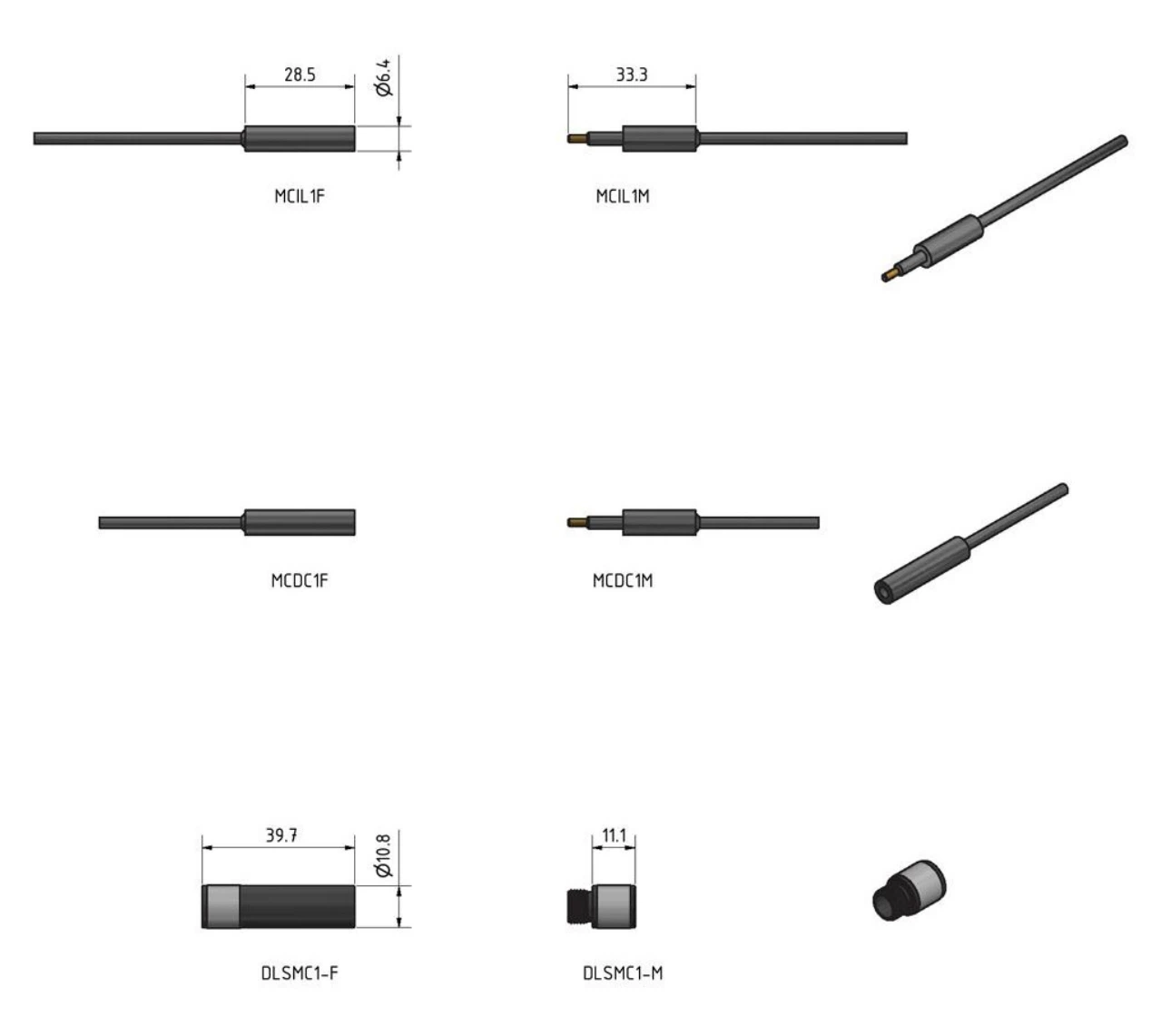

WM-MC Tiny Round - 2,3,4,5,6, 8-core and G2 2,3,4-core dimensions



WM-MC Small Circle - 2.3.4.5.6.8 Core and G2 2,3,4 core contact arrangement



Pin face

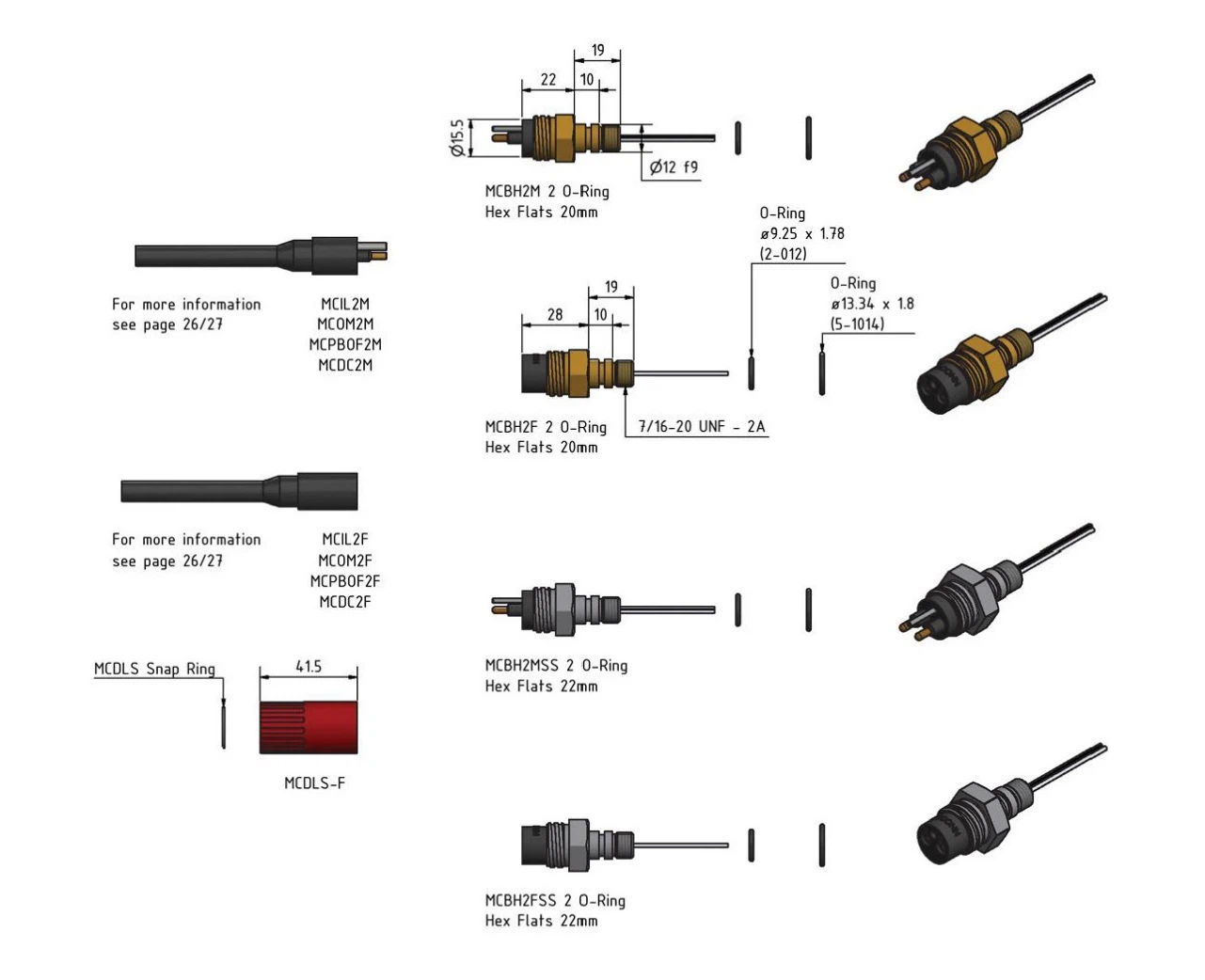

WM-MC Tiny round double 0-2,3,4,5,6, 8-core and G2 2,3, 4-core form factors



WM-MC Tiny circular double 0 turns -2,3,4,5,6, 8-core and G2 2,3, 4-core contact arrangement

Pin face





WM-MC Tiny round - 10,12,16 core dimensions



WM-MC Tiny round -10,12,16 core contact arrangement

Pin face



WM-MC Tiny round double 0-10,12,16 core dimensions

WM-MC tiny circular double 0-10,12, 16-core contact arrangement

Pin face

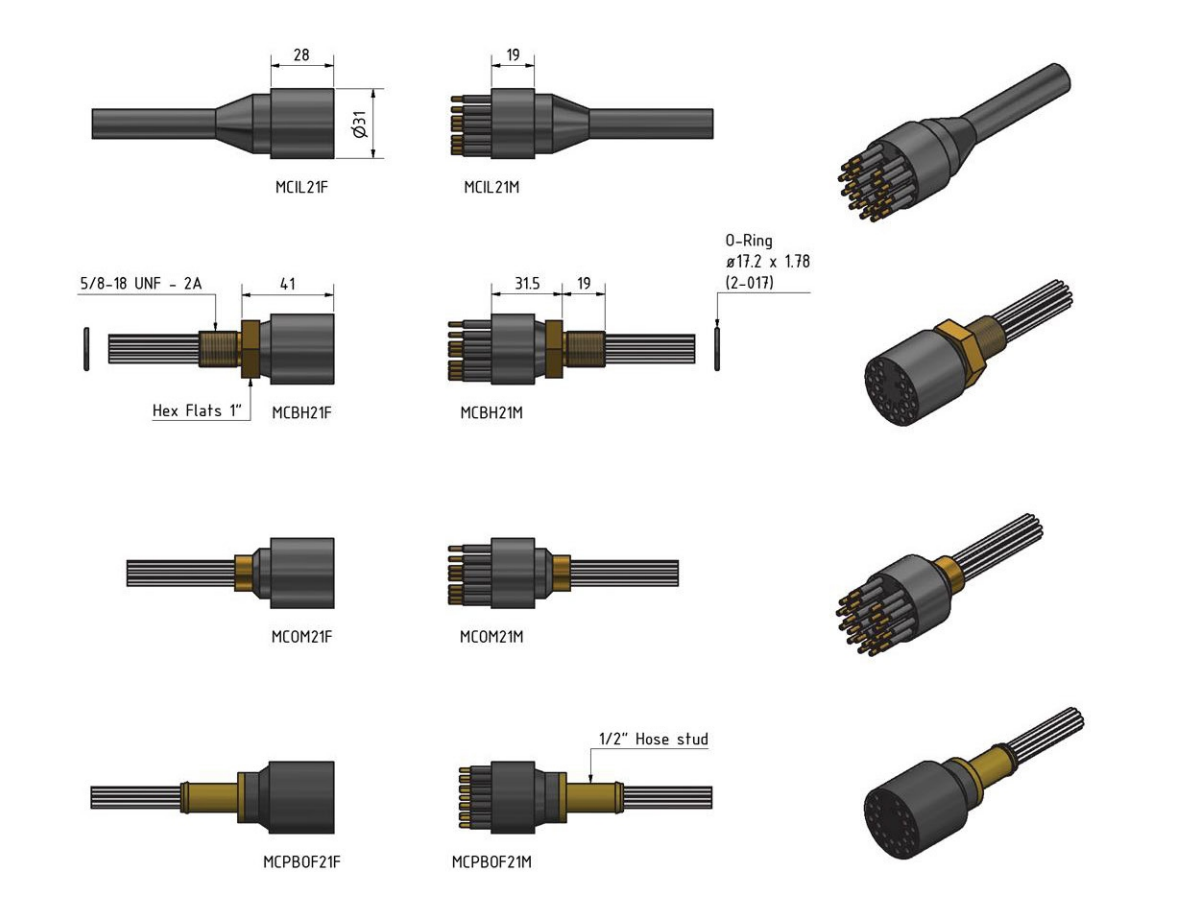

WM-MC Small round -21 core dimensions

WM-MC Small round - 21-core contact arrangement

Pin face
