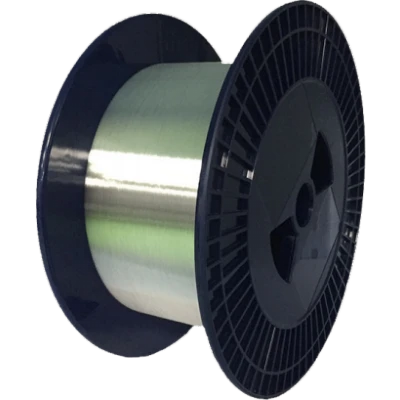

PM(1310&1550)WaveGuide Panda PM Fiber
Excellent Geometric Uniformity and Symmetry
Excellent Polishability
Excellent Mechanical and Coating Reliability
Description
Key Features
- Excellent Geometric Uniformity and Symmetry
- Excellent Polishability
- Excellent Mechanical and Coating Reliability
- Excellent Long-Term Reliability
Applications
- Fiber Coil
- Lithium Niobate Waveguide Pigtail
- Polarization-Sensitive Devices
- Fiber Optic Polarization Sensor
Product Introduction
Company's Panda PM products for FOG waveguide applications are suitable for fiber optic gyroscopes and other polarization-dependent devices. Optimized for device-level requirements, the fiber emphasizes geometric symmetry and polishability. While maintaining polarization performance, it offers excellent polishability, making it a PM suitable for both coil winding and polishing.
Unique Technology
Company is a high-tech enterprise that has achieved a fully closed-loop capability encompassing fiber coil winding equipment, fiber coil winding, fiber optic gyroscopes, fiber optic inertial products, MEMS inertial products, IMU electronics and software, and IMU test and calibration equipment. Through comprehensive control of upstream and downstream processes, product quality is effectively improved and system costs are reduced. The company complies with the ISO 9001 quality management system and employs rigorous processes to ensure product performance reliability and consistency.
Parameters
Panda PM for Waveguide Specifications
|
Fiber Type |
PM1310_ 125/250 |
PM1310_ 80/165 |
PM1550_ 125/250 |
PM1550_ 80/165 |
|
Operating Wavelength (nm) |
1310 |
1310 |
1550 |
1550 |
|
Cut-off Wavelength (nm) |
1100 ~ 1290 |
1100 ~ 1290 |
1290 ~ 1520 |
1290 ~ 1520 |
|
Mode Field Diameter (μm) |
6.0±0.5 |
6.0±0.5 |
6.5±0.5 |
6.5±0.5 |
|
Attenuation (dB/km) |
≤0.6 |
≤0.6 |
≤0.6 |
≤1.0 |
|
Beat Length (mm) |
2.5 ~ 4.0 |
2.5 ~ 4.0 |
2.8 ~ 5.0 |
2.8 ~ 5.0 |
|
Crosstalk (dB/4 m) |
≤-30 |
≤-30 |
≤-30 |
≤-30 |
|
Crosstalk (dB/100 m) |
≤-30 |
≤-30 |
≤-30 |
≤-30 |
|
Cladding Diameter (μm) |
125±1 |
80±1 |
125±1 |
80±1 |
|
Coating Diameter (μm) |
245±5 |
165±5 |
245±5 |
165±5 |
|
Cladding Non-Circularity (%) |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
|
Core/Cladding Concentricity Error (μm) |
≤0.5 |
≤0.5 |
≤0.5 |
≤0.5 |
|
Coating Structure |
Double-layer UV-Cured Acrylate Resin |
|||
|
Operating Temperature (°C) |
-45 ~ +85 |
-45 ~ +85 |
-45 ~ +85 |
-55 ~ +95 |
|
Proof Test Level (kpsi) |
100 |
100 |
100 |
100 |
Customization Information
Customization is available for operating wavelength, mode field diameter, beat length, geometric dimensions, coating material, and proof test level according to customer requirements.
