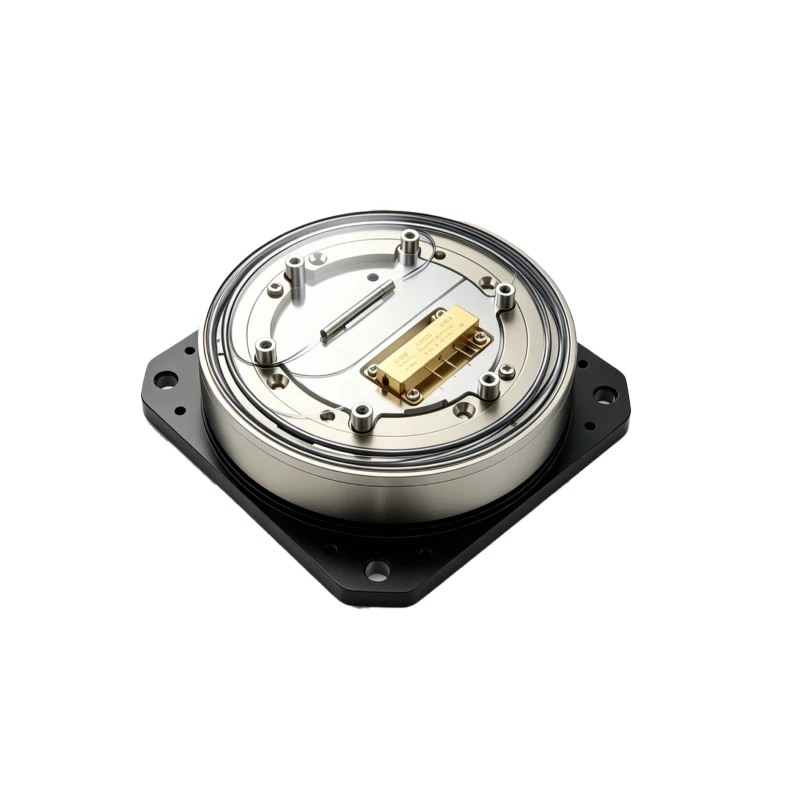

Standard FOG Optical Module
Compact Structure, Easy to Assemble
High Precision and High Reliability
Cost-Effective with Volume Delivery
Description
Key Features
- Fiber Coil + MIOC
- Compact Structure, Easy to Assemble
- High Precision and High Reliability
- Cost-Effective with Volume Delivery
Applications
- FOG
Product Introduction
Company's FOG optical module is a modular fiber-coil-plus-MIOC assembly designed for fiber optic gyroscopes. The fiber coil and MIOC are spliced together and enclosed in a single housing, forming a standalone integrated sensing component with an electrical interface and a single-mode pigtail. Users simply connect the interface to the signal processing circuit and fusion-splice the pigtail to the PIN-FET with a standard single-mode splicer-no costly PM fiber splicer needed to join the coil and MIOC's PM fibers.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
OM60/70/98/120 FOG Optical Module Specifications
|
Item |
Specifications |
|||
|
Model |
OM60 |
OM70 |
OM98 |
OM120 |
|
Dimensions (mm) |
Φ60*19 |
Φ70*24 |
Φ98*27 |
Φ120*26 |
|
Operating Wavelength (nm) |
1310 |
1310 |
1550 |
1550 |
|
Fiber Coil Length (m) |
500 |
550 |
1460 |
2220 |
|
MIOC Half-Wave Voltage (V) |
≤4 |
≤4 |
≤4 |
≤4 |
|
FOG Target Accuracy (°/h) |
0.1(10s avg.) |
0.05(10s avg.) |
0.015(10s avg.) |
0.003(100s avg.) |
|
Bias Peak-to-Peak (°/h) |
1 |
0.8 |
0.2 |
0.1 |
|
Magnetic Sensitivity (°/h/Gs) |
0.1 |
0.02 |
0.02 |
0.02 |
|
Operating Temperature (°C) |
-45 ~ +70 |
|||

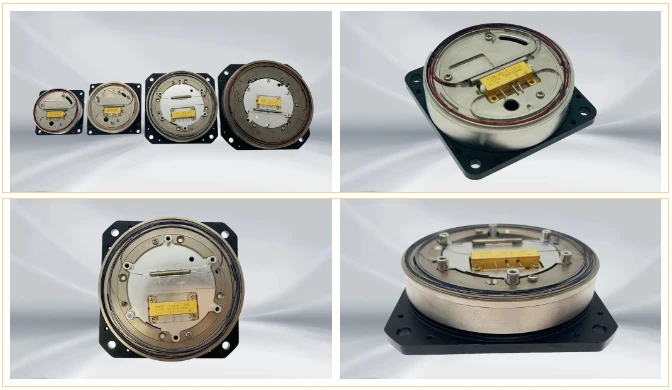

Product Sample Image
Customization Information
- Custom dimensions, length, and performance available upon request
- FOG assembly solutions available
