Faraday Rotation Mirror



The Faraday Rotation Mirror is a passive device that provides 90 degree rotation to the polarization state of the input light.The FRM offers excellent performance including the ow insertion loss and environmental stability.This FRM can be manufactured in 80/165um fine diameter fiber,MFD value 6um. This product used advanced technology to ensure low insertion loss of products.











Parameter	Unit	Value
Central Wavelength (λc)	nm	980/1064/1310/1550
Working Wavelength range	nm	λc±50
Typical Insertion loss	dB	0.7
Maximum Insertion loss	dB	0.8
Faraday Rotation Angle (Single pass)	Degree	45
Maximum Rotation Angle Tolerance	Degree	±3
Maximum Polarization Dependent Loss		0.1
Fiber Type	dB	125/250um fiber or 80/160um fine diameter fiber,MFD value 6um
Operating Temperature	℃	-5 to+70
Storage Temperature	℃	-40 t0+85





FRM-①①-②-③-④-⑤-⑥

①：Wavelength	②：Fiber Type	③:Package Diameter	④：Tube Type	⑤：Connector Type	⑥：Fiber Length

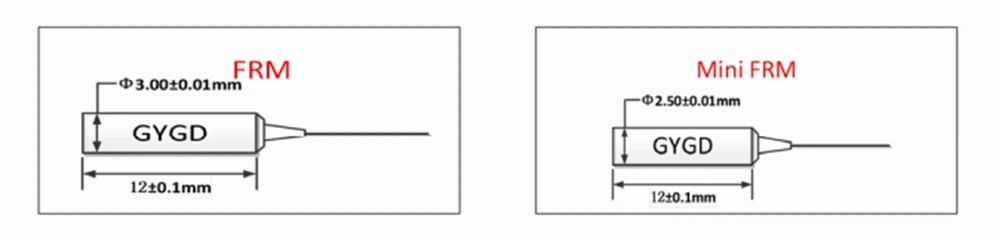

55 - 1550nm	1-SMF-28E	1- 3.0 x12 mm	B- 250um bare fiber	1-FC/UPC	1-1.0m
98 - 980nm	S -Specify	2- 2.5 x12 mm	L- 900um loose tube	2-FC/APC	S- Specify
31 - 1310nm			S -Specify	3-SC/UPC
64-1064nm				4 -SC/APC
SS - Specify				N -None





• Precision Polarization Control

Our Faraday Rotation Mirror offers a precise 45° single - pass rotation (with ±3° tolerance) for input light polarization. Using advanced tech, it ensures low insertion loss (typical 0.7dB, max 0.8dB) and stable performance across wavelengths (980/1064/1310/1550nm), critical for polarization - sensitive systems.

• Flexible Customization

We support diverse fiber types (125/250μm, 80/160μm fine diameter), package diameters (3.0x12mm, 2.5x12mm), and connectors (FC/UPC, FC/APC, etc.). Via the ordering system, you can tailor wavelength, tube type, and fiber length-no generic "one - size" limits.

• Harsh - Environment Reliability

With an operating temp range of - 5°C~+70°C and storage temp of - 40°C~+85°C, our FRM handles extreme conditions. Low polarization - dependent loss (0.1dB max) ensures consistent performance in telecom, laser, or sensing applications-reducing downtime risks.





Q1: How does the 45° rotation benefit my system?

A1: The 45° rotation (Faraday effect) helps in polarization - diverse setups (e.g., coherent detection, interferometry). It ensures light returns with a rotated polarization, minimizing signal fading and improving system stability-key for high - precision applications.

Q2: Can I use it with both standard and fine - diameter fibers?

A2: Yes! We support 125/250μm (standard) and 80/160μm (fine - diameter) fibers. Just select "1 - SMF - 28E" or specify fine - diameter in the ordering system-we'll match your fiber type.

Q3: Is it suitable for outdoor telecom networks?

A3: Yes. Its wide temp range (- 5°C~+70°C operating, - 40°C~+85°C storage) and rugged design (loose tube, bare fiber options) make it ideal for outdoor deployments. The low insertion loss also ensures reliable long - haul signal transmission.



If you are interested in our product and want to explore custom specs (e.g., fiber type, connector) or verify compatibility with your system, contact us today. Let's build a precise, reliable solution for your polarization - control needs!
