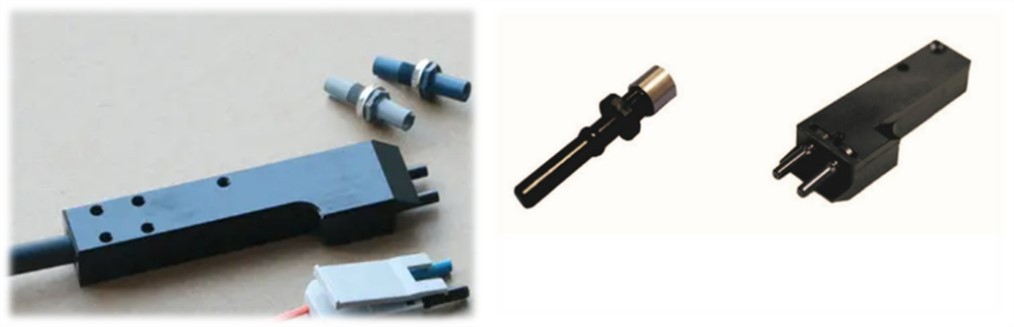

Wind Power Cable Assemblies
It is mainly used in BACHMANN wind turbine fiber optic communication system, between wind turbines, engine control and tower bottom control.
Description
Product Description
It is mainly used in BACHMANN wind turbine fiber optic communication system, between wind turbines, engine control and tower bottom control.
Features
• Using OFS V-PIN 200/230 fiber optic ferrule to provide high-standard butt loss.
• It adopts HPCF 200/230um TPU sheath optical cable, which has excellent bending and tensile properties.
• Waterproof, dustproof, meet IP67 operating environment.
• The push-pull bayonet connection method is adopted, and the connection is stable and reliable.
Applications
• Wind power
Product Parameters
|
Categories |
Parameter |
Unit |
Value |
|
Transmission distance |
length |
m |
90-120m |
|
optical performance |
Insertion loss |
dB |
≤1.0+8.0/Km*L@850nm |
|
Optical end face |
/ |
200X,comply with IEC 61300-3-35 |
|
|
Mechanical Environmental Performance |
Appearance |
/ |
The ferrule is not damaged and the end face is clean; the surface of the parts is smooth and clean without burrs; the printing of the optical cable is clear and the outer protection is not damaged |
|
tensile strength |
N |
100N,1min |
|
|
Operating temperature |
℃ |
-40～+80 |
