Special Wavelength Coupler



The Special Wavelength Coupler is a passive optical component specifically designed for combining or splitting optical signals at non-standard wavelengths, such as 980 nm, 1480 nm, and 1590 nm. Unlike traditional WDMs limited to 1310/1550 nm, these couplers utilize custom single-mode fiber and are optimized for wavelength-specific performance in specialized optical systems.

Tailored to meet customer-defined coupling ratios and optical requirements, each unit is built with precision thin-film technology and undergoes rigorous quality control. The product is compliant with Telcordia GR-1221-CORE standards and meets RoHS environmental regulations.







● Custom wavelength support: 980 / 1480 / 1590 nm

● Flexible coupling ratio options

● Minimal excess loss and stable signal transfer

● Low polarization sensitivity (PDL)

● Compact packaging suitable for integration into micro-optical modules





● Pump/signal combining in EDFAs

● Compact transmitter/receiver modules

● Customized fiberoptic sensor systems

● Lab-grade optical test platforms

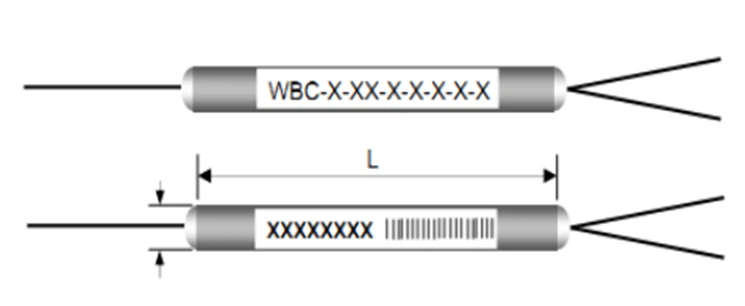

Package Dimensions
Package A(Mini)	2.4mm x 35mm stainless steel tube
Package A	3.0mm x 48mm stainless steel tube
Package B	3.0mm x 55mm stainless steel tube
Package C	90mm x16mm x 9mm case
Pigtail Style
Package A	250μM bare fiber
Package B	900μM loose tube
Package C	900μM loose tube or 2mm/3mm cable



*Other package dimensions can be made on customer request.





WBC-	x-	X2-	XX-	XX-	X-	XX-	xx-	x
	P:Premium A:Grade A X: On request	12:1X2 22:2X2	98:980nm 48:1480nm	01: 01:99 02: 02:98 …… 50: 50:50	1: 1 meter x: on request	25:250μM Fiber 09:900μM Loose Fiber	SC:SC/UPC SA:SC/APC ...... 00:no connect	A: A B: B C:C
	Grade	Port number	Operation Wavelength	coupling Ratio	Fiber length	length Fiber type	Connect Type	Dimension

EX:WBC-P-12-98-50-1-09-00-B

→ Premium-grade 1×2 coupler, 1480 nm, 1:99 split, 1m 250μm fiber, SC/APC connector, Package B.





1. Custom Wavelength Support
Unlike standard couplers, our products are optimized for non-traditional wavelengths such as 980 nm, 1480 nm, and 1590 nm - perfect for niche or advanced optical applications.

2. Flexible Coupling Ratio Options
Whether you require 1:99, 50:50, or a fully customized split ratio, we manufacture to your specifications with high accuracy and repeatability.

3. High Compatibility with EDFA and Pump Systems
Ideal for erbium-doped amplifier modules and pump laser applications, these couplers ensure efficient power management across critical bands.

4. Compact and Modular Design
Our stainless steel or ABS enclosures come in multiple form factors to match integration requirements in tight or high-density layouts.

5. Telcordia & RoHS Certified
Fully compliant with GR-1221 reliability standards and environmental RoHS directives, making them suitable for telecom-grade deployments.

6. Fast Lead Time and Global Customization Service
We support global projects with quick prototyping and volume production, offering tailored solutions for system integrators and OEM clients.
