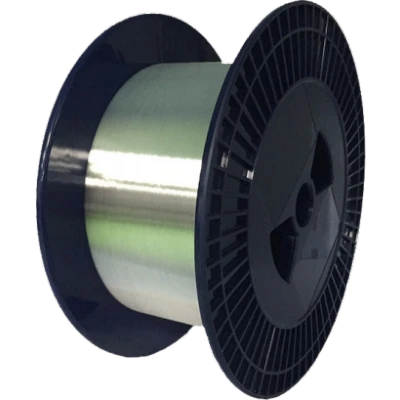

G657A2 Low Water Peak Bend-Insensitive Single-Mode Fiber
Extended Repeater Spacing
Increased Redundancy, Reduced Cost
Reduced Installation Rework
Description
Key Features
- Ultra-Low Loss
- Low Bending Loss
- Improved OSNR, Support 400Gb/s+
- Extended Repeater Spacing
- Increased Redundancy, Reduced Cost
- Reduced Installation Rework
- Hydrogen Aging Resistance
Applications
- Multi-Protocol Compatibility
- WDM Compatible
- Three-Tier Network
- Integrated Services
- High-Speed Ultra Long Haul Transmission
- All-Fiber Compatible
Product Introduction
Company low-water-peak bend-insensitive single-mode fiber combines excellent bending resistance with low water peak characteristics, enabling full O-E-S-C-L band (1260–1625 nm) transmission. The fiber ensures reliable L-band operation and easy installation, especially in FTTH networks along tight corners. Its mode field diameter matches standard G.652 fiber, achieving low splice and insertion loss, fully meeting network capacity and flexibility demands. It meets or exceeds ITU-T G.652.D/ G.657.A1/ G.657.A2/ G.657.B2 and IEC 60793-2-50 B1.3/ B6.a1/ B6.a2/ B6.b2 specifications.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
G657A2 Low Water Peak Bend-Insensitive Single-Mode Fiber Specifications
|
Parameter |
Condition |
Value |
|
|
Optical Characteristics |
|||
|
Attenuation [dB/km] |
1310nm |
≤0.35 |
|
|
1383nm(after hydrogen aging) |
≤0.35 |
||
|
1460nm |
≤0.25 |
||
|
1490nm |
≤0.23 |
||
|
1550nm |
≤0.21 |
||
|
1625nm |
≤0.23 |
||
|
Attenuation Variation vs. Wavelength [dB/km] |
1285~1330nm, relative to 1310nm |
≤0.03 |
|
|
1525~1575nm, relative to 1550nm |
≤0.02 |
||
|
Zero-Dispersion Wavelength(λ0) [nm] |
-- |
1300~1324 |
|
|
Zero-Dispersion Slope(S0) [ps/(nm2·km)] |
-- |
≤0.092 |
|
|
PMD Coefficient(PMD) [ps/√km] |
Maximum per Fiber |
-- |
≤0.1 |
|
Fiber Link Value(M=20,Q=0.01%) |
-- |
≤0.06 |
|
|
Typical Value |
-- |
0.04 |
|
|
Cable Cut-off Wavelength( λcc) [nm] |
-- |
≤1260 |
|
|
Mode Field Diameter(MFD) [nm] |
1310nm |
8.4~9.2 |
|
|
1550nm |
9.3~10.3 |
||
|
Effective Group Refractive Index(Neff) |
1310nm |
1.466 |
|
|
1550nm |
1.467 |
||
|
Point Discontinuity [dB] |
1310nm |
≤0.05 |
|
|
1550nm |
≤0.05 |
||
|
Parameter |
Condition |
Value |
|
|
Geometrical Characteristics |
|||
|
Cladding Diameter [μm] |
-- |
125.0±0.7 |
|
|
Cladding Non-Circularity [%] |
-- |
≤0.7 |
|
|
Coating Diameter [μm] |
-- |
235~245 |
|
|
Coating/Cladding Concentricity Error [μm] |
-- |
≤12.0 |
|
|
Coating Non-Circularity [%] |
-- |
≤6.0 |
|
|
Core/Cladding Concentricity Error [μm] |
-- |
≤0.5 |
|
|
Curl (Radius) [m] |
-- |
≥4 |
|
|
Delivery Length [km/spool] |
-- |
Up to 50.4 |
|
|
Environmental Characteristics 1310nm, 1550nm and 1625nm |
|||
|
Temperature-Induced Attenuation [dB/km] |
-65℃ to 85℃ |
≤0.05 |
|
|
Temperature-Humidity Cycling Attenuation [dB/km] |
-10℃ to 85℃,98% Relative Humidity |
≤0.05 |
|
|
Water Immersion Attenuation [dB/km] |
23℃, 30 days |
≤0.05 |
|
|
Damp Heat Attenuation [dB/km] |
85℃,85%Relative Humidity,30 days |
≤0.05 |
|
|
Dry Heat Aging [dB/km] |
85℃,30 days |
≤0.05 |
|
|
Mechanical Characteristics |
|||
|
Proof Test Level |
Absolute Force [N] |
-- |
≥9.0 |
|
Strain [%] |
-- |
≥1.0 |
|
|
Stress [kpsi] |
-- |
≥100 |
|
|
Macro-Bending Loss [dB] |
10turns,radius15mm |
1550nm |
≤0.03 |
|
10turns,radius15mm |
1625nm |
≤0.1 |
|
|
1turns,radius10mm |
1550nm |
≤0.1 |
|
|
1turns,radius10mm |
1625nm |
≤0.2 |
|
|
1turns,radius7.5mm |
1550nm |
≤0.5 |
|
|
1turns,radius7.5mm |
1625nm |
≤1.0 |
|
|
Coating Strip Force [N] |
Typical Avg. |
1.5 |
|
|
Peak |
1.3~8.9 |
||
|
Dynamic Fatigue Parameter (nd) |
-- |
≥20 |
|
