780nm-1650nm PM Fiber Connector
Polarization-maintaining optical fiber jumper (pigtail) is a type of optical fiber connector. One or both ends use standard optical fiber movable connectors. Polarization-maintaining fiber is used and the stress axis is accurately aligned to make the fiber jumper (pigtail).
Description
Product Description
Polarization-maintaining optical fiber jumper (pigtail) is a type of optical fiber connector. One or both ends use standard optical fiber movable connectors. Polarization-maintaining fiber is used and the stress axis is accurately aligned to make the fiber jumper (pigtail). We The polarization-maintaining optical fiber jumpers produced by our company use imported polarization-maintaining optical fiber movable connectors. The products have low loss, high extinction ratio and return loss. Fiber end-face AR coating can also be provided according to customer needs for fiber-to-free space coupling optimization.
FC/APC PM Fiber Patch Cord
SC/APC-SC/PC PM Fiber Patch Cord
Features
● Covering multiple communication wavelengths such as 780nm, 850nm, 980nm, 1064nm, 1310nm, 1550nm, 1650nm, etc.
● The connector adopts imported connector parts, with low loss and high extinction ratio.
● Provide fast axis, slow axis, and axis alignment at any specified angle to meet different customer needs.
● Connectors are available in various models such as FC, SC, and LC, and support customization of non-standard (ladle pin) polarization-maintaining ends.
● Fiber end faces can be provided with PC, UPC, APC or customized grinding angles.
Applications
● Related optical detection and applications
● Optical fiber sensing system
● Medical testing equipment
● Aviation and aerospace communication equipment
Alignment method

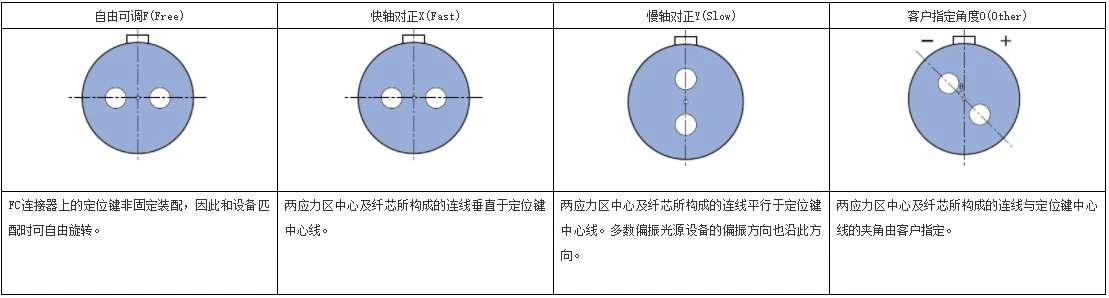

Provides a variety of shaft alignment methods, which can be customized according to customer needs.
How the stress axis works
Connector parameters
|
Category |
Indicators |
Unit |
||
|
Central wavelength |
780nm 850nm |
980nm 1060nm 1064nm |
1310nm 1550nm 1650nm |
nm |
|
Connector type |
FC\SC\LC or customized |
/ |
||
|
Insertion loss |
≤1.0 |
≤0.8 |
≤0.5 |
dB |
|
clawback loss |
＞50 (PC), ＞60(APC) |
dB |
||
|
Extinction Ratio |
≥23 |
dB |
||
|
Interchangeability |
≤0.2 |
dB |
||
|
Repeatability |
≤0.2 |
dB |
||
|
Number of plugs and unplugs |
＞1000 |
Times |
||
|
Fiber type |
PM850 fiber |
PM980 fiber |
PM1310 fiber PM1550 fiber |
/ |
|
Withstand power (CW) |
300 |
mW |
||
|
tensile load |
≥5(0.9 optic cable), ≥50(3.0 optic cable) |
N |
||
|
Operating temperature |
-20 - +85 |
℃ |
||
