what is Fiber Optic Active Connector?
May 20, 2025
A Fiber Optic Active Connector differs from traditional passive connectors in that it contains electronic or optoelectronic components that actively transmit, receive, amplify, or convert signals within the optical link.
These connectors are used where signal integrity, monitoring, or conversion is required at the connection point - commonly in data centers, telecom networks, industrial sensing, and aerospace/military systems.

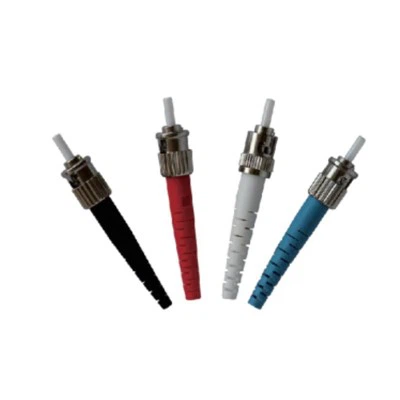

DEFINITION: Fiber Optic Active Connector
An active fiber optic connector is an interconnect device that integrates:
A standard optical connector interface (SC, LC, MPO, etc.)
Active electronics or optoelectronics, such as:
Laser/LED drivers
Photodiodes/APDs
Signal conditioning circuits
Media converters (e.g., optical-to-electrical)
It requires power to operate and typically includes PCB assemblies or fiber transceivers within or immediately behind the connector housing.
USE CASES & APPLICATIONS
| Application | Function of Active Connector |
|---|---|
| Active Optical Cables (AOC) | Converts electrical to optical signal and vice versa within the cable ends |
| High-speed data centers (100G/400G) | Maintains signal integrity over long distances (>10m) using integrated drivers |
| Industrial sensing (FO sensors) | Includes conditioning or modulation electronics near the sensor head |
| Optical Transceiver Modules | Integrates TX/RX optics with fiber connector (e.g., QSFP+, SFP+) |
| Optical Time-Domain Reflectometers (OTDR) | Embeds an emitter/detector for testing and monitoring |
STRUCTURE & INTEGRATION
A typical active connector may include:
Connector endface: LC, SC, MPO, or custom ferrule
PCB module: Contains laser driver, receiver amplifier
Photonic chip: Laser diode (DFB, VCSEL), photodiode (PIN/APD)
Interface: Electrical pins for power and data (3.3V/5V)
Housing: Shielded metal or thermally conductive plastic
Cooling: Passive (heat sink) or active (for >25G applications)
KEY SPECIFICATIONS
| Parameter | Typical Range / Values |
|---|---|
| Data Rates | 1 Gbps – 800 Gbps |
| Optical Wavelengths | 850 nm, 1310 nm, 1550 nm |
| Output Power | -1 to +3 dBm (single-mode) |
| Sensitivity | -10 to -28 dBm |
| Connector Types | LC, SC, MPO/MTP, QSFP-DD, SFP+ |
| Power Consumption | 0.5W – 4W (depending on speed) |
| MTBF | >10^6 hours |
| EMI/EMC Compliance | EN 55032 / FCC Class B |
EXAMPLES OF ACTIVE CONNECTOR PRODUCTS
| Product Name | Manufacturer | Description |
|---|---|---|
| Intel® AOC QSFP28 | Intel | 100G QSFP28 active optical cable with MPO connector |
| Finisar SFP+ AOC | Finisar | SFP+ 10G active optical cable |
| Molex zQSFP+ AOC | Molex | High-speed 400G active connector solution |
| OFS InstaPATCH® AOC | CommScope | Plug-and-play fiber trunk with active modules |
| Keysight USB OTDR Probe | Keysight | Portable OTDR probe with active fiber interface |
DESIGN CONSIDERATIONS
Thermal Management: High-speed active connectors need heat dissipation; consider airflow or metal shells.
Power Supply: Integrated or external 3.3V/5V DC; needs filtering to prevent noise.
EMI Shielding: For environments with interference (e.g., military, datacom).
Diagnostic Interface: Some support I2C/SFF-8472 for monitoring (temperature, power, signal loss).
Fiber Type Compatibility: SM or MM; ensure correct mode for link length and wavelength.
STANDARDS & COMPLIANCE
SFF-8431/SFF-8472 (SFP+ transceiver standards)
IEEE 802.3ba / 802.3bs (for 40/100/400G Ethernet over fiber)
Telcordia GR-468 (for optoelectronic reliability)
RoHS/REACH for environmental compliance
Active vs. Passive Connectors
| Feature | Passive Connector | Active Connector |
|---|---|---|
| Power Required | ❌ No | ✅ Yes |
| Function | Physical interconnection | Signal generation, amplification, conversion |
| Use Case | Splice, patch panel | Data center, AOC, fiber instrumentation |
| Cost | Low | Moderate to High |
| Complexity | Low | High (includes electronics, thermal, EMI design) |
