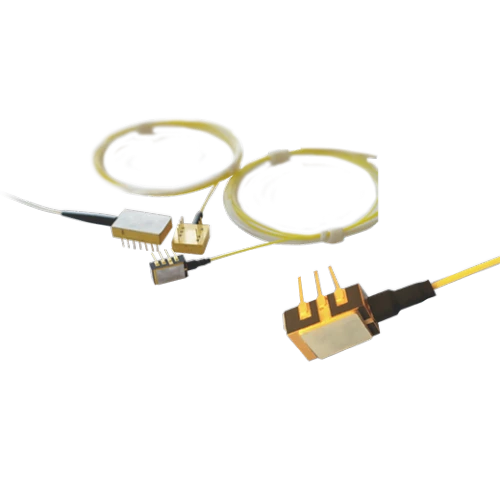

PIN-FET Optical Receiver Module
Low Noise, High Linearity
Bandwidth Tunable to Match Different Responsivities
Metallized Package with 8-pin/14-pin Interchangeable Compatibility
Description
Key Features
- Low Noise, High Linearity
- Bandwidth Tunable to Match Different Responsivities
- Metallized Package with 8-pin/14-pin Interchangeable Compatibility
- Suitable for Applications Requiring Good Performance Consistency and Reliable Quality
Applications
- FOG
- FOCS
- Other Fiber Optic Sensing
Product Introduction
Company's PIN-FET optical receiver module performs optoelectronic conversion and signal amplification. Its key specifications - linear responsivity, minimum and saturation optical power, dark voltage, bandwidth, and RMS noise voltage - make it well suited to analog transmission systems such as fiber optic sensing. In fiber optic gyroscopes (FOG), the module converts the weak optical signal returned from the Sagnac interferometer into an amplified electrical signal. It works as an analog device, unlike the digital operating mode used in communication systems.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/MEMS inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
PIN-FET Optical Receiver Module Specifications
|
Item |
Value |
||
|
Operating Wavelength Band (nm) |
1290 ~ 1560 |
||
|
Linear Responsivity (V/μW) |
0.72 |
0.36 |
0.18 |
|
Linear Saturation Optical Power (μW) |
≥4 |
≥8 |
≥16 |
|
Linear Minimum Optical Power (μW) |
≤0.03 |
≤0.05 |
≤0.1 |
|
Linearity (%) |
±3 |
||
|
Transimpedance (KΩ) |
800 |
400 |
200 |
|
3 dB Bandwidth (MHz) |
4~10 |
||
|
RMS Noise Voltage (mV) |
≤0.5 |
||
|
Package Type and Dimensions (excl. pins) |
See product drawing |
||
|
Pigtail Type |
SM/PM, φ125μm/80μm,L=1m |
||
|
Operating Temperature (℃) |
-45~+70 |
||
|
Storage Temperature (℃) |
-55~+85 |
||
Outline Drawing
|
S-Type Package |
D-Type Package |
|
F-Type Package |
G-Type Package |
Selection Table
|
Product Code |
Package Type |
Transimpedance |
Output Pigtail |
|
TSXF01 |
8 pins |
200K |
125/250 SM Fiber |
|
TSXH02 |
8 pins |
400k |
125/250 SM Fiber |
|
TFGF02 |
Mini 8 pins |
200K |
80/165 SM Fiber |
|
TFGH01 |
Mini 8 pins |
400k |
80/165 SM Fiber |
|
TGGF02 |
Mini 6 pins |
200K |
80/165 SM Fiber |
|
TDXJ02 |
14 pins |
800k |
125/250 SM Fiber |
