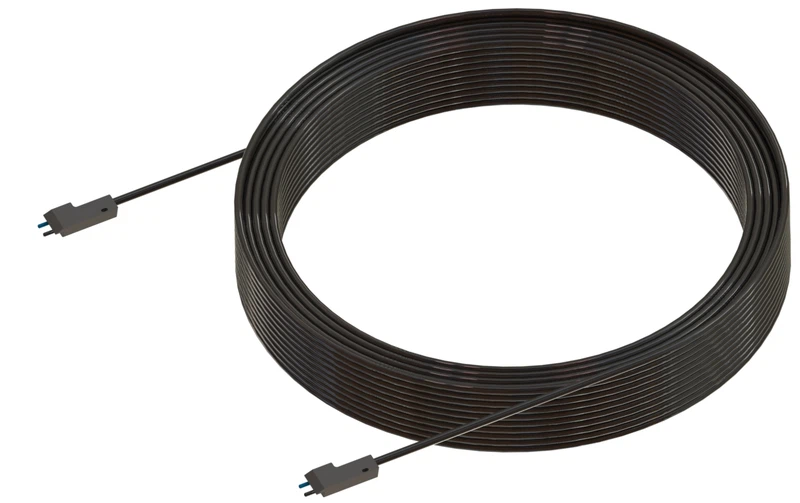

V-Pin Wind Cable Connector Assembly



V-PIN industrial control optical fiber patch cord uses HPCF200/230 optical fiber, which has low loss and excellent broadband performance. It is also strong and easy to operate. V-PIN connectors can be easily installed on site, efficiently and quickly. Mainly used in BACHMANN wind turbine fiber optic communication systems, between wind turbines, engine control and tower bottom control.



●OFS products use V-PIN 200/230 fiber optic ferrules to provide high standards of splicing loss.
●HPCF 200/230um TPU outer-sheathed optical cable has excellent bending and tensile properties.
●Waterproof, dustproof, and meets IP67 usage environment.
●Using push-pull bayonet connection method, the connection is stable and reliable





● BACHMANN fan fiber optic communication system
● Industrial control type V-Pin optical fiber communication





Connector insertion loss	≤1.0dB@850nm/each connector
Component tensile strength	100N,1min
Protection level	IP67
Optical cable diameter	7.5mm
Optical cable loss	8.0dB/km@850nm
Sheath material	TPU
Optical cable length	1-120m
Fiber type	HPCF 200/230
Optical cable tensile strength	Short term: 600N Regular term: 200N
Operating temperature	-40℃～85℃





• Tailored for Wind Turbine Reliability

Our V - PIN patch cords use HPCF200/230 fiber, ensuring low loss (8.0dB/km@850nm) and excellent broadband performance. Designed for BACHMANN wind turbine systems, they handle harsh environments (IP67) with TPU sheathing-resisting water, dust, and mechanical stress in turbine - to - control communications.

• Easy & Stable Installation

The push - pull bayonet connectors enable quick, on - site installation. With low insertion loss (≤1.0dB@850nm per connector) and high tensile strength (100N, 1min), they ensure stable, long - term operation-minimizing downtime in critical wind energy systems.

• Custom & Compliant Solutions

We offer 1 - 120m cables, TPU sheathing, and meet IP67 standards. Whether for BACHMANN turbines or industrial V - PIN networks, our products align with your length, strength, and environmental needs. Compliant with industrial specs, we ensure regulatory and performance reliability.



If you are interested in the product, contact us. Let's ensure your systems run efficiently, safely, and compliantly-no matter the environment!
