Quartz Accelerometers
High-temperature resistant
Vibration/shock resistant
Compact, lightweight
Description
Key Features
- High-temperature resistant
- Vibration/shock resistant
- Compact, lightweight
Applications
- Aerospace
- High-precision navigation
- Slope measurement
- Oil drilling
- Geological exploration
Product Introduction

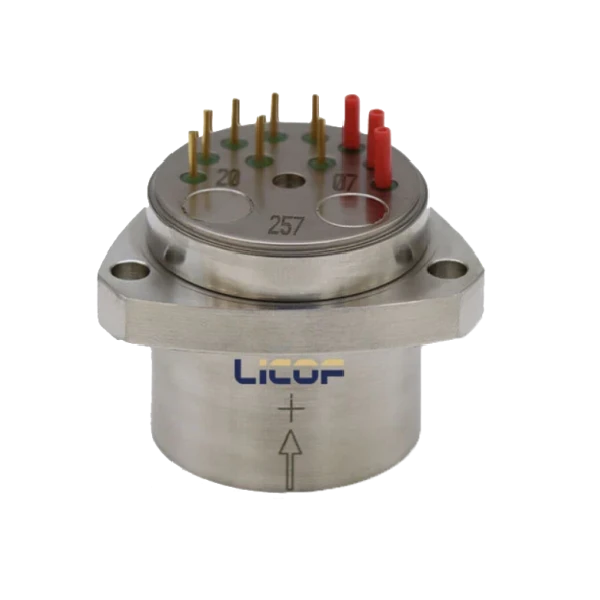

Company's Quartz Accelerometer is a high-performance single-axis torque-feedback sensor built on an advanced quartz flexure structure with closed-loop servo technology. It precisely detects external acceleration and outputs a proportional current signal via a high-precision demodulation circuit. Designed for extreme environments, it delivers superior high-temperature, vibration, and shock resistance. Widely deployed in aerospace high-precision navigation, oil drilling inclination measurement, and geological exploration, it provides reliable, accurate measurement under complex operating conditions.
Unique Technology
Company is a high-tech enterprise with full closed-loop capabilities from fiber winding equipment and coils to FOGs, fiber/Quartz Accelerometer inertial products, IMU circuits, software, and test equipment. End-to-end process control improves quality and reduces costs. Operating under ISO9001 with strict processes, it ensures product reliability and consistency.
Parameters
Quartz Accelerometer (High-Temp Shock-Resistant Large Size) Specifications
|
Parameter |
Specifications |
||
|
Model |
T180 |
T150 |
T125 |
|
Range (g) |
≥±30 |
≥±30 |
≥±30 |
|
Bias (mg) |
≤±10 |
≤±7 |
≤±7 |
|
Bias Stability (µg) |
≤150 (1 day) |
≤100 (1 day) |
≤80 (1 day) |
|
Bias Temp Coeff (µg/ºC) |
≤±200 |
≤±150 |
≤±100 |
|
Scale Factor (mA/g) |
1.0～3.0 |
1.0～3.0 |
1.0～3.0 |
|
SF Stability (ppm) |
≤200 (1 day) |
≤150 (1 day) |
≤100 (1 day) |
|
SF Temp Coeff (ppm/ºC) |
≤±300 |
≤±200 |
≤±100 |
|
2nd-Order NL (µg/g2) |
≤±50 |
≤±50 |
≤±50 |
|
2nd-Order NL Stability (µg/g2) |
≤30 (1 day) |
≤30 (1 day) |
≤30 (1 day) |
|
Threshold/Resolution (µg) |
＜20 |
＜20 |
＜20 |
|
Noise (µA) |
＜15 |
＜15 |
＜15 |
|
Bandwidth (Hz) |
≥350 |
≥350 |
≥350 |
|
Mounting Angle (µrad) |
≤±200 |
≤±200 |
≤±200 |
|
MA Stability (µrad) |
≤±80 |
≤±80 |
≤±80 |
|
Operating Environment |
|||
|
Operating Temp Range (ºC) |
－45～＋180 |
－45～＋150 |
－45～＋125 |
|
Shock (g) |
1000 |
1000 |
1000 |
|
Vibration (g) |
20 |
20 |
20 |
|
Low Pressure (133pa, 10min) |
＜5% |
＜5% |
＜5% |
|
Power Supply |
|||
|
Supply Voltage (VDC) |
±7～±18 |
±7～±18 |
±7～±18 |
|
Current Consumption (mA) |
≤±20 |
≤±20 |
≤±20 |
|
Power (mW) |
≤480 |
≤480 |
≤480 |
|
Insulation Resistance (MΩ) |
≥100 |
≥100 |
≥100 |
|
Physical Specifications |
|||
|
Weight (g) |
≤60 |
≤60 |
≤60 |
|
Dimensions (mm) |
Φ25×23 |
Φ25×23 |
Φ25×23 |
|
Housing Material |
321 Stainless Steel |
321 Stainless Steel |
321 Stainless Steel |
Quartz Accelerometer (High-Temp Shock-Resistant Small Size) Specifications
|
Parameter |
Specifications |
||
|
Model |
T180 |
T150 |
T125 |
|
Range (g) |
≥±30 |
≥±30 |
≥±30 |
|
Bias (mg) |
≤±15 |
≤±10 |
≤±7 |
|
Bias Stability (µg) |
≤200 (1 day) |
≤150 (1 day) |
≤100 (1 day) |
|
Bias Temp Coeff (µg/ºC) |
≤±200 |
≤±150 |
≤±100 |
|
Scale Factor (mA/g) |
1.0～1.5 |
1.0～1.5 |
1.0～1.5 |
|
SF Stability (ppm) |
≤200 (1 day) |
≤150 (1 day) |
≤100 (1 day) |
|
SF Temp Coeff (ppm/ºC) |
≤±300 |
≤±200 |
≤±100 |
|
2nd-Order NL (µg/g2) |
≤±50 |
≤±50 |
≤±50 |
|
2nd-Order NL Stability (µg/g2) |
≤30 (1 day) |
≤30 (1 day) |
≤30 (1 day) |
|
Threshold/Resolution (µg) |
＜20 |
＜20 |
＜20 |
|
Noise (µA) |
＜15 |
＜15 |
＜15 |
|
Bandwidth (Hz) |
≥350 |
≥350 |
≥350 |
|
Mounting Angle (µrad) |
≤±200 |
≤±200 |
≤±200 |
|
Mounting Angle Stability (µrad) |
≤±80 |
≤±80 |
≤±80 |
|
Operating Environment |
|||
|
Operating Temp Range (ºC) |
－45～＋180 |
－45～＋150 |
－45～＋125 |
|
Shock (g) |
1000 |
1000 |
1000 |
|
Vibration (g) |
20 |
20 |
20 |
|
Low Pressure (133 Pa, 10 min) |
＜5% |
＜5% |
＜5% |
|
Power Supply |
|||
|
Supply Voltage (VDC) |
±7～±18 |
±7～±18 |
±7～±18 |
|
Current Consumption (mA) |
≤±16 |
≤±16 |
≤±16 |
|
Power (mW) |
≤480 |
≤480 |
≤480 |
|
Insulation Resistance (MΩ) |
≥100 |
≥100 |
≥100 |
|
Physical Specifications |
|||
|
Weight (g) |
≤25 |
≤25 |
≤25 |
|
Dimensions (mm) |
Φ18.2×17.6 |
Φ18.2×17.6 |
Φ18.2×17.6 |
|
Housing Material |
321 Stainless Steel |
321 Stainless Steel |
321 Stainless Steel |
Quartz Accelerometer (High-Precision) Specifications
|
Parameter |
Specifications |
|||
|
Model |
H10 |
H20 |
H30 |
|
|
Range (g) |
±60 |
±60 |
±60 |
|
|
Null Bias (mg) |
≤4 |
≤4 |
≤4 |
|
|
Bias Monthly Repeat. (μg, 1σ, 55°C) |
≤15 |
≤10 |
≤5 |
|
|
Bias Yearly Repeat. (μg, 1σ, 55°C) |
≤45 |
≤30 |
≤15 |
|
|
Bias Temp Coeff (μg/ºC) |
≤30 |
≤25 |
≤15 |
|
|
Scale Factor (mA/g) |
1.00 to 1.25 |
1.00 to 1.25 |
1.00 to 1.25 |
|
|
SF Monthly Repeatability (ppm, 1σ, 55°C) |
≤15 |
≤10 |
≤5 |
|
|
SF Yearly Repeatability (ppm, 1σ, 55°C) |
≤45 |
≤30 |
≤15 |
|
|
SF Temp Coeff (ppm/ºC) |
≤30 |
≤25 |
≤20 |
|
|
Misalignment Angle (μrad) |
≤2000 |
≤2000 |
≤1000 |
|
|
MA Monthly Repeatability (μrad, 1σ, 55°C) |
≤30 |
≤20 |
≤10 |
|
|
MA Yearly Repeatability (μrad, 1σ, 55°C) |
≤80 |
≤50 |
≤30 |
|
|
MA Temp Coeff (μrad/ºC) |
≤4 |
≤4 |
≤4 |
|
|
2nd-Order NL (μg/g²) |
≤10 |
≤10 |
≤10 |
|
|
VRE (μg/g²rms) |
50-500 Hz |
≤40 |
≤40 |
≤20 |
|
500-2 kHz |
≤150 |
≤60 |
≤60 |
|
|
Inherent Noise (μg-rms) |
0-10 Hz |
≤7 |
≤7 |
≤7 |
|
10-500 Hz |
≤70 |
≤70 |
≤70 |
|
|
500-10 kHz |
≤1,500 |
≤1,500 |
≤1,500 |
|
|
Operating Environment |
||||
|
Operating Temp (ºC) |
-55 to +95 |
-55 to +95 |
-55 to +95 |
|
|
Shock, Half-Sine (g, ms) |
250 , 4 |
250 , 4 |
250 , 4 |
|
|
Sine Vibration (g, @20-2 kHz) |
15 |
15 |
15 |
|
|
Resolution/Threshold (μg) |
≤1 |
≤1 |
≤1 |
|
|
Bandwidth (Hz) |
≥800 |
≥800 |
≥800 |
|
|
Temperature Sensor |
||||
|
AD590 |
Yes |
Yes |
Yes |
|
|
Electrical Specifications |
||||
|
Quiescent Current (mA) |
≤16 |
≤16 |
≤16 |
|
|
Rated Power (±15V DC, mW) |
≤250 |
≤250 |
≤250 |
|
|
DC Supply (V DC) |
±13 ~ ±28 |
±13 ~ ±28 |
±13 ~ ±28 |
|
|
Appearance & Weight |
||||
|
Weight (g) |
70 ±2 |
70 ±2 |
70 ±2 |
|
|
Dia. Below Mount (mm Max) |
Ø25.4 |
Ø25.4 |
Ø25.4 |
|
|
Height Below Mount (mm Max) |
14.8 |
14.8 |
14.8 |
|
|
Housing Material |
300 Series Stainless Steel |
300 Series Stainless Steel |
300 Series Stainless Steel |
|
Quartz Accelerometer (Standard) Specifications
|
Parameter |
Specifications |
||||
|
Model |
S60A |
S60B |
S60C |
S60 |
|
|
Range (g) |
-60～+60 |
-60～+60 |
-60～+60 |
-60～+60 |
|
|
Bias (mg) |
≤|±3| |
≤|±5| |
≤|±10| |
≤|±5| |
|
|
Scale Factor (mA/g) |
1±0.25 |
1±0.25 |
1±0.25 |
0.9±0.25 |
|
|
2nd-Order NL (μg/g2 ,0～±30g) |
≤|±10| |
≤|±10| |
≤|±20| |
≤|±10| |
|
|
Bias Monthly Repeat. (μg, 1σ) |
≤10 |
≤30 |
≤80 |
≤30 |
|
|
SF Monthly Repeatability (ppm, 1σ) |
≤10 |
≤30 |
≤80 |
≤30 |
|
|
2nd-Order NL Month Repeat. (μg/g2 ,1σ) |
≤8 |
≤15 |
≤20 |
≤15 |
|
|
Bias Temp Coeff (μg/°C ,-40～+55°C) |
≤|±10| |
≤|±30| |
≤|±80| |
≤|±30| |
|
|
SF Temp Coeff (ppm/°C, -40 to +55°C) |
|±10| |
|±30| |
|±80| |
|±30| |
|
|
Misalignment (", gate/pendulum) |
≤|±100| |
≤|±100| |
≤|±100| |
≤|±100| |
|
|
Resolution (μg) |
≤|±5| |
≤|±5| |
≤|±5| |
≤|±5| |
|
|
Noise (μA) |
≤10 |
≤10 |
≤10 |
≤10 |
|
|
Quiescent Current (mA) |
≤|±20| |
≤|±20| |
≤|±20| |
≤|±20| |
|
|
Dynamic (%) |
≤38% |
≤38 |
≤38 |
≤38 |
≤38 |
|
Parameter (times) |
≤3 times |
≤3 |
≤3 |
≤3 |
≤3 |
|
Natural Frequency (Hz) |
≥400Hz |
≥400 |
≥400 |
≥400 |
≥400 |
|
Bandwidth (Hz) |
≥800Hz |
≥800 |
≥800 |
≥800 |
≥700 |
|
Insulation Resistance |
≥100 |
≥100 |
≥100 |
≥100 |
|
|
Weight |
≤80 |
≤80 |
≤80 |
≤30 |
|
|
Dimensions |
Φ25.4×31 |
Φ25.4×31 |
Φ25.4×31 |
Φ18.2*23 |
|
|
Shock (1/2 sin, 11 ms) |
100g, 3 axes, 2 per axis |
||||
|
Vibration (Random) |
12.2g3 axes, per axis3min |
||||
|
Operating Temp Range |
-40°C～+85°C |
||||
|
Power Voltage |
±15DVC |
||||
