The Most Comprehensive Summary of Fiber Optic Connector Types

1. What is an optical fiber connector?
A fiber optic connector is a device used to connect optical fibers, which allows optical signals to be transmitted between optical fibers. Optical fiber connectors are mainly used in optical communications and network systems to ensure effective optical signal transmission and connection reliability. These connectors allow for quick connection and disconnection between optical fibers, making the construction and maintenance of fiber optic networks more flexible and convenient.
The basic principle of an optical fiber connector is to precisely align the ends of two optical fibers through precisely designed ferrules and mechanical structures, so that optical signals can be transmitted between the two optical fibers while minimizing the loss of optical signals. Such connectors typically require highly precise manufacturing and installation to ensure low insertion loss, high signal quality and reliable connection performance.

https://www.zlxkgroup.com/components/outdoor-waterproof-connector-for-communication/odva-outdoor-waterproof-fiber-optic-connector.html

2. Optical fiber connector structure
The construction of fiber optic connectors usually consists of three main components, which are:
2.1 Insert
One of the most critical components in a connector is the ferrule, a small and precise tubular structure usually made of ceramic, metal alloy or plastic. The ferrule's internal channels are used to accommodate the fiber ends, ensuring alignment between fibers and minimizing insertion loss. Ferrule design and manufacturing accuracy are critical to connector performance.
2.2 Alignment sleeve
Alignment sleeves are components used to maintain and ensure precise alignment between two connector ferrules. It is usually an outer sleeve into which the ferrule is nested, ensuring that the axis of the connector ferrule is aligned. Alignment sleeves also help prevent dust and debris from entering the connector.
2.3 Shell
The outer shell is the outer part of the connector that protects the ferrule and alignment sleeve. The housing is usually made of plastic or metal and has a certain structure and shape to ensure that the connector can be properly inserted into the device interface and to provide mechanical support and protection.

These three components work together to ensure the performance and reliability of fiber optic connectors. In the design and manufacture of connectors, precision machining and assembly of these components is critical to ensure that the connector can provide low insertion loss, high return loss and long life performance during use. Various connector types may have some differences in these basic building blocks, but these three main components are generally common.

3. Why are there different connectors?
Different application scenarios and network requirements place different requirements on connectors. For example, in a data center or enterprise network, high-density connectors may be needed to accommodate large amounts of fiber, while in industrial environments more durable connectors may be required.

Single-mode fiber and multi-mode fiber are structurally different, so they require different types of connectors to ensure optimal light transmission performance. Connectors are designed to accommodate specific types of fiber.

The continuous evolution of industry standards and specifications also drives the development of connectors. Different standards may result in different types of connectors to meet the requirements of a specific standard.

Some connectors are designed for specific mechanical requirements or environmental conditions. For example, some connectors may need to be waterproof, dustproof, or vibration-resistant to suit different application environments.

Different manufacturers may introduce new connector designs in an attempt to provide better performance, easier installation, or a more economical solution. This can result in multiple connectors on the market with similar functionality but slightly different designs.

In some cases, specific equipment or network infrastructure may require the use of a specific type of connector. Specific types of connectors may be selected to ensure compatibility and interoperability of devices and systems.

4. Fiber optic connector types
4.1 SC connector

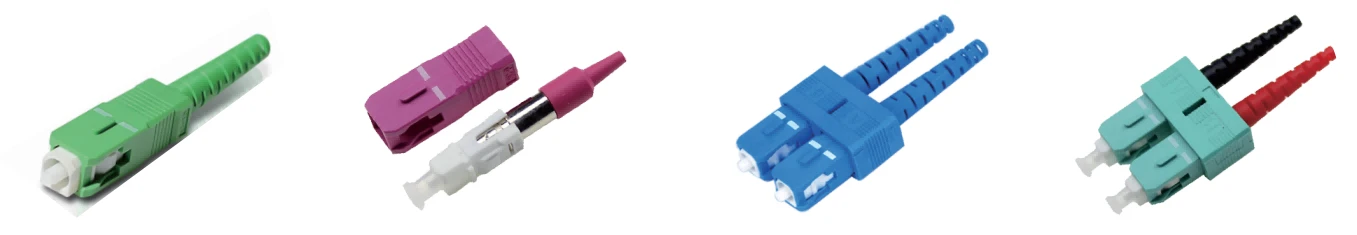

SC connector (Subscriber Connector) is a widely used optical fiber connector. It adopts a square design and can be easily inserted and unplugged. The SC connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. SC connectors are commonly used in datacom and telecommunications applications, including digital, analog and long-distance applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/sc-optical-fiber-active-connector.html

4.2 LC connector

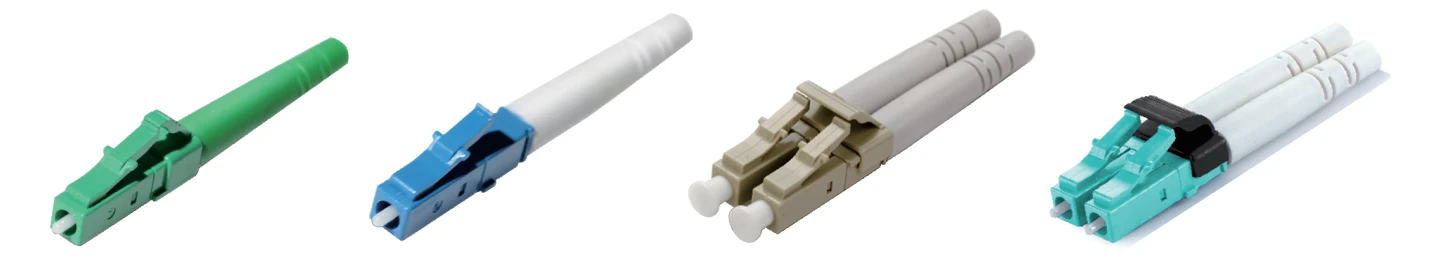

LC connector (Lucent Connector) is another common fiber optic connector. Its design is similar to the RJ-45 connector, so it is also called a "small connector". The design of the LC connector makes it excellent in high-density connection environments because its smaller size allows more connections to be made in a limited space. LC connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/lc-fiber-optic-movable-connector.html

4.3 FC connector

FC connector (Ferrule Connector) is a common fiber optic connector that uses a cylindrical design to provide precise alignment. The design of the FC connector makes it excellent in high-precision connection environments because its smaller size allows more connections to be made in a limited space. FC connectors are commonly used in datacom and telecommunications applications, including digital, analog and long-distance applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/fc-optical-fiber-active-connector.html

4.4 ST connector

ST connector (Straight Tip Connector) is another common fiber optic connector. Its design is similar to BNC connector, so it is also called "large connector". The design of the ST connector makes it perform well in high-density connection environments because its larger size allows more connections to be made in a limited space. ST connectors are commonly used in high-speed networks and fiber-to-the-home (FTTH) applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/st-optical-fiber-active-connector.html

4.5 MPO connector

MPO connector (Multi-fiber Push On) is a multi-fiber push-on connector that can connect and disconnect multiple optical fibers at the same time. It is usually used in high-density optical fiber connection environments. The MPO connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. MPO connectors are commonly used in data centers and high-speed networking applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/12-core-mpo-female-to-mpo-female-multimode.html

4.6 MTP connector
MTP connector (Mechanical Transfer Push On) is a brand of MPO connector, developed by US Conec. It has the same characteristics as the MPO connector, but has been improved in design and manufacturing to provide better performance and reliability. MTP connectors are commonly used in applications that require high performance and reliability, such as data centers and high-speed networks.

4.7 MT-RJ connector

The MT-RJ connector (Mechanical Transfer Registered Jack) is a miniaturized optical fiber connector. Its design is similar to the RJ-45 connector, so it is also called a "miniature connector". The design of the MT-RJ connector makes it perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. MT-RJ connectors are commonly used in high-speed networks and fiber-to-the-home (FTTH) applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/mtrj-fiber-optic-movable-connector.html

4.8 MU connector

MU connector (Miniature Unit) is another common fiber optic connector. Its design is similar to SC connector, but smaller in size, so it is also called "miniature connector". The design of the MU connector makes it perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. MU connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/mu-fiber-optic-active-connector.html

4.9 E2000 connector

The E2000 connector is a high-precision fiber optic connector designed with an automatic dust cover and locking mechanism to provide excellent performance and reliability. The E2000 connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. E2000 connectors are typically used in applications that require high performance and reliability, such as data centers and high-speed networks.

https://www.zlxkgroup.com/components/fiber-connector-for-communication/e2000-fiber-connector.html

4.10 MDC connector
The MDC connector (Miniature Duplex Connector) is a miniaturized optical fiber connector. Its design is similar to the LC connector, but smaller in size, so it is also called a "miniature connector". The MDC connector is designed to perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. MDC connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

4.11 CS connector
CS connector (Compact Small-form-factor) is a miniaturized optical fiber connector. Its design is similar to LC connector, but smaller in size, so it is also called "ultra-small connector". The CS connector is designed to perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. CS connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

4.12 SN connector
The SN connector (Senko Connector) is a high-precision fiber optic connector designed with an automatic dust cover and locking mechanism to provide excellent performance and reliability. The SN connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. SN connectors are commonly used in applications that require high performance and reliability, such as data centers and high-speed networks.

4.13 DIN connector
The DIN connector (Deutsches Institut für Normung) is a common fiber optic connector. Its design is similar to the FC connector, but smaller in size, so it is also called a "miniature connector". The design of the DIN connector makes it excellent in high-density connection environments because its smaller size allows more connections to be made in a limited space. DIN connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

4.14 D4 connector
The D4 connector is a high-precision fiber optic connector designed with an automatic dust cover and locking mechanism to provide excellent performance and reliability. The D4 connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. D4 connectors are commonly used in applications that require high performance and reliability, such as data centers and high-speed networks.

4.15 ESCON connector
ESCON connector (Enterprise Systems Connection) is a common fiber optic connector. Its design is similar to FC connector, but smaller in size, so it is also called a "micro connector". The design of the ESCON connector makes it perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. ESCON connectors are commonly used in high-speed networking and fiber-to-the-home (FTTH) applications.

4.16 FDDI connector
The FDDI connector (Fiber Distributed Data Interface) is a high-precision optical fiber connector. It is designed with an automatic dust cover and locking mechanism to provide excellent performance and reliability. The FDDI connector is designed to perform well in high-density connection environments because its smaller size allows for more connections in a limited space. FDDI connectors are commonly used in applications that require high performance and reliability, such as data centers and high-speed networks.

4.17 SMA connector
SMA connector (SubMiniature version A) is a common fiber optic connector. Its design is similar to FC connector, but smaller in size, so it is also called "miniature connector". The design of the SMA connector makes it perform well in high-density connection environments because its smaller size allows more connections to be made in a limited space. SMA connectors are commonly used in high-speed networks and fiber-to-the-home (FTTH) applications.

https://www.zlxkgroup.com/components/high-power-fiber-connector/sma905-high-power-metal-fiber-optic-connector.html

5.How to choose fiber optic connector type?
Optical fiber connectors play a vital role in optical communications and network systems, directly affecting the transmission quality of optical signals and network performance. Selecting the appropriate fiber optic connector type is a critical step in ensuring stable system operation and superior performance.

Consideration of application requirements
Different application scenarios place different requirements on connectors. In a data center or enterprise network, high-density connectivity is often a critical factor. Therefore, small connectors such as LC or MTP/MPO may be a more suitable choice, which can accommodate more fiber connections in a limited space. On the other hand, if the application requires a stronger connection, such as in an industrial environment, you can choose a connector with a thread locking mechanism, such as FC.

Transmission distance factors
Transmission distance is another key consideration in selecting fiber optic connector type. For applications that require the transmission of optical signals over long distances, such as inter-city communications or large enterprise networks, choosing a connector that supports single-mode fiber, such as SC or LC, is key to ensuring effective transmission of signals over distances.

Network type suitability
Different network types may require different types of connectors. In passive optical networks (PON), SC/APC connectors may be more suitable because they offer higher return loss, which helps prevent signal reflections. In fiber distribution systems that need to support a large number of users, MTP/MPO connectors may be more suitable because they support high port density connections.

Consideration of environmental conditions
Working environment conditions are also a key factor in selecting connector type. In harsh environmental conditions, such as industrial environments, it may be necessary to use connectors with higher dust-proof, waterproof and shock-resistant capabilities, such as FC or ST connectors, to ensure the stability and reliability of the connection.

Device compatibility concerns
Different devices may be designed to be compatible with specific types of connectors. When selecting a connector, compatibility with existing equipment interfaces must be considered. For example, some devices may use LC connectors by default, while others may use SC connectors, so ensure connector consistency in your network design.

Budget and cost balance
Budget and cost are also important considerations in connector selection. In some cases, certain connectors may be relatively affordable, but there may be some differences in performance and reliability. Therefore, it is necessary to make a wise choice within an acceptable budget while meeting performance requirements.

Optimization of network topology
The design of the network topology also affects connector selection. If the network needs to support a large number of fiber optic connections, such as in a data center or supercomputer, MTP/MPO connectors may be a better choice because they support high port density connections and reduce physical space requirements.

When selecting a fiber optic connector type, multiple factors such as application requirements, transmission distance, network type, environmental conditions, equipment compatibility, budget, and network topology need to be fully considered. By carefully weighing these factors, you can ensure that the connector you choose provides the best performance and reliability for your specific scenario. In actual applications, some testing and verification may be required to ensure that the selected connector meets expected performance and reliability standards.
